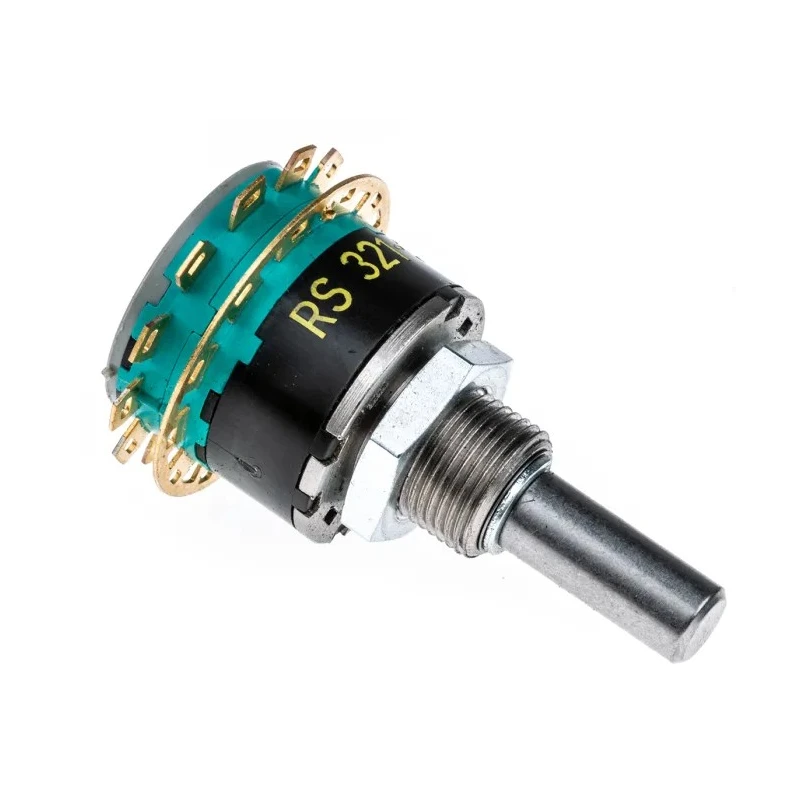

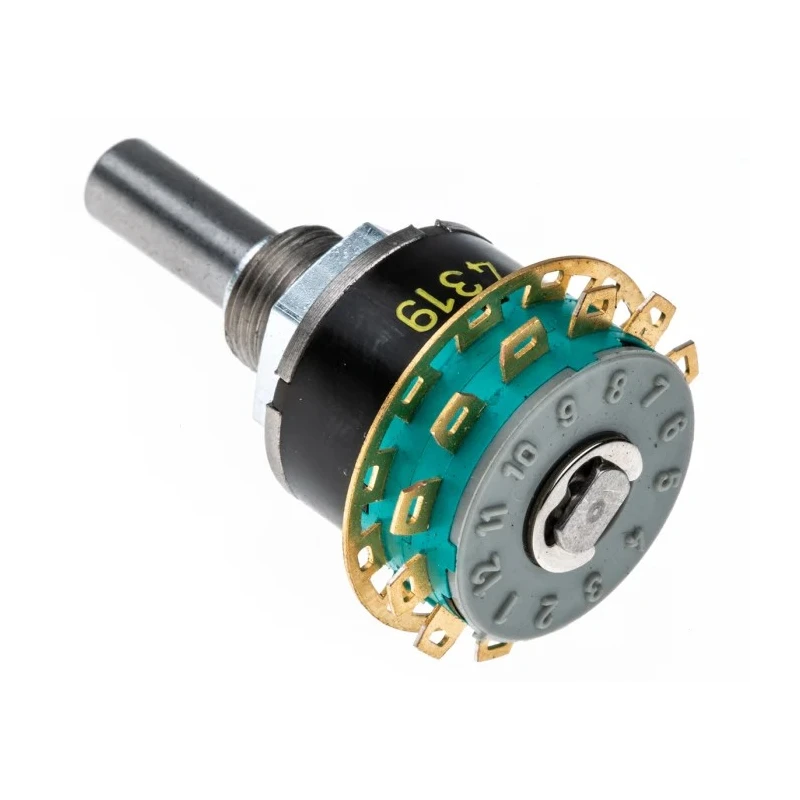

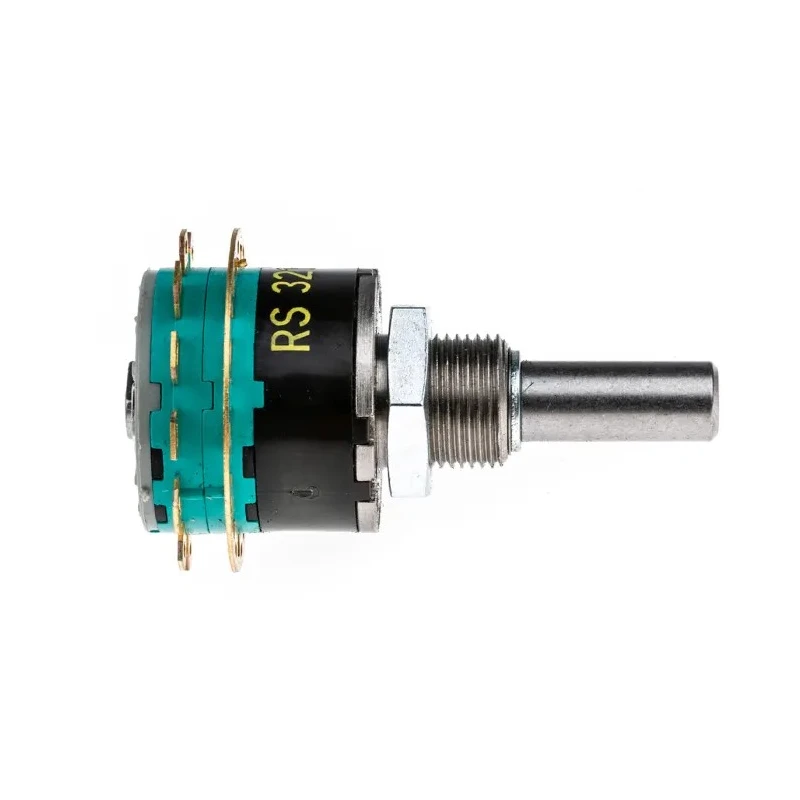

NSF GX 12 Position SP12T Rotary Switch 250mA Solder Terminal Germany SP12T

The NSF SP12T is a high-quality rotary switch designed for precise and reliable electrical switching applications. Featuring 12 selectable positions and single-pole contact configuration (SP12T), it supports a contact current rating of 250mA and a maximum AC voltage of 125V, making it suitable for low-power control circuits and signal switching.

Constructed with a durable Diallyl Phthalate polymer housing, this rotary wafer switch is enclosed to protect internal wafers and contacts, enhancing durability in industrial environments. The switch is designed for panel mounting, providing secure installation and ease of access in electrical cabinets or control panels.

Its operating temperature range from -40°C to 85°C ensures dependable performance in various conditions including industrial, laboratory, and automation systems. The contact material is gold, allowing for stable contact resistance and corrosive-resistant operation. The switch mechanism includes a 30° indexing, facilitating precise and tactile position changes.

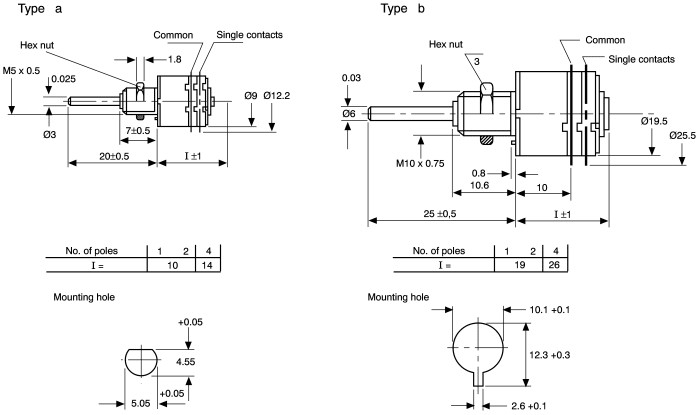

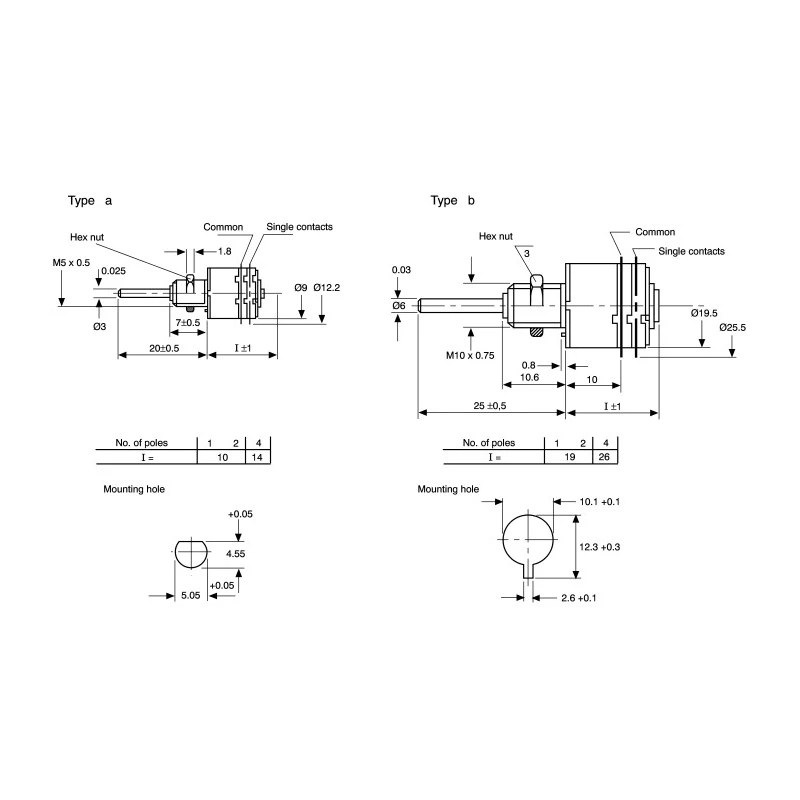

This non-illuminated rotary switch features a 60-degree angle of throw and a compact form factor with dimensions: 44mm height, 25.5mm diameter, and 20.6mm depth, fitting compact designs and space-constrained applications.

The NSF SP12T rotary switch boasts a mechanical life of 25,000 operations, ensuring longevity and reliability for demanding industrial and electrical control uses. It meets RoHS standards to comply with environmental and safety regulations.

Ideal for use in industrial automation, electrical control systems, instrumentation, and laboratory equipment, this rotary switch provides precise position selection and robust performance. Its solder terminal type ensures secure and reliable electrical connections.

Constructed with robust Diallyl Phthalate housing ensuring durability. Single-pole switch suitable for panel mount applications. Operates reliably over temperature range from -40°C to 85°C. Supports a maximum AC voltage of 125V and features solder terminal type.

Mechanical life rated for 25,000 operations providing extended service. Compact dimensions include 25.5mm diameter and 44mm height with 20.6mm depth. Complies with RoHS standards guaranteeing environmental compliance. Non-illuminated rotary wafer switch with 60-degree angle of throw and gold contact material.

Explore matching accessories and other NSF Rotary Switch models in the EnvMart catalog for comprehensive electrical switching solutions.
