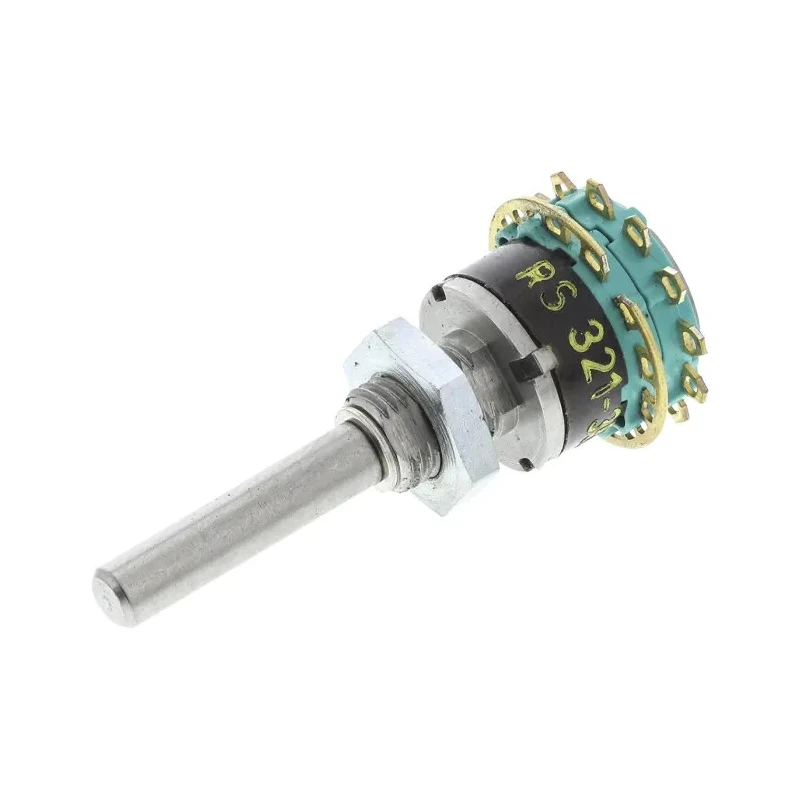

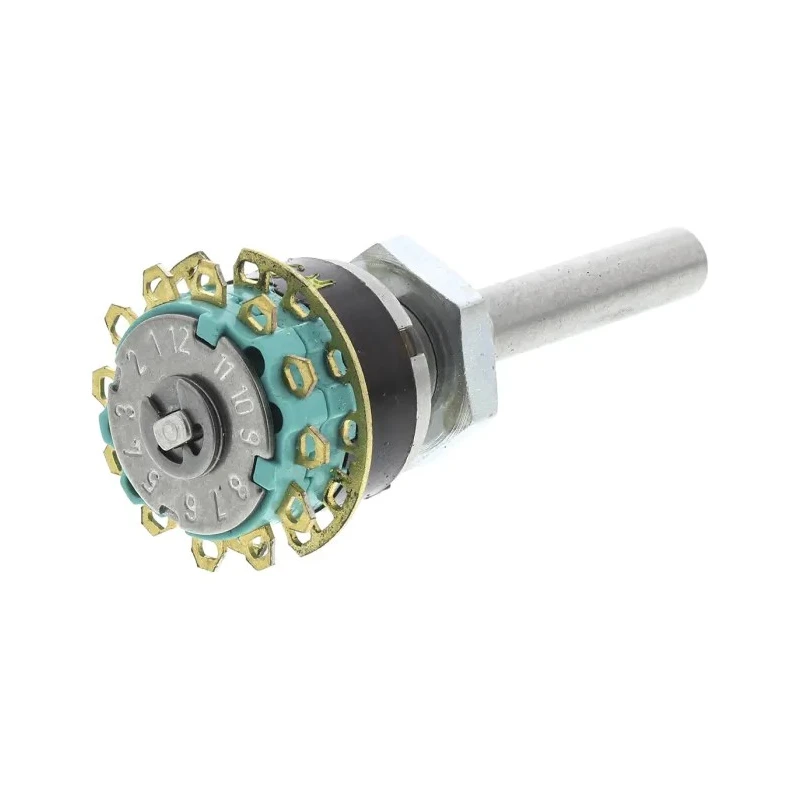

NSF MY Shorting 6 Position DP6T Rotary Switch, 1.5A, Solder Terminal, Diallyl Phthalate Housing DP6T
Specifications
| Country of Origin | Germany |
|---|---|
| Diameter | 12.2mm |
| Brand | NSF |
| Height | 37mm |
| Model | DP6T |
| Depth | 20.6mm |
| Width | 24.3mm |
| Mount Type | Panel |
| Housing Material | Diallyl Phthalate |
| Series | MY Shorting |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP6T |
| Number of Positions | 6 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Maximum dc Voltage | 30V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 1.5A |
| Mechanical Life | 25000Operations |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 30 ° |
| Lorlin CK, 6 Position DPST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- The switch features a durable diallyl phthalate polymer housing for electrical insulation.
- It supports two poles and six positions with gold contact material ensuring low resistance performance.
- Maximum operating voltage is 250V AC and 30V DC for versatile electrical applications.
- Mechanical life rating is 25,000 operations with a 30° indexing angle for precise control.
- Operating temperature range spans from -40°C to 85°C to withstand various environmental conditions.
- The rotary wafer switch has a compact form factor with a 37mm height and 24.3mm width.
- Terminal type is solder, facilitating secure and stable circuit connections.
- Suitable for industrial, electrical, and automation equipment requiring robust switching solutions.
Product Description
NSF DP6T Rotary Switch is a high-quality 6 position rotary wafer switch designed for electrical panel mounting and automation control.
It features a diallyl phthalate housing providing excellent electrical insulation and mechanical strength. The switch supports a double-pole, six-position contact configuration with gold-plated contacts that minimize resistance and enhance reliability.
The switch contact current rating is 1.5A, allowing operation with a maximum AC voltage of 250V and DC voltage of 30V. This makes it suitable for low to moderate power rotary switching tasks.
Designed to handle industrial temperature ranges from -40°C to 85°C, the switch maintains performance under harsh environmental conditions. It offers a mechanical life of 25,000 operations with a 30-degree indexing angle for precise step selection.

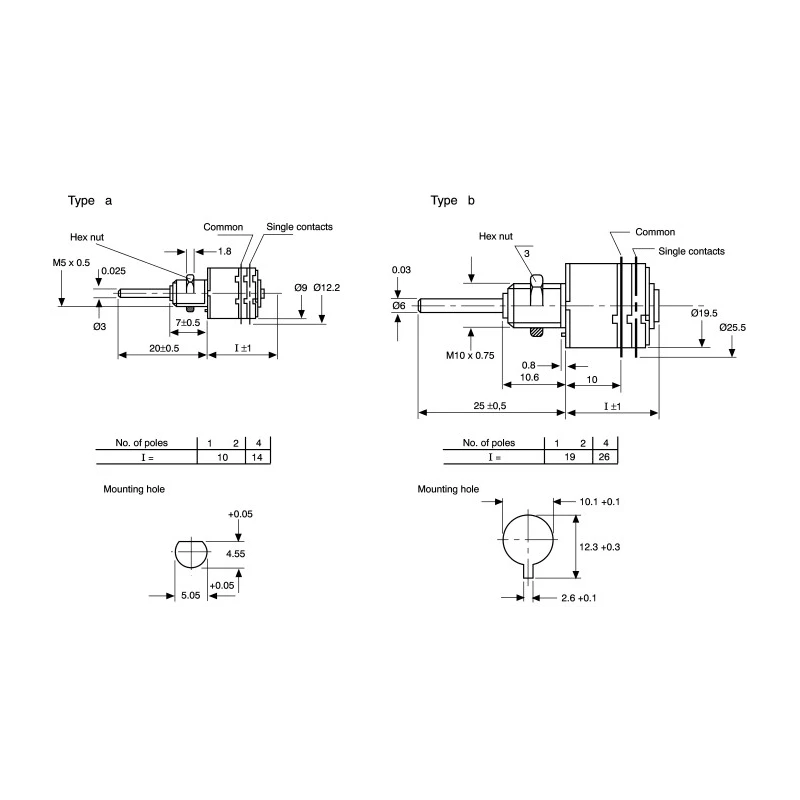

The compact dimensions with a height of 37mm, width of 24.3mm, depth of 20.6mm, and 12.2mm diameter ensure easy integration into panel assemblies where space is limited. The panel mount installation type and solder terminal connection facilitate reliable mounting and electrical contacts.
Durable diallyl phthalate polymer housing for robust electrical insulation. Gold contact material with DP6T double-pole six-position configuration. Maximum contact current of 1.5A with voltages up to 250V AC and 30V DC. Mechanical life of 25,000 operations with 30° indexing for precise switching.
Operating temperature range from -40°C to 85°C for varied environments. Compact design with panel mount and solder terminal type. Ideal for use in industrial, electrical, automation, and control systems. Originating from Germany, this rotary switch meets RoHS standards ensuring compliance with environmental regulations.
Browse the Electronics & Electricals category at EnvMart for more Rotary Switch options and advanced electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 250V AC and 30V DC, making it suitable for various electrical applications.
This switch has a mechanical life rating of 25,000 operations, ensuring longevity in its usage.
The contact current rating for this model is 1.5A, allowing it to handle low to moderate power switching tasks.
The switch has a height of 37mm, width of 24.3mm, depth of 20.6mm, and a diameter of 12.2mm, making it compact for panel mounting.
The operating temperature range for this model spans from -40°C to 85°C, allowing it to perform in various environmental conditions.
This unit features a solder terminal type, facilitating secure and stable circuit connections.
The angle of throw for this rotary switch is 30°, providing precise control during operation.
The housing of this model is made from diallyl phthalate, which provides excellent electrical insulation and mechanical strength.
Yes, this switch meets RoHS standards, ensuring compliance with environmental regulations.
This rotary switch supports a double-pole, six-position contact configuration, allowing for versatile switching options.
This model is suitable for use in industrial, electrical, automation, and control systems that require robust switching solutions.
The switch originates from Germany, reflecting its quality and manufacturing standards.
