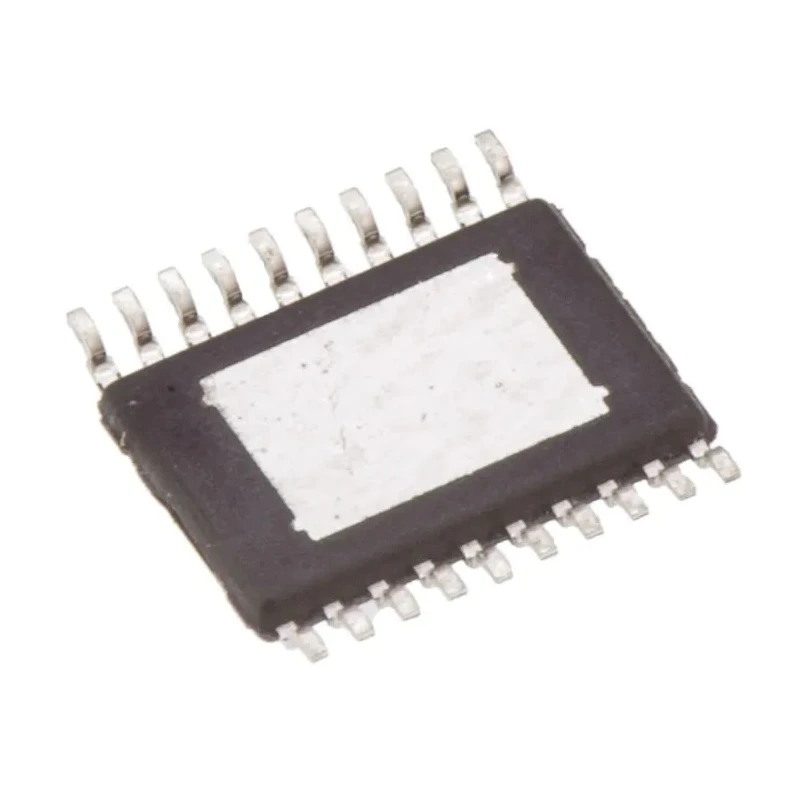

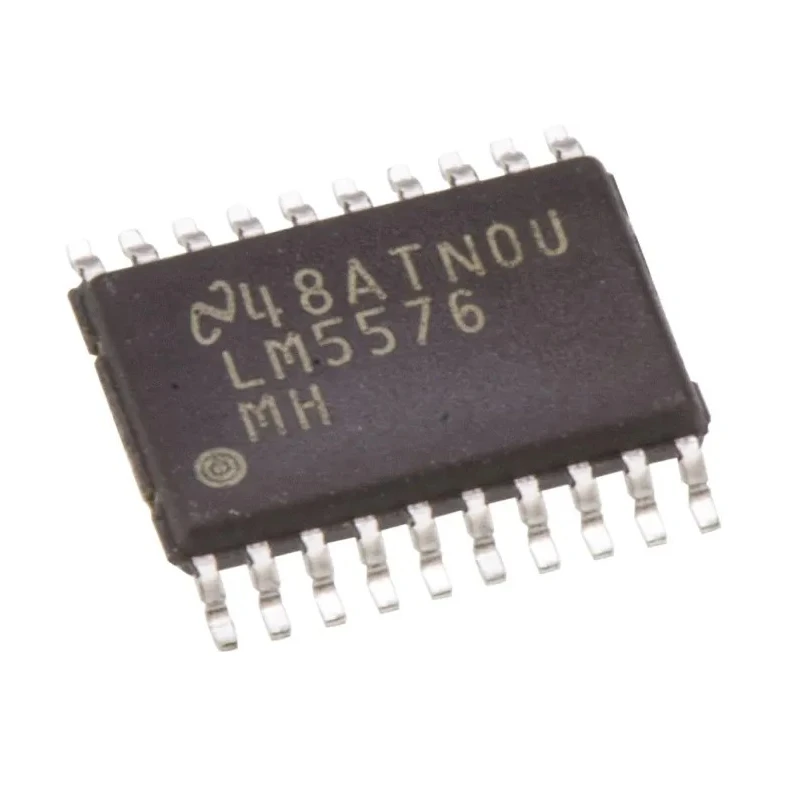

Texas Instruments SIMPLE SWITCHER® Buck Converter, Surface Mount, Output Voltage 3V, Output Current 3A, Model LM5576MH/NOPB

Name: Texas Instruments SIMPLE SWITCHER® Buck Converter, Surface Mount, Output Voltage 3V, Output Current 3A, Model LM5576MH/NOPB
Brand: Texas Instruments
SKU: 116917
Price: 9.85 USD
Availability: InStock



Category DC/DC Converter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Voltage	Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 3V
Brand	Texas Instruments
Efficiency	92%
Length	6.5mm
Model	LM5576MH/NOPB
Depth	1.2mm
Width	4.4mm
Mount Type	Surface
Series	LM5576
Output Current	3A
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	75V
Line Regulation	0.02 %/V
Standards/Approvals	REACH, RoHS, ESDA, JEDEC, ANSI
Minimum Input Voltage	6V
Number of Pins	20
Output Voltage 1	3V
Output Voltage 2	24V

Key Features

Features integrated N-channel MOSFET for efficient switching performance.
Supports ultra-wide input voltage range up to 75V for versatile power supply designs.
Adjustable output voltage as low as 1.225V with 1.5% feedback reference accuracy.
Operating frequency adjustable between 50kHz and 500kHz via a single resistor.
High efficiency up to 92% ensures low power loss and thermal dissipation.
Wide operating temperature range from -40°C to 125°C for reliable industrial use.
Compact TSSOP package with 20 pins, measuring 6.5mm x 4.4mm x 1.2mm (LxWxD).
Line regulation of 0.02 %/V maintains output stability under varying input conditions.

Product Description

Texas Instruments LM5576MH/NOPB SIMPLE SWITCHER® buck converter is a high-performance, surface mount voltage regulator optimized for industrial and commercial power supply applications.

This device incorporates an integrated N-channel MOSFET and supports a wide input voltage range up to 75V, making it suitable for robust DC/DC step-down conversion across diverse systems.

The output voltage is adjustable down to 1.225V with excellent feedback accuracy of 1.5%, allowing precise voltage regulation for sensitive electronics.

Operating frequency is user configurable between 50kHz and 500kHz with a single resistor, offering flexibility for electromagnetic interference management and component optimization.

The LM5576MH/NOPB delivers up to 3A output current with efficiency reaching 92%, reducing energy waste and heat output. Its line regulation of 0.02 %/V guarantees performance stability with voltage variations.

Operating temperature range from -40°C to 125°C supports reliable use in harsh industrial environments. The compact TSSOP 20-pin package measures 6.5mm x 4.4mm x 1.2mm, ideal for space-constrained designs.

This buck converter complies with international quality and environmental standards including REACH, RoHS, ESDA, JEDEC, and ANSI, ensuring dependable and eco-friendly operation. Features integrated N-channel MOSFET for efficient switching performance.

Supports ultra-wide input voltage range up to 75V for versatile power supply designs. Adjustable output voltage as low as 1.225V with 1.5% feedback reference accuracy. Operating frequency adjustable between 50kHz and 500kHz via a single resistor.

High efficiency up to 92% ensures low power loss and thermal dissipation. Wide operating temperature range from -40°C to 125°C for reliable industrial use. Compact TSSOP package with 20 pins, measuring 6.5mm x 4.4mm x 1.2mm (LxWxD).

Line regulation of 0.02 %/V maintains output stability under varying input conditions. Complies with REACH, RoHS, ESDA, JEDEC, and ANSI standards for quality and safety.

This device is widely used in industrial, electronic components, power supply, telecommunications, and manufacturing applications requiring reliable and efficient DC/DC voltage conversion.

Explore more products from Texas Instruments and similar high-quality DC-DC converters on EnvMart, your trusted industrial components platform.

Explore more products in our DC/DC Converter category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum input voltage for the LM5576MH/NOPB is 75V.

This buck converter has an output current rating of 3A.

The output voltage can be adjusted down to as low as 1.225V.

It has an efficiency rating of up to 92%.

The dimensions of the TSSOP package are 6.5mm x 4.4mm x 1.2mm (LxWxD).

The operating temperature range is from -40°C to 125°C.

The line regulation is 0.02 %/V, which maintains output stability under varying input conditions.

The operating frequency is adjustable between 50kHz and 500kHz via a single resistor.

This device complies with REACH, RoHS, ESDA, JEDEC, and ANSI standards.

The LM5576MH/NOPB has 20 pins.

The minimum input voltage required for operation is 6V.

It is suitable for industrial, electronic components, power supply, telecommunications, and manufacturing applications requiring reliable DC/DC voltage conversion.
