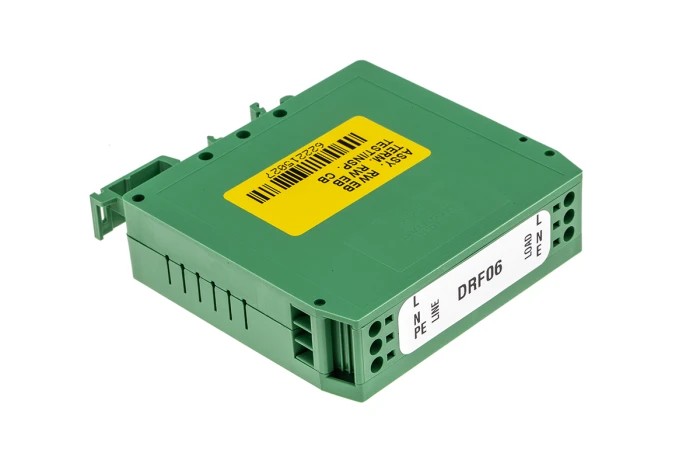

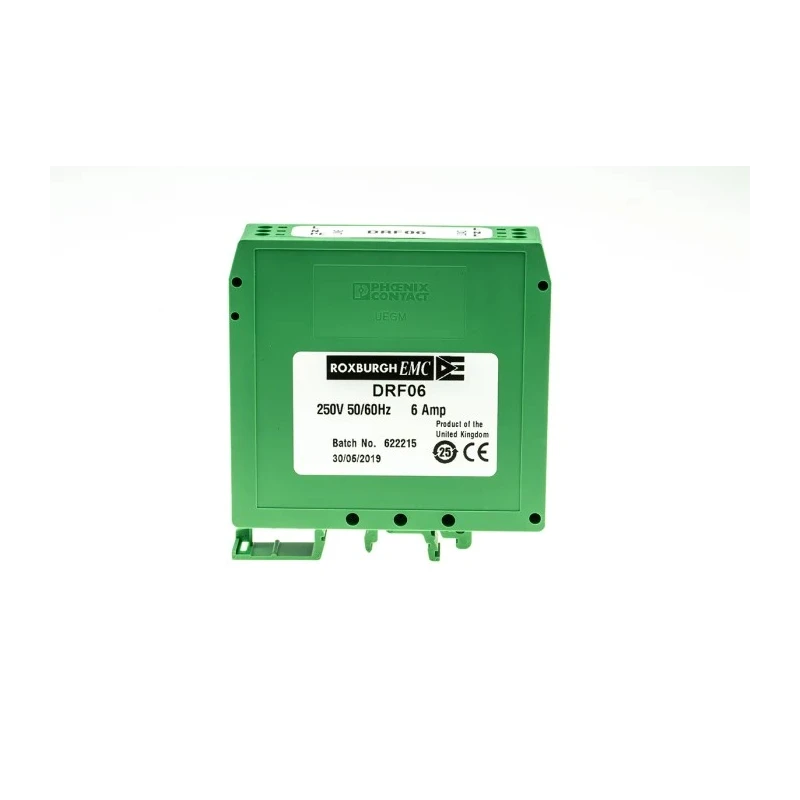

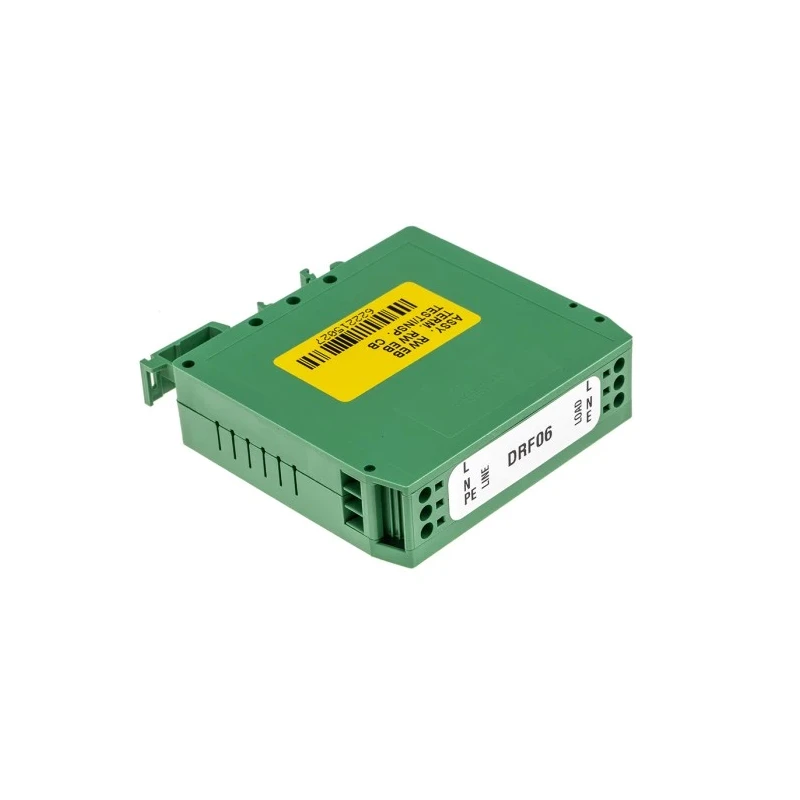

Roxburgh EMC DIN Rail RFI Filter 6A 250V AC 0-440Hz Screw Termination Single Phase DRF06
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Roxburgh EMC |
| Height | 93mm |
| Length | 80mm |
| Model | DRF06 |
| Depth | 22.5mm |
| Mount Type | DIN Rail |
| Operating Frequency | 0, 440Hz |
| Series | DRF |
| Maximum Operating Temperature | 85°C |
| Resistance | 19mΩ |
| Capacitance | 1μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 1.46mA |
| Maximum Voltage | 250V ac |
| Inductance | 1.4mH |
| Standards/Approvals | EN 60939 |
| Termination Style | Screw |
| Power Loss | 0.68W |
| Roxburgh EMC, DRF 3 A 250V ac 440Hz, DIN Rail RFI Filter, Screw 1 PhaseBrand | Roxburgh EMC |
| Block, HFE 156 6 A 250V ac 50Hz, 60 Hz, DIN Rail RFI Filter, Tab 1 PhaseBrand | Block |
Key Features
- Compact DIN Rail mount suitable for industrial and control panel use.
- Screw termination style ensures secure and reliable electrical connection.
- Effective spike and surge protection for power line filtering.
- Operating temperature range from -25°C to 85°C enables robust performance in harsh environments.
- Low power loss of 0.68W enhances energy efficiency.
- Provides filtering between 150 kHz to 30 MHz to reduce electromagnetic interference.
- Compliant with EN 60939 standards ensuring quality and safety.
- Manufactured in the United Kingdom for reliable industrial grade quality.
Product Description
Roxburgh EMC DRF06 DIN Rail RFI Filter is designed for single phase electrical lines, providing robust EMI and RFI filtering capabilities with a maximum current rating of 6A and voltage rating of 250V AC. Operating efficiently in frequency ranges from 0 Hz up to 440 Hz, this filter uses screw-style terminations and mounts easily on standard DIN rails, making it ideal for industrial automation, control panels, and electronic components protection.
This RFI filter offers effective spike and surge suppression, improving electrical noise reduction in industrial and commercial applications. Its capacitance of 1μF and inductance of 1.4mH support filtering performance, while the low leakage current of 1.46mA and minimal power loss of 0.68 W ensure energy efficient operation. The device maintains functionality in a wide temperature range from -25°C minimum to 85°C maximum, suitable for varied environmental conditions.
The filter dimensions (80mm length × 93mm height × 22.5mm depth) provide a compact footprint for space-constrained control enclosures. It meets EN 60939 compliance standards, underscoring its reliability for EMC protection. Manufactured in the United Kingdom, this DRF Series filter ensures dependable performance and quality assurance.
Compact DIN Rail mount suitable for industrial and control panel use. Screw termination style ensures secure and reliable electrical connection. Effective spike and surge protection for power line filtering. Operating temperature range from -25°C to 85°C enables robust performance in harsh environments.
Low power loss of 0.68W enhances energy efficiency. Provides filtering between 150 kHz to 30 MHz to reduce electromagnetic interference. Dimensions: 80mm length, 93mm height, 22.5mm depth for easy installation. Compliant with EN 60939 standards ensuring quality and safety.
Manufactured in the United Kingdom for reliable industrial grade quality.
This Roxburgh EMC DRF06 DIN Rail RFI Filter is well-suited for use in industrial electronics, HVAC systems, manufacturing equipment, and electrical control panels requiring EMI noise reduction and spike suppression. Browse EnvMart’s Power Line Filters category for related EMC protection components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 6A.
This filter has a voltage rating of 250V AC.
It operates efficiently in frequency ranges from 0 Hz up to 440 Hz.
The dimensions are 80mm in length, 93mm in height, and 22.5mm in depth.
It uses a screw termination style for secure and reliable electrical connections.
The operating temperature range is from -25°C to 85°C.
The power loss is minimal at 0.68W, enhancing energy efficiency.
The leakage current is 1.46mA.
It complies with EN 60939 standards, ensuring quality and safety.
The capacitance is 1μF and the inductance is 1.4mH.
This model is suitable for industrial electronics, HVAC systems, manufacturing equipment, and electrical control panels requiring EMI noise reduction and spike suppression.
It is manufactured in the United Kingdom, ensuring reliable industrial-grade quality.
