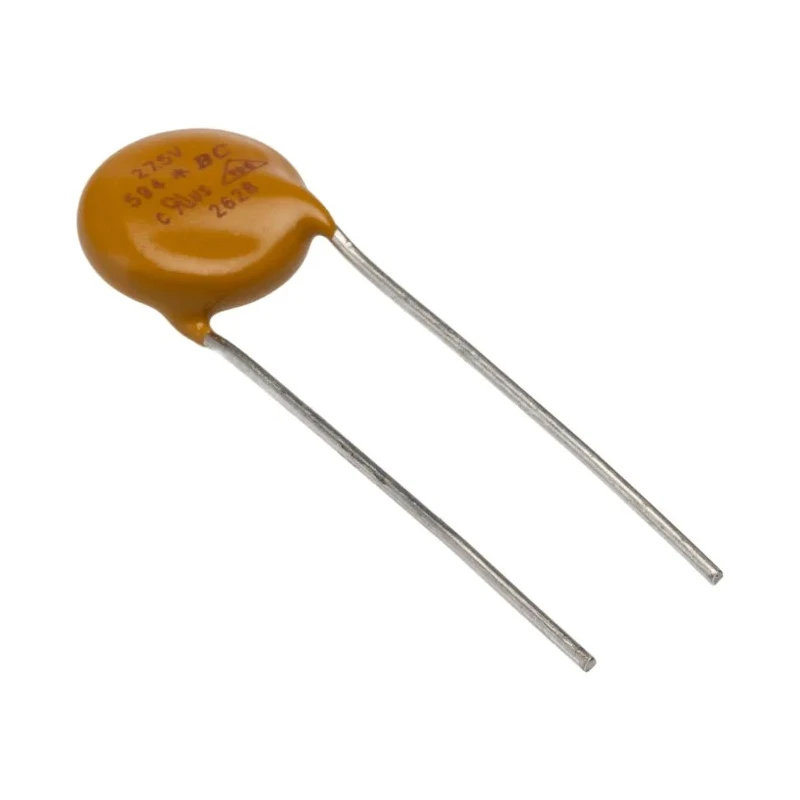

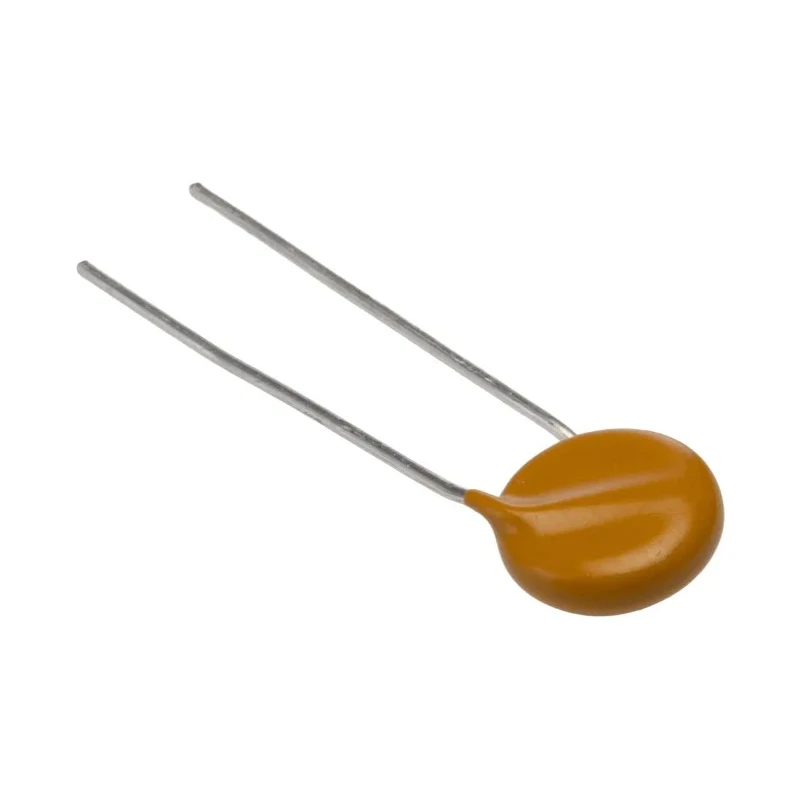

Vishay VDRS Varistor 270pF 50A Clamping Voltage 376V Maximum AC Voltage 680V VDRS10P275BSE
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13.5mm |
| Brand | Vishay |
| Material | Metal |
| THICKNESS | 5.4mm |
| Length | 32mm |
| Model | VDRS10P275BSE |
| Mount Type | Through Hole |
| Series | VDRS |
| Energy Rating | 496J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 270pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 895V dc |
| Standards/Approvals | IEC 61051-1, UL 1449, CSA, VDE |
| Package/Case | Disc |
| Pin Count | 2 |
| Termination Style | Radial |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 376V |
| Clamping Current | 50A |
| Maximum Surge Current | 2.5kA |
| Varistor Voltage | 430 V |
| Has a wide variety of applications, the most common including | clipping, relay coil contact protection, voltage stabilisation |
Key Features
- Disc type varistor with metal material and radial terminations.
- Through hole mount type suitable for PCB assembly.
- Rated maximum AC voltage of 680V and maximum DC voltage of 895V.
- Energy rating of 496J for effective transient voltage suppression.
- Operating temperature range from -40°C to 85°C.
- Complies with IEC 61051-1, UL 1449, CSA, and VDE standards.
- Lead pitch of 7.5mm with 2-pin count for electrical connections.
- Applications include clipping, relay coil contact protection, and voltage stabilization.
Product Description
Vishay VDRS10P275BSE is a high-quality varistor component with a capacitance of 270pF and a clamping current of 50A. It offers a clamping voltage of 376V and a varistor voltage of 430V, designed specifically for surge protection in electronic circuits.
This disc-shaped varistor features metal material construction and radial termination style, with a through-hole mount suitable for printed circuit board insertion. It has a diameter of 13.5mm, length of 32mm, and thickness of 5.4mm, providing a compact form factor for various applications.
The varistor supports a maximum AC voltage of 680V and maximum DC voltage of 895V, with an energy rating of 496J, making it effective for transient voltage suppression. It operates reliably within a temperature range from -40°C to 85°C.
Compliant with international standards IEC 61051-1, UL 1449, CSA, and VDE, this varistor ensures quality and safety in electrical protection applications. It has a lead pitch of 7.5mm and consists of 2 pins for secure electrical connections.
Typical applications include clipping circuits, relay coil contact protection, and voltage stabilization in industrial, commercial, and electronic devices. The metal varistor construction provides reliable transient voltage suppression to protect sensitive components from voltage spikes.
Disc type varistor with metal material and radial terminations. Through hole mount type suitable for PCB assembly. Rated maximum AC voltage of 680V and maximum DC voltage of 895V. Energy rating of 496J for effective transient voltage suppression.
Operating temperature range from -40°C to 85°C. Complies with IEC 61051-1, UL 1449, CSA, and VDE standards. Compact dimensions: 13.5mm diameter, 32mm length, and 5.4mm thickness. Lead pitch of 7.5mm with 2-pin count for electrical connections.
Applications include clipping, relay coil contact protection, and voltage stabilization. Explore more Varistors and surge protection components at EnvMart for reliable electrical and electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC voltage rating for this varistor is 680V.
The clamping voltage of this model is 376V.
It has an energy rating of 496J, which is effective for transient voltage suppression.
The varistor has a diameter of 13.5mm, a length of 32mm, and a thickness of 5.4mm.
The operating temperature range is from -40°C to 85°C.
This varistor uses a through-hole mount type suitable for PCB assembly.
The capacitance of this model is 270pF.
It complies with IEC 61051-1, UL 1449, CSA, and VDE standards.
This model has 2 pins for electrical connections.
The maximum DC voltage rating is 895V.
Typical applications include clipping, relay coil contact protection, and voltage stabilization.
The clamping current for this varistor is 50A.
