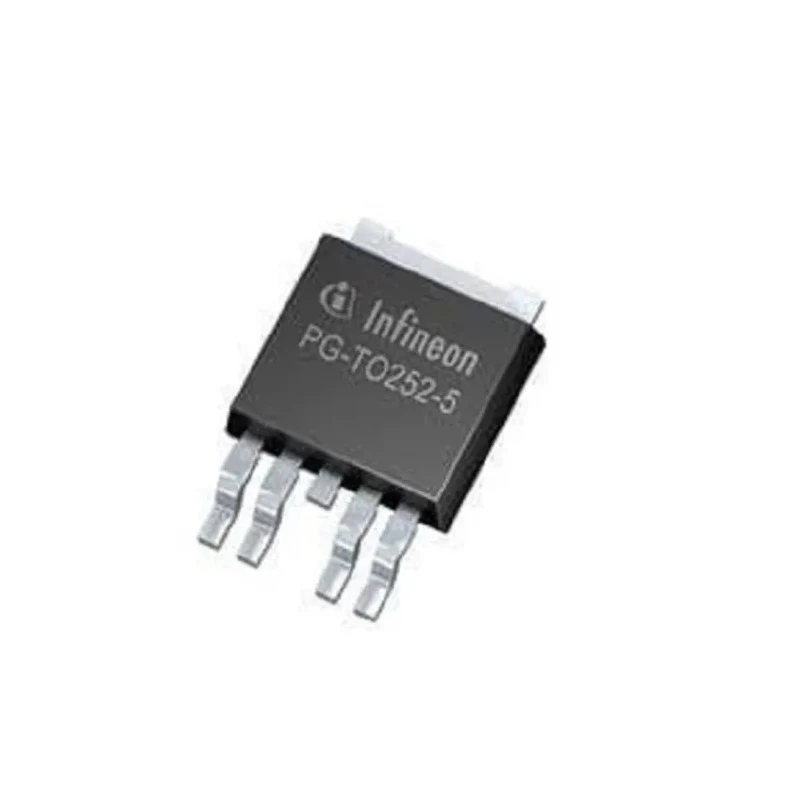

Infineon High Side Power Switch IC, 12mΩ RdsOn, 2 Outputs, 5-Pin PG-TO-252 Package BTS6142DAUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.3mm |
| Length | 6.22mm |
| Model | BTS6142DAUMA1 |
| Width | 6.5mm |
| Mount Type | PCB |
| Series | BTS 6142D |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-TO-252 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 2.2mA |
| Number of outputs | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 38V |
| Minimum Supply Voltage | -16V |
| Switch On Resistance RdsOn | 12mΩ |
Key Features
- Operates with a maximum supply voltage of 38V for vehicle system compatibility.
- Low switch on resistance of 12mΩ minimizes conduction losses and heat generation.
- Dual outputs allow independent control of two circuits from one device.
- Wide operating temperature range from -40°C to 150°C suitable for under-bonnet automotive environments.
- Supplied in a compact 5-pin PG-TO-252 package ideal for PCB mounting.
- RoHS compliant, meeting environmental substance restrictions.
- Low operating current of 2.2mA reduces quiescent power consumption.
- Negative supply tolerance to -16V protects against load-dump conditions.
Product Description
Infineon BTS6142DAUMA1 is a high side power switch IC engineered for automotive electronic control systems. Featuring a low On-resistance of 12mΩ and capable of handling a maximum supply voltage of 38V, this device ensures efficient power switching with reduced losses and heat build-up. Its two independent outputs facilitate reliable control of multiple loads from a single package.
The device supports a broad operating temperature range from -40°C to 150°C, making it suitable for harsh under-bonnet environments in automobiles. Packaged in a 5-pin PG-TO-252 form factor, the switch IC offers easy PCB mounting and integration with automotive body control modules and power distribution circuits.
Designed with automotive standards including AEC compliance and RoHS environmental directives, the BTS6142DAUMA1 offers enhanced robustness with a negative supply tolerance down to -16V to safeguard against vehicle load-dump events. The operating current is minimal at 2.2mA, lowering quiescent power drain in electronic systems.
Maximum Supply Voltage of 38V supports diverse vehicle electrical systems. Low Switch On Resistance (RdsOn) of 12mΩ significantly reduces conduction losses. Two Outputs enable control of separate automotive loads from one device.
Wide Operating Temperature Range (-40°C to 150°C) suitable for automotive conditions. Compact 5-Pin PG-TO-252 Package for efficient PCB mounting in tight spaces. Compliant with RoHS standards restricting hazardous substances.
Low Operating Current of 2.2mA to minimize power consumption. Negative Supply Tolerance to -16V protects against load-dump scenarios.
This power switch IC is ideal for switching automotive lighting circuits, managing loads in body control modules, and controlling electro-mechanical actuators. It provides reliable and efficient power switching crucial for modern vehicle electronics.
Explore the Power Switch IC category on EnvMart for additional options and related automotive power management components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the BTS6142DAUMA1 is 38V, making it suitable for various vehicle electrical systems.
This model features a low switch on resistance of 12mΩ, which minimizes conduction losses and heat generation during operation.
The operating temperature range of this power switch IC is from -40°C to 150°C, suitable for harsh automotive environments.
The BTS6142DAUMA1 has two independent outputs, allowing for the control of two circuits from a single device.
It is supplied in a compact 5-pin PG-TO-252 package, which is ideal for PCB mounting.
The operating current for this model is 2.2mA, which helps to reduce quiescent power consumption.
This model complies with AEC automotive standards and is also RoHS compliant, meeting environmental substance restrictions.
The BTS6142DAUMA1 has a negative supply tolerance down to -16V, which protects against load-dump conditions.
The dimensions of this power switch IC are 6.22mm in length, 6.5mm in width, and 2.3mm in height.
This model is suitable for switching automotive lighting circuits, managing loads in body control modules, and controlling electro-mechanical actuators.
The country of origin for this power switch IC is India.
The low switch on resistance of 12mΩ reduces conduction losses and heat generation, enhancing the efficiency of power switching.
