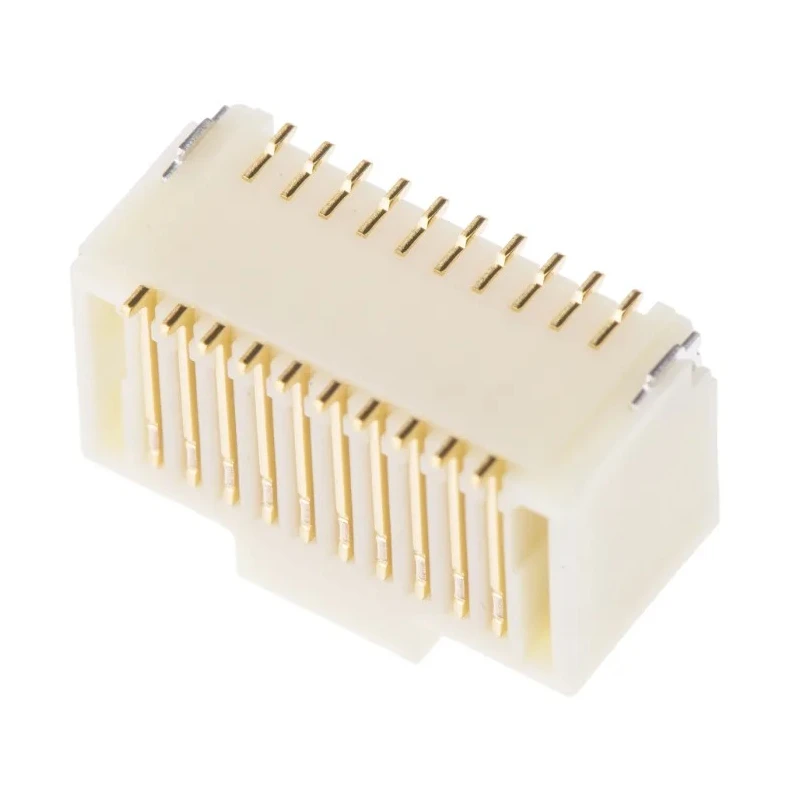

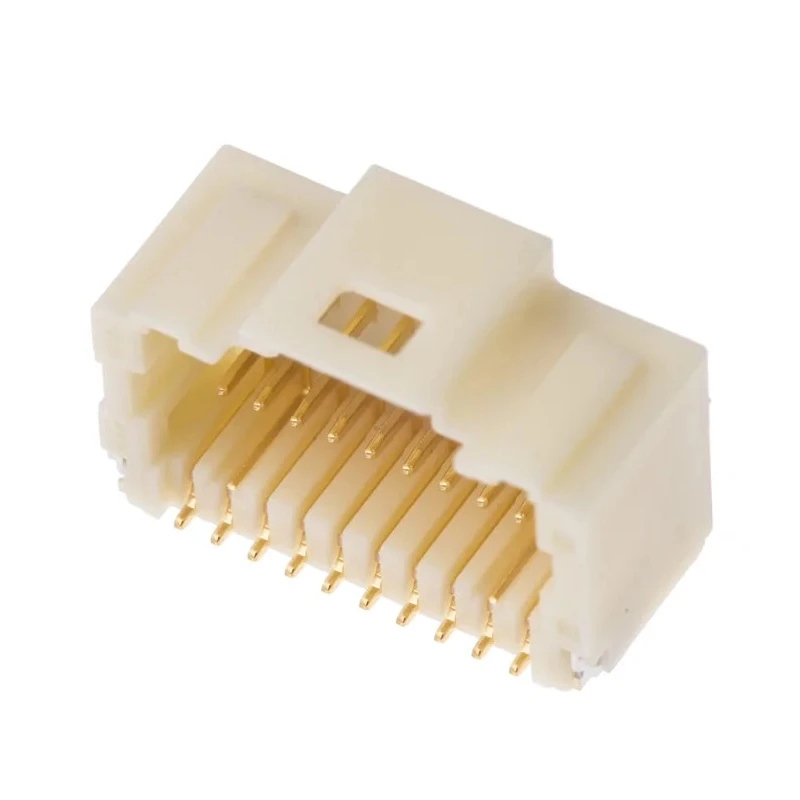

Molex Pico-Clasp Series Right Angle Surface PCB Header, 20 Contacts, 1 mm Pitch, 2 Row, Shrouded 501571-2007
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Series | Pico-Clasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | ELV, Low halogen, REACH, RoHS, UL |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 1mm |
Key Features
- Compact 1.00 mm pitch dual row design for high-density circuit boards.
- Right angle orientation enables space-saving PCB layouts.
- Gold-plated contacts ensure optimal conductivity and corrosion resistance.
- Nylon housing material provides robust insulation and durability.
- Operating temperature range from -40°C to 105°C supports diverse industrial applications.
- Shrouded connector design enhances mating security and electrical safety.
- Solder termination type is suitable for surface mount technology.
- Current rating of 1 ampere and voltage rating of 50 volts for reliable power handling.
Product Description
Molex 501571-2007 Pico-Clasp Series right angle surface PCB header features a 1 mm pitch with 20 contacts arranged in 2 rows. This shrouded connector system is designed to provide high-density wire-to-board connections in compact applications.
The connector includes gold-plated male contacts with a 1 mm mating pin length, housed in a durable nylon shell. Its surface mount termination type and right angle orientation enable efficient PCB layout and assembly in electronic devices.
Operating reliably between -40°C and 105°C, this PCB header is ideal for electronics in industrial, manufacturing, telecommunications, consumer electronics, and other demanding environments. It supports a current of 1 ampere at 50 volts, suitable for low-power signal and control circuits.
Compact 1 mm pitch dual row configuration for dense circuit board design. Gold-plated male contacts provide excellent electrical conductivity and corrosion resistance. Nylon housing ensures electrical insulation and mechanical robustness.
Right angle orientation optimizes board space usage. Shrouded design improves secure mating preventing misalignment and damage. Surface mount solder termination for automated PCB assembly processes. Wide temperature range ensures performance in varied industrial conditions.
Complies with ELV, Low halogen, REACH, RoHS, and UL standards to meet environmental and safety regulations. This Molex Pico-Clasp Series PCB header is supplied on a reel, designed for efficient insertion in production lines, increasing manufacturing throughput and quality.
Discover more PCB connectors and high-quality electronic components in our Electronics Components category on EnvMart.
Explore more products in our PCB Headers category.
