Molex Pico-Clasp Series Right Angle Surface PCB Header 20 Contact 1 mm Pitch 2 Row Shrouded 501571-2007

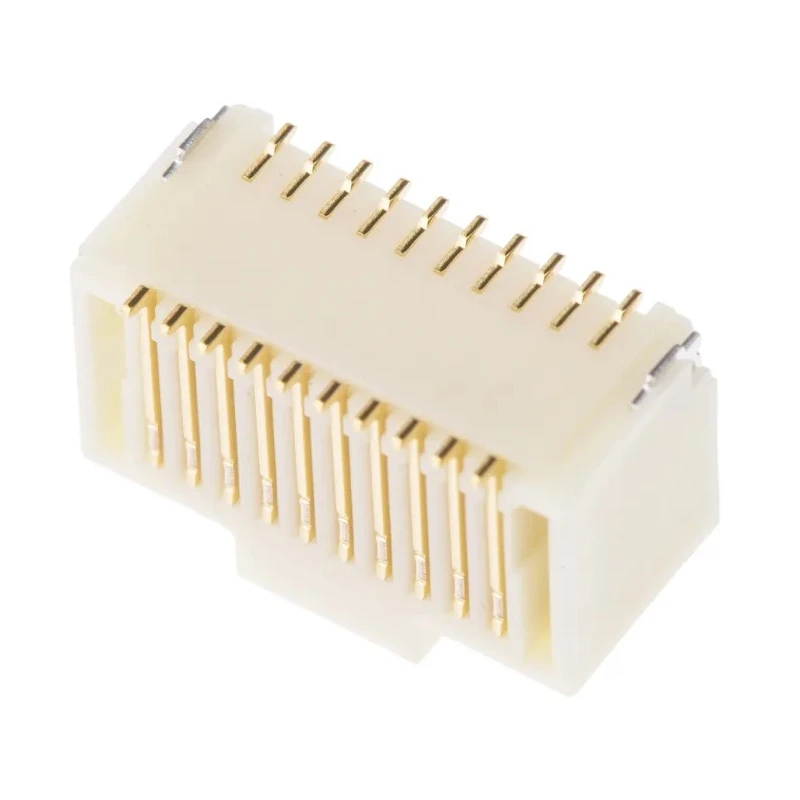

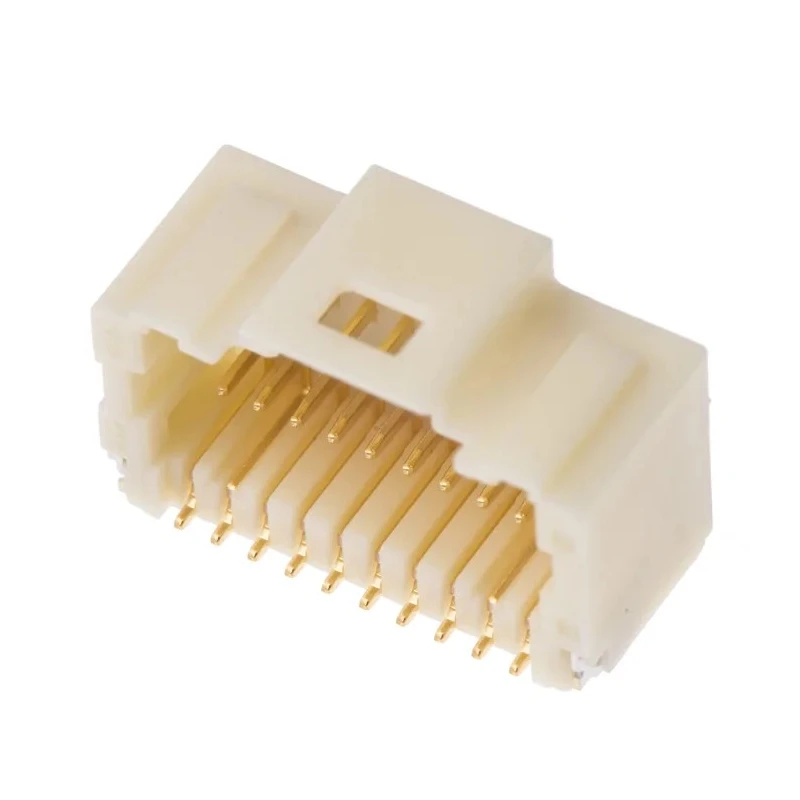

Molex 501571-2007 Pico-Clasp Series Right Angle Surface PCB Header is a compact, dual-row wire-to-board connector system designed for efficient electronic interconnections. It features 20 contacts arranged in a 2-row configuration with a 1 mm pitch, suitable for space-constrained PCB designs where reliable connectivity is critical.

This header is right angle oriented and mounted on the surface of the PCB, facilitating easy assembly and integration into varied electronic modules. The housing is constructed from robust nylon material, providing electrical insulation and mechanical protection.

Gold plated male contacts ensure high conductivity and resistance to corrosion. The connector supports a current rating of 1 amp and can safely operate at voltages up to 50 volts, making it suitable for low power electronics. It is designed to function reliably across a wide temperature range from -40°C to 105°C, accommodating demanding industrial and commercial environments.

Termination is done via soldering, ensuring a secure mechanical and electrical bond to the PCB. The mating pin length of 1 mm contributes to the tight fit and dependable electrical connection. This product complies with stringent industry standards such as ELV, Low Halogen, REACH, RoHS, and UL, ensuring safety and environmental compliance.

The Molex Pico-Clasp series represents a high-density interconnection solution, widely used in electronic manufacturing, instrumentation, control systems, and other applications requiring compact, reliable PCB connectors.

The header is right angle oriented for versatile PCB mounting. Features a shrouded nylon housing for durability and protection. Gold plated contacts provide superior conductivity and corrosion resistance. Rated for 1 amp current and 50 volts voltage.

Operates from -40°C to 105°C. Solder termination ensures firm PCB connection. Dual row 20-contact configuration with 1 mm pitch spacing. Complies with ELV, Low halogen, REACH, RoHS, and UL certifications. Ideal for small form factor electronic and industrial applications.
