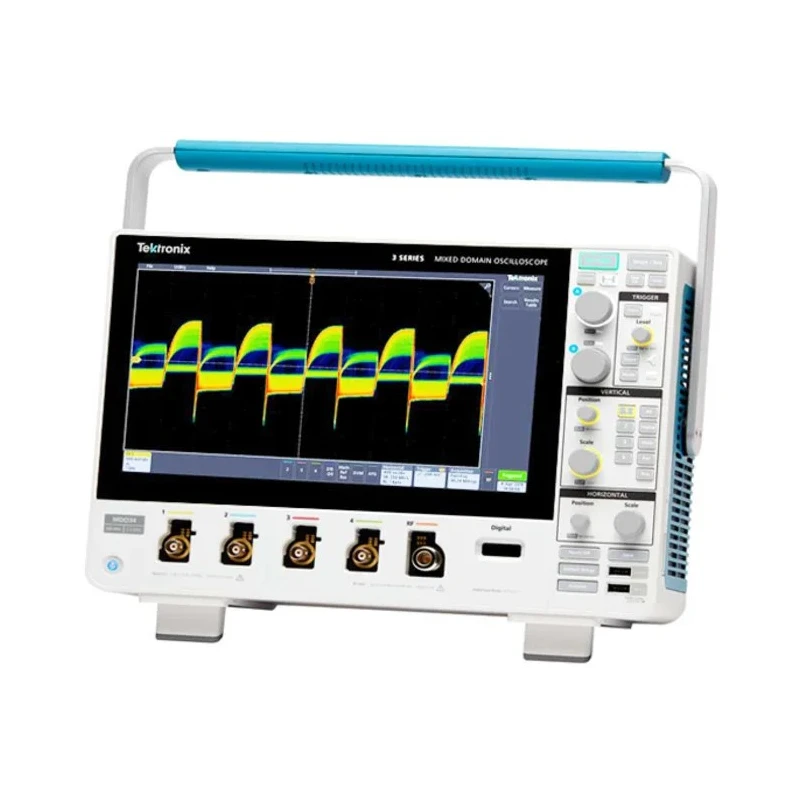

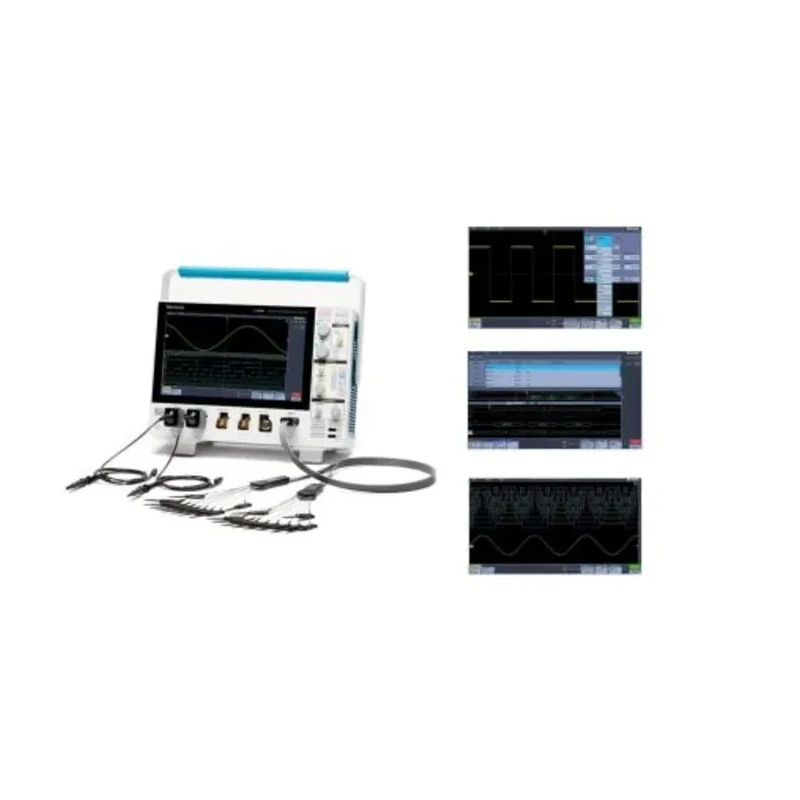

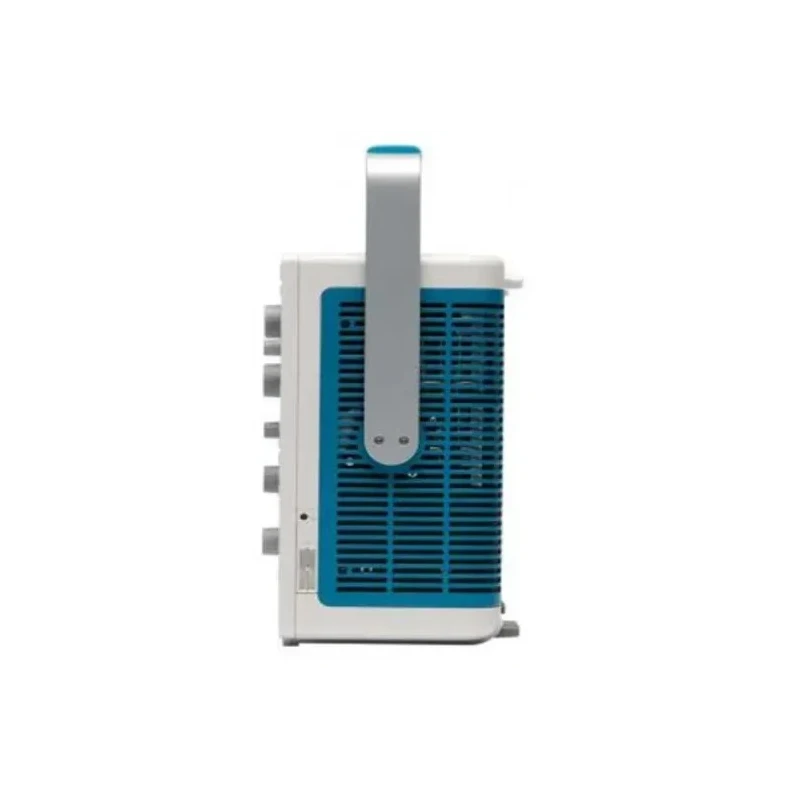

Tektronix MDO34 Series 350 MHz Bench Mixed Domain Oscilloscope 2 Channels

Free Delivery in India | Lowest Global Shipping Charges

Tektronix MDO34 Series 350 MHz Bench Mixed Domain Oscilloscope 2 Channels

Name: Tektronix MDO34 Series 350 MHz Bench Mixed Domain Oscilloscope 2 Channels
Brand: TEKTRONIX
SKU: 115336



Category Oscilloscope Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Display Type	TFT LCD
Display	touchscreen
Brand	Tektronix
Height	252mm
Model	MDO34
Depth	148.6mm
Width	370mm
Bandwidth	350MHz
Sampling rate	on each analog channel
Series	MDO34
Interfaces	USB-488 - GPIB to USB Adapter
Number Of Channels	2
Vertical Resolution	8 bit
Memory Depth	128Mpts
Rise Time	1.14s
Interface Type	CAN, CAN FD, I2C, I2S, LIN, MIL, SPI, UART, USB 2.0
Oscilloscope Type	Bench
Digital Channels	16
Safety Category Level	CAT II
Oscilloscope Form	Mixed Domain

Key Features

Includes 11.6-inch HD capacitive touchscreen display for intuitive operation.
Offers low-level signal measurement accuracy improved by up to 40%.
Features up to 5 GS/s sample rate on each analog channel for detailed signal capture.
Supports more than 125 trigger combinations for flexible signal detection.
Built-in 1 GHz spectrum analyzer enables comprehensive RF analysis.
Upgradeable options include up to 3 GHz bandwidth and 16 digital channels with MSO functionality.
Integrated 50 MHz arbitrary/function generator enhances signal generation capabilities.
Extensive serial bus decode and trigger options, including CAN, LIN, SPI, UART, I2C, and USB 2.0.

Product Description

Tektronix MDO34 3-BW-350 + 3-AFG +3-BND + 3-MSO bench Mixed Domain Oscilloscope combines a high 350 MHz bandwidth and 2 channels with advanced functionality to meet demanding test and measurement needs.

This model offers an 11.6-inch HD capacitive touchscreen to support pinch, tap, and swipe operations, providing user-friendly interaction. Its improved low-level signal measurement accuracy ensures up to 40% better precision, critical for detailed signal analysis. Each analog channel supports sampling rates up to 5 GS/s enabling high-fidelity waveform capture.

The device features a versatile triggering system with over 125 combinations, facilitating precise signal event isolation. Embedded within is a 1 GHz hardware spectrum analyzer that delivers superior RF analysis within the same instrument, making it perfect for RF and baseband tests.

Key upgrade options include extending bandwidth up to 3 GHz, adding a full 16 digital channels via MSO capabilities, and including a 50 MHz arbitrary/function generator. The oscilloscope supports a wide range of serial bus decodes and triggers such as CAN, CAN FD, I2C, I2S, LIN, SPI, UART, and USB 2.0, catering to comprehensive embedded system analysis and debugging.

Compliance with global safety and electromagnetic compatibility standards such as IEC 61010-1 and CAT II rating ensures safe and reliable operation in industrial and laboratory environments. Its compact dimensions (370mm width x 252mm height x 148.6mm depth) and robust design make it a preferred choice for bench-top applications.

This Tektronix MDO34 series oscilloscope is applicable in multiple professional fields including industrial testing, electronics manufacturing, telecommunications, and research laboratories. It provides a powerful platform for detailed waveform analysis, RF testing, and complex mixed-signal measurements in a single instrument.

Includes software options like TekScope™ and TekDrive for enhanced analysis and collaboration. Compatible with a wide range of probes and accessories to extend measurement capabilities. Designed to support remote and hybrid learning environments with advanced software tools.

Explore the Tektronix line of Oscilloscopes and mixed domain instruments for advanced measurement solutions at EnvMart.
