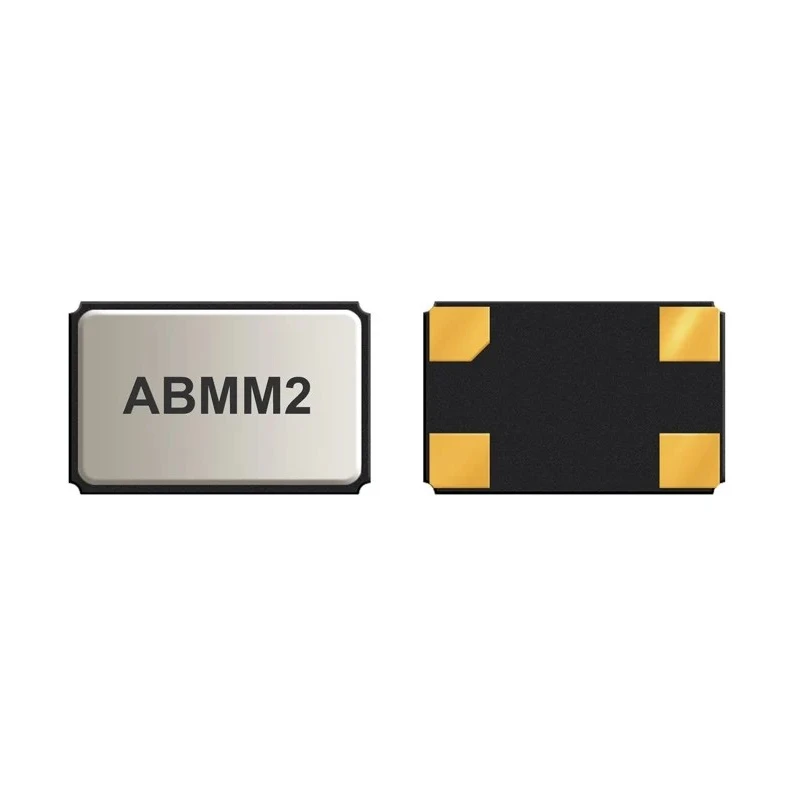

Abracon 20 MHz Crystal Unit ±20 ppm Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ABMM2-20.000MHZ-E2-T

Abracon ABMM2-20.000MHZ-E2-T is a 20 MHz crystal unit designed for surface mount onto electronic printed circuit boards. It features a ±20 ppm frequency tolerance and ±20 ppm frequency stability ensuring reliable and precise timing in various electronic assemblies.

This crystal unit has a low height profile of 1.2 mm and compact dimensions measuring 6 mm in length and 3.5 mm in width. The four-pin surface mount package is configured for ease of integration with automatic pick-and-place assembly methods with tape and reel packaging provided.

Rated for operation between -10°C and 60°C, it is built in a ceramic sealed package that guarantees long-term frequency stability and resistance to environmental effects. Its load capacitance is 18 pF, and it has a series resistance of 50 ohms, making it suitable for precision oscillator circuits.

The quartz crystal is RoHS compliant, meeting environmental safety standards. It is suitable for a broad range of industrial and laboratory electronic applications, including computers, microprocessors, communication equipment, test instruments, and PCMCIA cards.

Standard frequency: 20 MHz. Surface mount 4-pin package. Dimensions: 6 mm length × 3.5 mm width × 1.2 mm height. Load capacitance: 18 pF. Operating temperature range: -10°C to 60°C. Series Resistance (ESR): 50 Ω. RoHS compliant ceramic package.

Tape and reel packaging for manufacturing automation. Designed for use in computing and communication devices.
