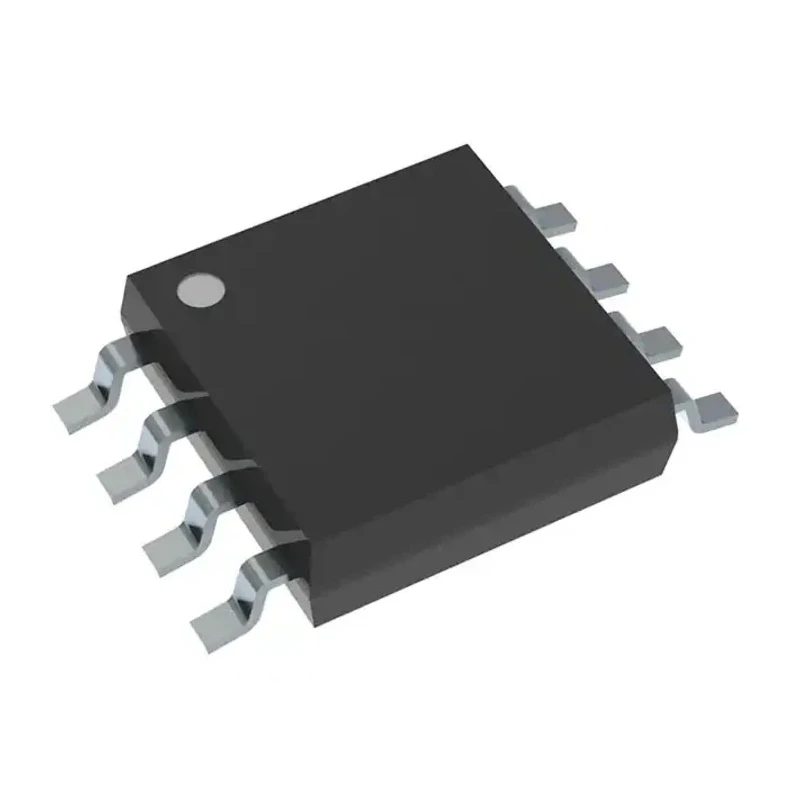

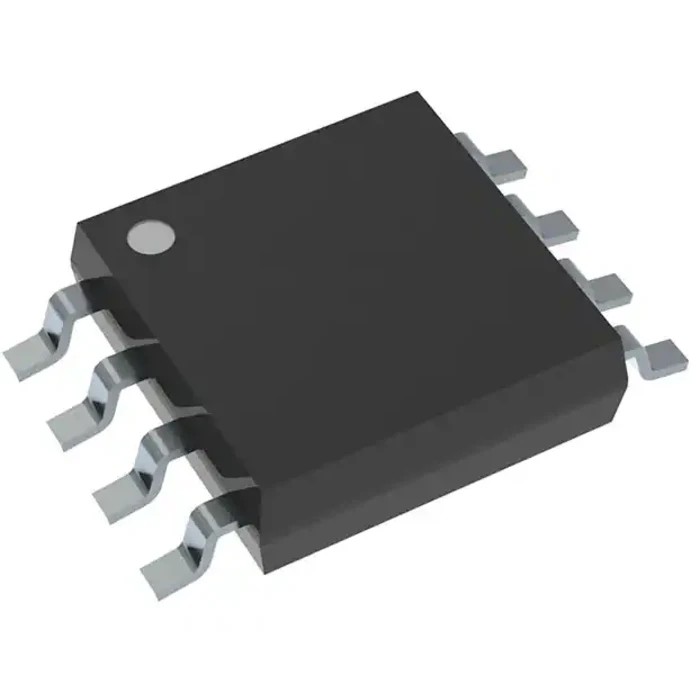

Nisshinbo Micro Devices Dual Operational Amplifier 3.1 MHz Gain Bandwidth, Surface Mount, 8-Pin DMP Package NJM2737M-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2737M-TE1 |
| Mount Type | Surface |
| Series | NJM2737 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 7V |
| GBP - Gain Bandwidth Product | 3.1MHz |
| Input Bias Current | 800 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.7V/μs |
| Input Offset Current | 100 nA |
Key Features
- Low voltage operation suitable for 6V to 7V supply range.
- Bipolar technology ensures low power consumption and low noise.
- Input offset voltage of 5 mV for precise signal amplification.
- Input bias current of 800 nA and offset current of 100 nA.
- Operating temperature range from -40°C to 85°C for reliable industrial use.
- Slew rate of 0.7 V/μs enabling moderate speed signal handling.
- Complies with RoHS environmental standards.
- Designed for compact mounting with surface mount (SMD) package type DMP.
Product Description
Nisshinbo Micro Devices NJM2737M-TE1 is a dual operational amplifier designed with bipolar technology providing low voltage operation and low noise suitable for a variety of electronic applications. Featuring a gain bandwidth product of 3.1 MHz and an 8-pin DMP surface mount package, it accommodates compact PCB layouts.
The amplifier operates within a voltage supply range of 6V (maximum) to 7V (minimum), with a typical input offset voltage of 5 mV allowing precise signal control. Its input bias current of 800 nA and offset current of 100 nA further contribute to its accuracy in amplification tasks.
Operating temperature ranges from -40°C up to 85°C makes this suitable for industrial, commercial, and consumer electronics environments. With a slew rate of 0.7 V/μs, it supports moderate speed applications such as PC audio and portable audio devices.
This device meets RoHS compliance standards, ensuring it adheres to environmental safety regulations. Its dual channel setup allows for simultaneous amplification tasks on two signals.
The surface mount DMP package ensures ease of installation in dense PCB designs, making it ideal for modern electronics manufacturing processes. Low voltage, low noise bipolar operational amplifier. Suitable for PC audio and portable audio applications.
Wide operating temperature range for versatile use cases. Compliant with RoHS standards. Compact surface mount packaging for space-saving on PCB.
This operational amplifier model NJM2737M-TE1 from Nisshinbo Micro Devices offers reliable electronic signal amplification with compact form factor and low power requirements. Explore more Operational Amplifiers and electronic components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NJM2737M-TE1 is 3.1 MHz, allowing it to handle moderate speed signal amplification tasks.
The input offset voltage for this model is 5 mV, which aids in precise signal amplification.
This operational amplifier operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
The NJM2737M-TE1 operates with a supply voltage range of 6V to 7V.
The slew rate of this operational amplifier is 0.7 V/μs, which supports moderate speed applications.
This operational amplifier features two channels, allowing for simultaneous amplification of two signals.
It comes in an 8-pin DMP surface mount package, designed for compact PCB layouts.
The input bias current for the NJM2737M-TE1 is 800 nA, contributing to its accuracy in amplification tasks.
This operational amplifier complies with RoHS environmental standards, ensuring adherence to safety regulations.
The input offset current of the NJM2737M-TE1 is 100 nA, which helps maintain signal integrity during amplification.
It is suitable for applications such as PC audio and portable audio devices, leveraging its low noise and low voltage operation.
The NJM2737M-TE1 is manufactured in India.
