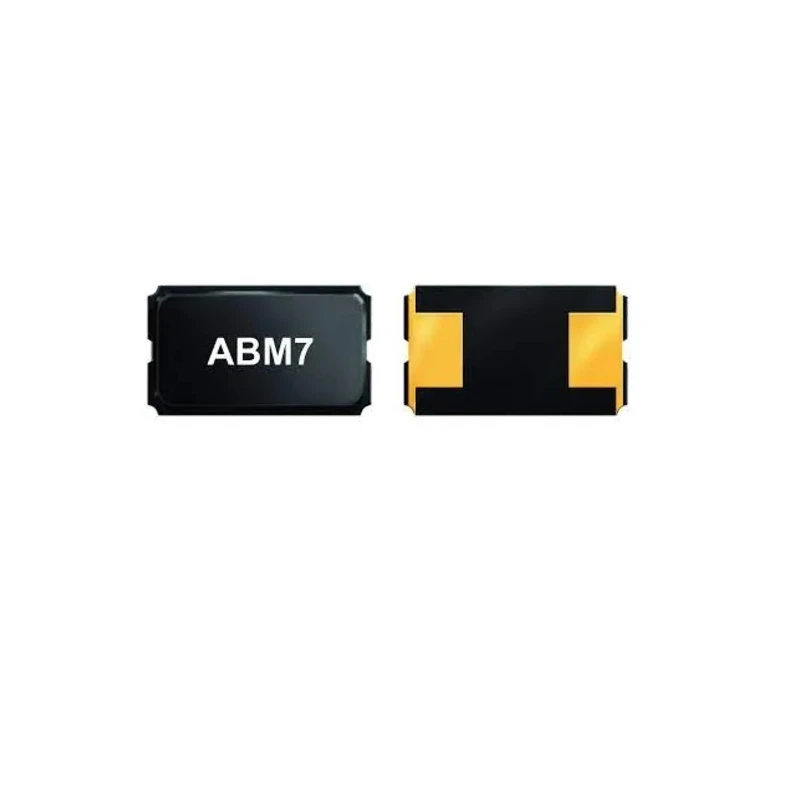

Abracon 9.8304 MHz Crystal ±50 ppm Surface Mount 2-Pin 1.4 mm Height 6 mm Length 3.5 mm Width ABM7-9.8304MHZ-D2Y-T

The Abracon ABM7-9.8304MHZ-D2Y-T is a ceramic SMD micro miniature crystal specifically designed for surface mount applications requiring a standard frequency of 9.8304 MHz and frequency tolerance of ±50 ppm. Its compact ceramic package ensures high reliability and is ideal for use in high density circuit assemblies.

This crystal features precise oscillation characteristics with a load capacitance of 18pF and series resistance of 100Ω, ensuring stable frequency output within the specified temperature range of -10°C to 60°C. The low profile 1.4 mm height and package dimensions (6 mm length, 3.5 mm width) make it suitable for modern compact electronic designs.

Supplied on Tape & Reel with a 2-pin configuration, this crystal is perfect for industrial, communication, computer, and modem devices demanding robust performance and adherence to RoHS environmental standards. The ceramic package and superior heat-resistant glass sealing provide mechanical strength and protect against environmental stresses.

Compact ceramic surface mount design for space-limited applications. High frequency stability and tolerance ensure precise oscillation. Wide operating temperature range supports industrial-grade usage. RoHS compliance guarantees environmental safety.

Packaging on Tape & Reel facilitates automated assembly. Heat-resistant sealing enhances durability in rugged environments. Two-pin lead design simplifies PCB mounting and connectivity. Ideal for use in communication equipment, industrial electronics, and computing devices.
