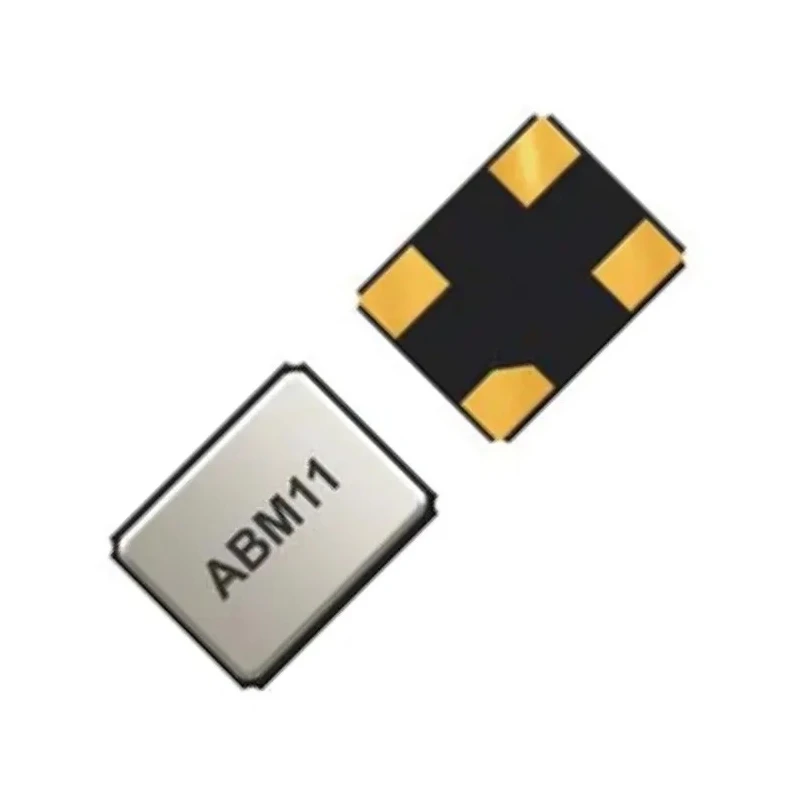

Abracon 30 MHz Crystal ±30 ppm Surface Mount 4-Pin 0.59 mm Height 2 mm Length 1.6 mm Width ABM11-30.000MHZ-D2X-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.59mm |
| Length | 2mm |
| Model | ABM11-30.000MHZ-D2X-T3 |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ABM11 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 30MHz |
| Load Capacitance | 10pF |
| Series Resistance | 80Ω |
Key Features
- Operates at standard frequency of 30 MHz with ±30 ppm frequency tolerance.
- Features an ultra-miniature 2.0 x 1.6 x 0.59 mm ceramic surface mount package.
- Provides 10 pF load capacitance and 80 Ω series resistance for stable frequency output.
- Supports operating temperature range from -10°C to 60°C with ±50 ppm frequency stability.
- Equipped with a seam sealed ceramic package and metal lid to assure precision and reliability.
- Suitable for applications including cellular phones, pagers, PCMCIA, and other high-density circuits.
- Meets RoHS compliance and is supplied in tape & reel packaging for automated assembly.
- Does not comply with automotive standards but is ideal for demanding industrial electronic designs.
Product Description
Abracon ABM11-30.000MHZ-D2X-T3 is a high precision 30 MHz quartz crystal designed for surface mount technology (SMT) applications requiring ultra-miniature form factors. This crystal unit features a ceramic surface mount package measuring 2.0 mm in length, 1.6 mm in width, and 0.59 mm in height, making it suited for compact electronic devices.
The crystal offers a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, providing reliable oscillation performance critical for timing and frequency control in electronics. It operates within a temperature range of -10°C to 60°C, with a series resistance of 80 Ω and load capacitance of 10 pF.
Its seam-sealed ceramic package with metal lid ensures enhanced mechanical robustness and superior frequency stability under varying environmental conditions. The ABM11 series crystal supports applications such as cellular telephones, pagers, PCMCIA cards, and other high-density electronic circuits that require compact and precise timing components.
This product is RoHS compliant and is packaged in tape & reel for high volume automated PCB assembly processes. It is not suitable for automotive applications but is ideal for industrial electronics, telecommunications, computing, and other commercial uses requiring miniature crystal oscillators.
Standard frequency: 30 MHz with ±30 ppm tolerance. Mount type: Surface mount with 4 pins. Package dimensions: 2.0 mm x 1.6 mm x 0.59 mm. Load capacitance: 10 pF, series resistance: 80 Ω. Operating temperature range: -10°C to 60°C.
Seam sealed ceramic package with metal lid for stability. RoHS compliant, supplied in tape & reel packaging. Application in telecommunications, computing, and industrial electronics.
EnvMart offers this Abracon ABM11-30.000MHZ-D2X-T3 30 MHz Crystal as part of our comprehensive catalog of electronic components. Explore further Crystal Units and surface mount components to complete your design and inventory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 30 MHz.
This model has dimensions of 2.0 mm in length, 1.6 mm in width, and 0.59 mm in height.
The load capacitance of this crystal unit is 10 pF.
The series resistance for this crystal is 80 Ω.
It operates within a temperature range of -10°C to 60°C.
It is supplied in tape & reel packaging, suitable for automated assembly.
Yes, this crystal unit meets RoHS compliance standards.
This model is suitable for applications including cellular phones, pagers, and PCMCIA cards.
The frequency tolerance of this crystal unit is ±30 ppm.
The frequency stability of this crystal unit is ±50 ppm.
This model has a pin count of 4.
This crystal unit uses a surface mount type.
