| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C43-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 43V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 375Ω |
| Typical Voltage Temperature Coefficient | 37.6mV/K |

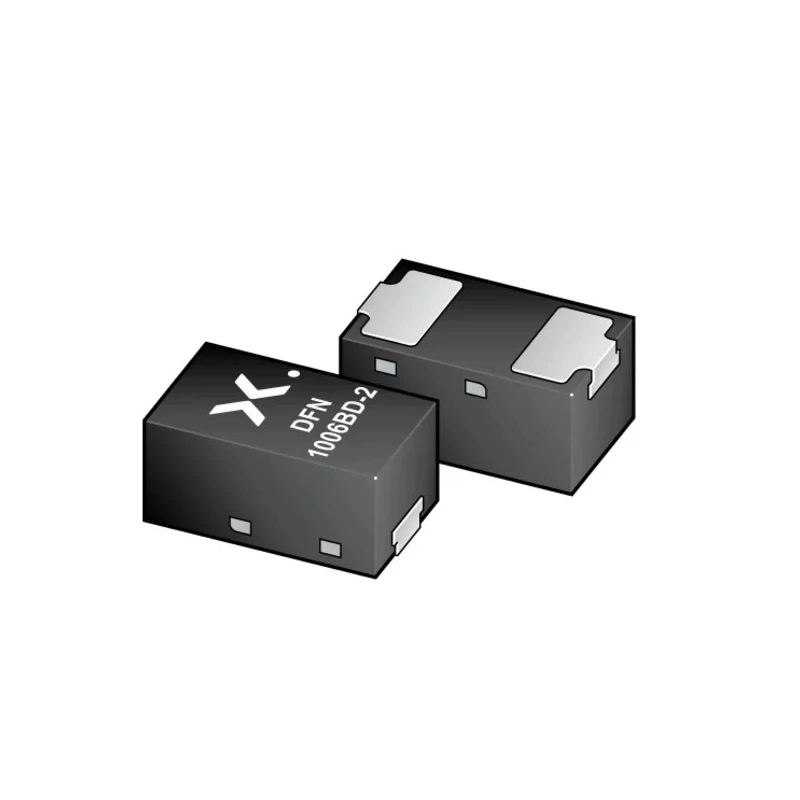

Nexperia BZX884S-C43-QYL is a general purpose Zener diode featuring a nominal Zener voltage of 43 V and a maximum power dissipation of 365 mW. It is designed for surface mounting in a compact DFN1006BD-2 2-pin package, making it suitable for a variety of industrial and automotive electronic applications requiring voltage regulation or voltage reference functions.
This Zener diode is configured as a single element per chip, tested at a current of 5 mA, and rated for maximum operating temperatures up to 150°C and a minimum of -55°C, providing reliable performance across harsh environments. It demonstrates a maximum reverse leakage current of 50 nA and maintains maximum impedance of 375 Ω, ensuring precise voltage regulation with minimal power loss.
The device's small physical size (0.47 mm height and 1 mm length) allows for high-density PCB designs particularly in automotive and industrial electronics compliant with AEC-Q101 standards.
The diode complies with RoHS directives, guaranteeing environmentally safe manufacturing. Its typical voltage temperature coefficient of 37.6 mV/K supports stable operation under varying temperature conditions.
Single diode configuration for voltage regulation. Compact DFN1006BD-2 surface mount package optimizes board space. High reliability with automotive grade AEC-Q101 certification. Low leakage current and stable impedance values ensure performance consistency.
Wide operating temperature range suitable for industrial and automotive use.
Ideal for industrial, automotive, and electronic manufacturing applications involving voltage regulation and stabilization circuits. This diode supports design requirements where compact size, reliability, and precise voltage control are critical.
