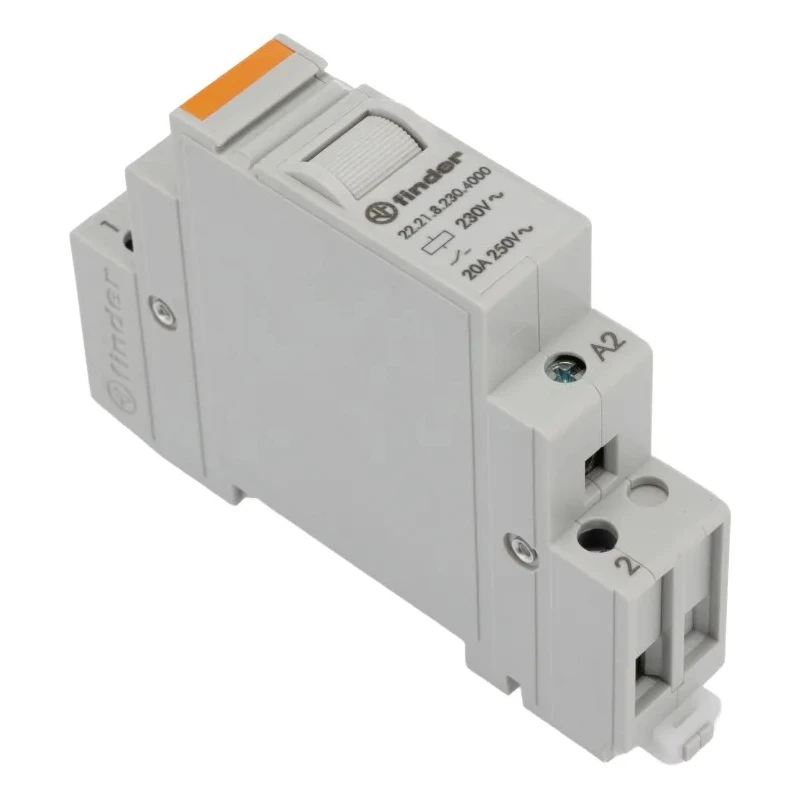

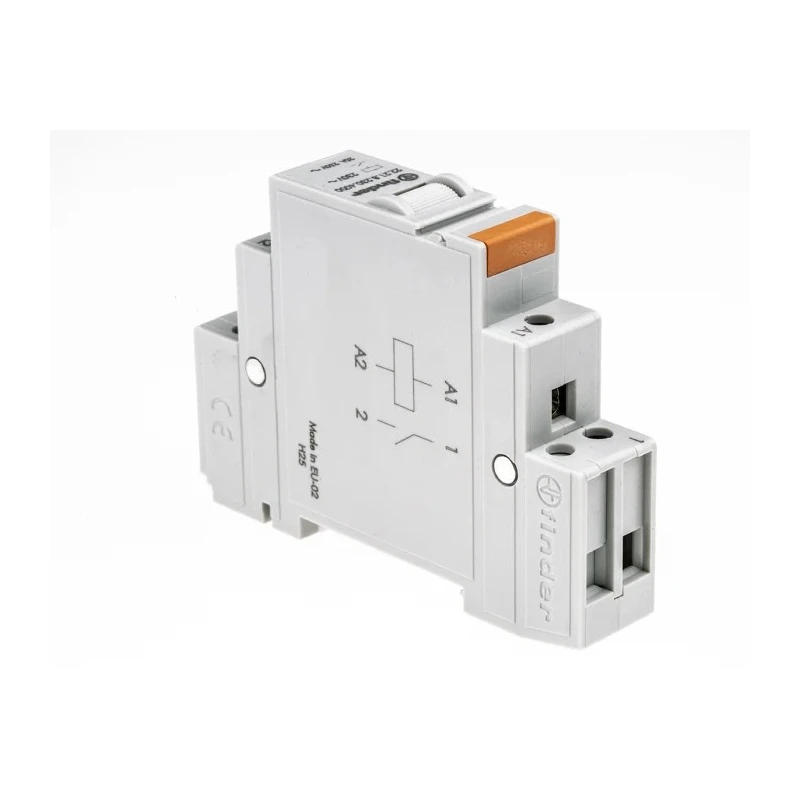

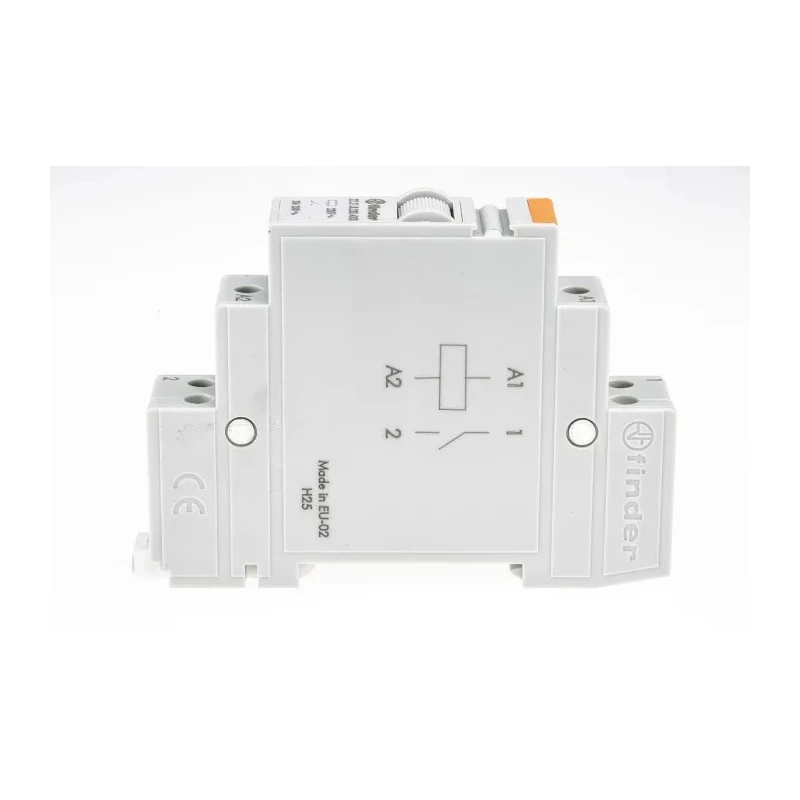

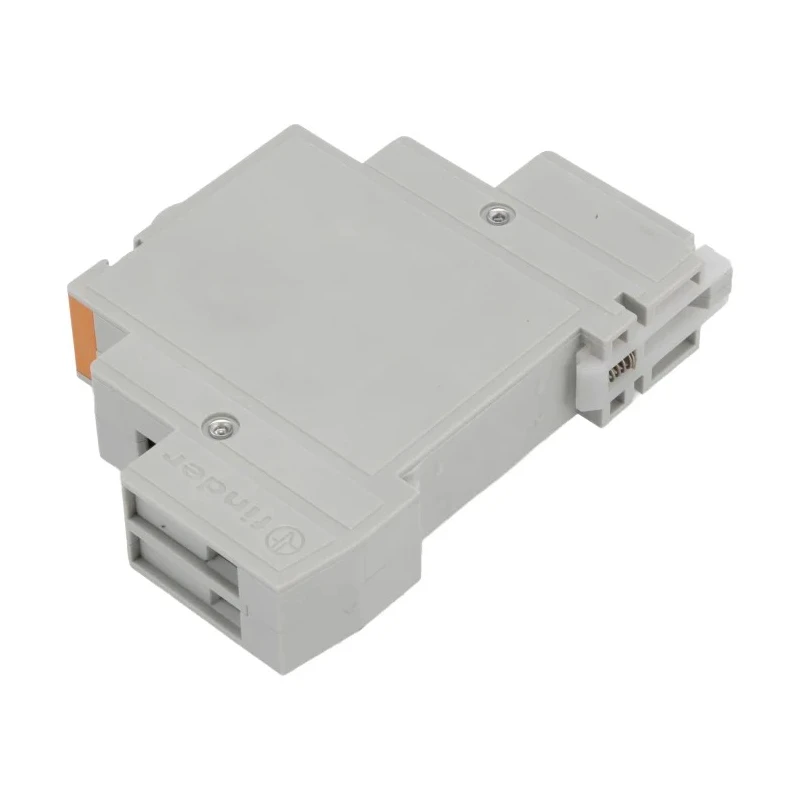

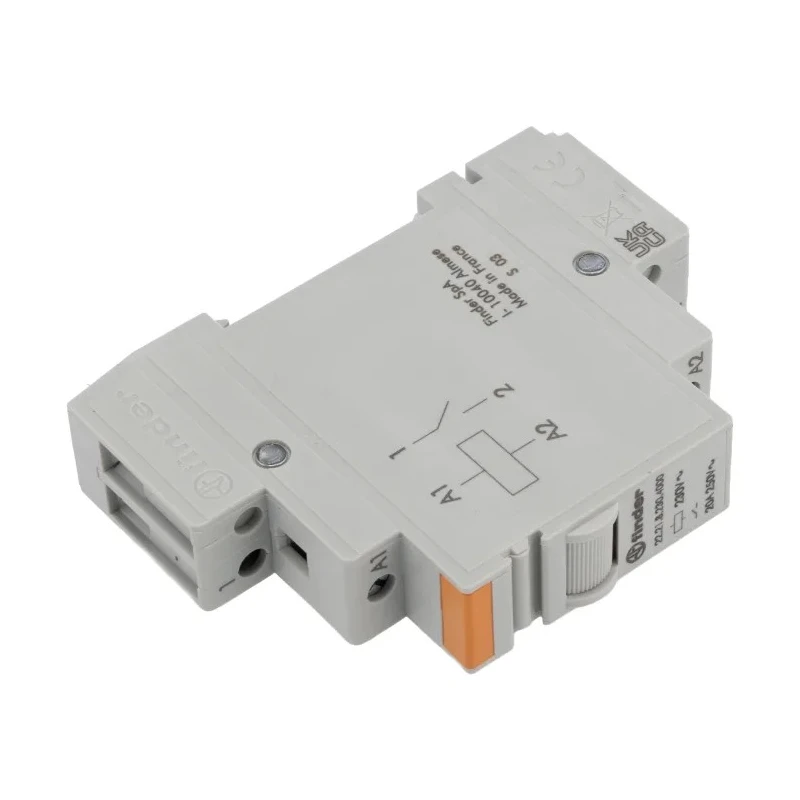

Finder DIN Rail Power Relay 230V AC Coil Voltage 20A Switching Current SPST Silver Alloy Contacts 22.21.8.230.4000
Specifications
| Country of Origin | France |
|---|---|
| Brand | Finder |
| Height | 58.4mm |
| Length | 84mm |
| Width | 58.4mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 22 |
| Maximum Operating Temperature | 40°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Resistance | 4.3kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 1.25W |
| Kopp Monitoring Relay, DPDTBrand | Kopp |
Key Features
- Features a coil voltage of 230V AC for reliable operation.
- Switching current capacity up to 20A for demanding electrical control.
- Constructed with durable silver alloy (AgSnO2) contact material.
- Compact design with dimensions 58.4mm width, 84mm length, and 58.4mm height.
- Suitable for mounting on standard 35mm DIN rails.
- Operates safely within a temperature range of -40°C to 40°C.
- Coil resistance is 4.3 kΩ with coil power consumption of 1.25W.
- Switching AC voltage rated at a maximum of 400V AC, with switching power up to 5kVA.
Product Description
Finder 22.21.8.230.4000 DIN Rail Power Relay offers a robust solution for electrical control applications, featuring a 230V AC coil voltage and a switching current capacity of 20A in a single-pole single-throw (SPST) configuration. This relay is designed with high-quality silver alloy (AgSnO2) contacts ensuring durability and reliable switching performance.
The relay is engineered for mounting on a standard 35mm DIN rail, with compact dimensions of 58.4 mm width, 84 mm length, and 58.4 mm height, making it suitable for tight electrical panel installations. It operates efficiently within an environmental temperature range of -40°C to +40°C, suitable for both indoor and outdoor applications.
With a coil resistance of 4.3 kΩ and low coil power consumption of 1.25W, the relay ensures energy-efficient operation. Its switching AC voltage rating of 400V AC and switching power capacity of 5kVA make it versatile for various power relay applications.
This Finder relay features insulation rated at 4kV between the coil and contacts to provide enhanced electrical safety and minimize voltage surge risks. Designed for a lifespan of 500,000 electrical cycles at rated load conditions in AC1, it promises long-term reliability.
Common uses include hotel room energy management systems, garden and night lighting control, streetlight and car park illumination control, office lighting management, and efficient pump control.
Features a coil voltage of 230V AC for reliable operation. Switching current capacity of 20A suitable for diverse electrical loads. Durable silver alloy contacts (AgSnO2) resist wear. Compact DIN rail mount design for easy installation.
Operates safely from -40°C to +40°C ambient temperatures. Energy-efficient coil power consumption of 1.25W. Insulation rated at 4kV between coil and contacts ensures safety. High switching AC voltage of 400V AC and power rating of 5kVA.
Electrical lifespan of 500,000 cycles guarantees durability. Capable of handling peak currents of up to 30A during transient loads.
This DIN rail power relay from Finder combines performance, durability, and safety for industrial, commercial, and automation applications. Explore our catalog for more Power Relays and electrical control components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC, ensuring reliable operation in electrical control applications.
This model has a maximum switching current capacity of 20A, making it suitable for demanding electrical loads.
It features a single-pole single-throw (SPST) contact configuration, which is common in many relay applications.
The dimensions of this relay are 58.4 mm in width, 84 mm in length, and 58.4 mm in height, allowing for compact installations.
The relay can switch AC voltage rated at a maximum of 400V AC, providing versatility for various applications.
The coil resistance is 4.3 kΩ with a coil power consumption of 1.25W, ensuring energy-efficient operation.
It operates safely within a temperature range of -40°C to +40°C, making it suitable for both indoor and outdoor environments.
This unit is designed for mounting on standard 35mm DIN rails, facilitating easy installation in electrical panels.
The insulation is rated at 4kV between the coil and contacts, enhancing electrical safety and minimizing surge risks.
The relay is designed for an electrical lifespan of 500,000 cycles at rated load conditions, ensuring long-term reliability.
This relay complies with RoHS standards, ensuring it meets environmental safety requirements.
