| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C33-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 33V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 325Ω |
| Typical Voltage Temperature Coefficient | 27.4mV/K |

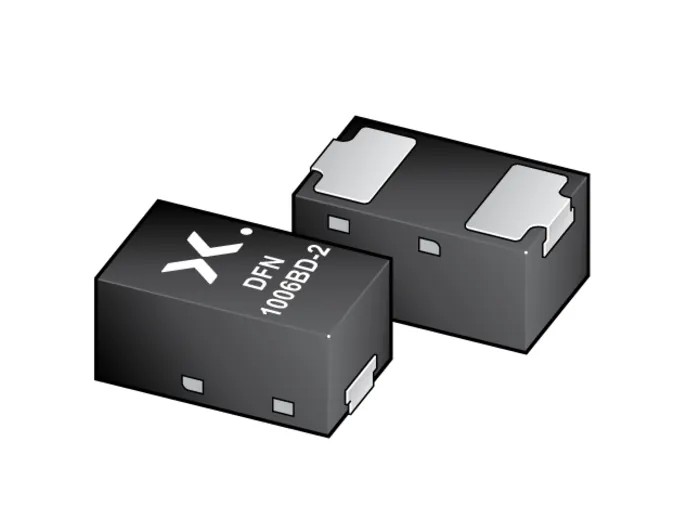

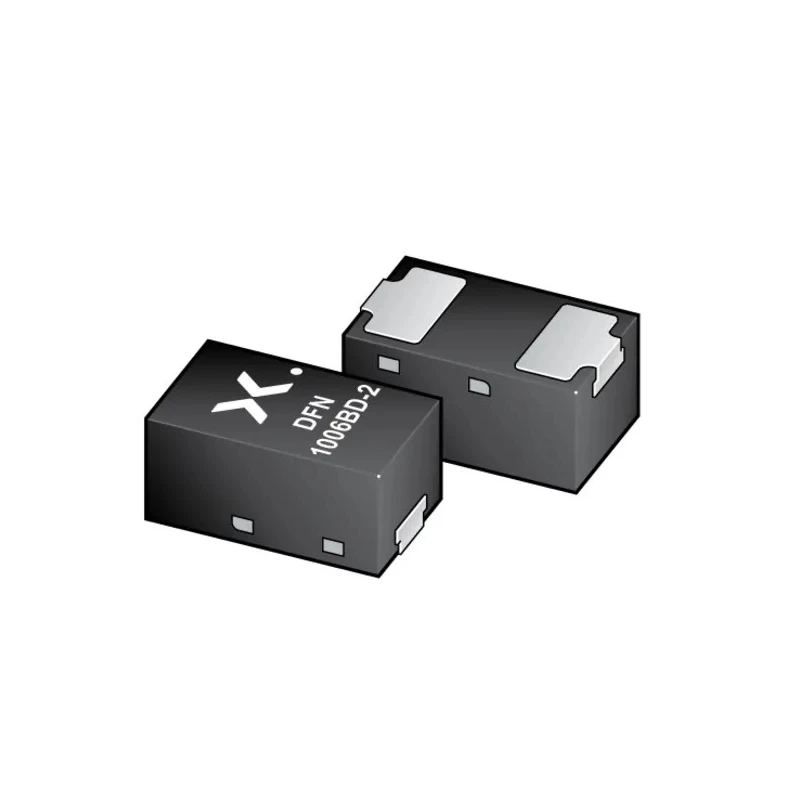

Nexperia BZX884S-C33-QYL is a general purpose single Zener diode designed to provide stable voltage regulation with a nominal Zener voltage of 33 V and maximum power dissipation of 365 mW. It comes in an ultra-small DFN1006BD-2 surface mount package with side-wettable flanks, making it suitable for compact designs in industrial and automotive electronics.
This diode is qualified according to AEC-Q101, ensuring high reliability and performance under automotive and harsh environmental conditions. It offers a Zener voltage tolerance of ±2%, low reverse leakage current, and a maximum Zener impedance of 325 Ω, optimizing voltage stability and efficiency in circuits.
The package dimensions include a height of 0.47 mm and a length of 1 mm, enabling space-efficient mounting on printed circuit boards. The wide operating temperature range from -55°C to 150°C further makes it ideal for applications requiring robust thermal performance.
Common applications include voltage regulation, voltage reference, and electronic protection in industrial, automotive, telecommunications, and consumer electronic devices. This diode supports automotive systems, manufacturing assemblies, and general electronics requiring precise voltage stabilization.
Surface mount design enhances PCB assembly efficiency and reliability. Automotive grade with AEC-Q101 certification for quality assurance. Compact form factor suitable for high-density electronic circuits. Stable voltage with ±2% tolerance ensures application accuracy.
Low leakage current minimizes power loss in sensitive electronics. Wide temperature range supports diverse industrial environments. General purpose use fits a wide range of semiconductor applications. Explore the broad selection of semiconductors and Zener Diodes from Nexperia on EnvMart for advanced electronic design and manufacturing needs.
