| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B75-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 75V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 500Ω |
| Typical Voltage Temperature Coefficient | 73.4mV/K |

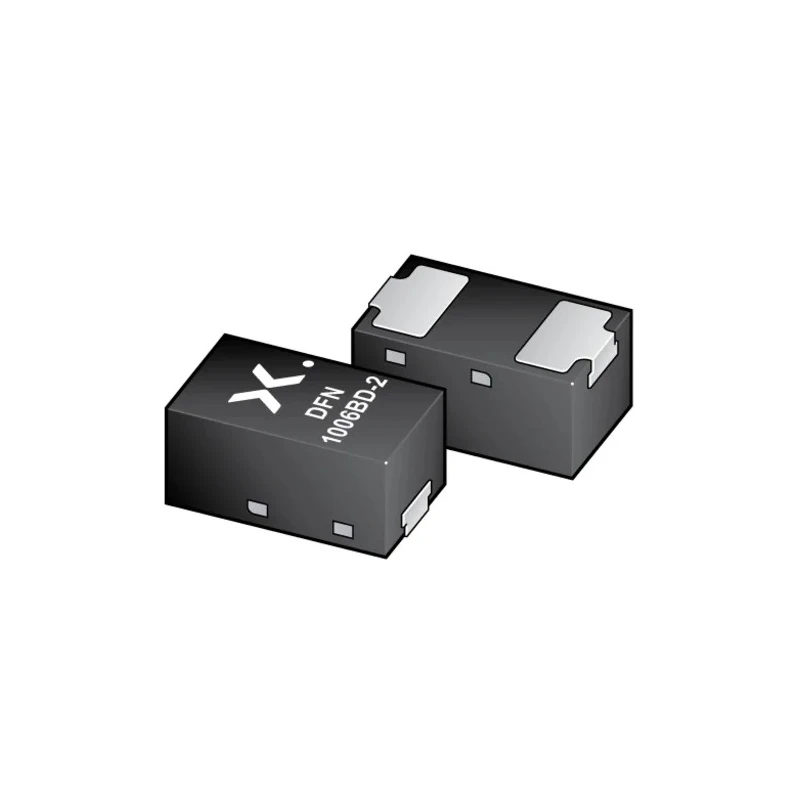

Nexperia BZX884S-B75-QYL is a general purpose 75-volt Zener diode featuring a maximum power dissipation of 365 milliwatts in a small, ultra-compact 2-pin DFN1006BD-2 surface mount package. This diode offers tight voltage tolerance of ±2% and excellent electrical stability making it suitable for use in industrial, automotive, and electronic equipment applications where reliable voltage regulation and protection are required.
The diode configuration is single element, and it has a maximum reverse leakage current of just 50 nanoamps, ensuring minimal power loss during operation. It operates efficiently within a broad temperature range from -55 degrees Celsius up to 150 degrees Celsius, providing robustness in harsh environments.
The package height is 0.47 millimeters and length is 1 millimeter, allowing for space-saving on circuit boards. The device complies with both AEC-Q101 automotive quality standards and RoHS environmental regulations, certifying it for automotive embedded electronics and green manufacturing requirements.
The BZX884S-B75-QYL diode is designed to handle a test current of 5 milliamps, with a maximum Zener impedance of 500 ohms, which helps maintain a stable voltage reference under varying load conditions.
Single diode configuration for voltage regulation. Nominal Zener voltage of 75 volts with ±2% tolerance. Maximum power dissipation of 365 milliwatts. Compact 2-pin surface mount DFN1006BD-2 package dimensions 1 x 0.47 mm.
Operating temperature range from -55°C to 150°C. Low reverse leakage current of 50 nanoamps. Test current of 5 milliamps for stable operation. Maximum Zener impedance of 500 ohms ensures voltage stability. AEC-Q101 qualified for automotive applications.
RoHS compliant for environmental safety.
This diode is widely used in automotive electronics, industrial automation, and consumer electronics for voltage regulation and protection. It is ideal for surface mount circuit designs where reliability, small size, and precision voltage control are required.
