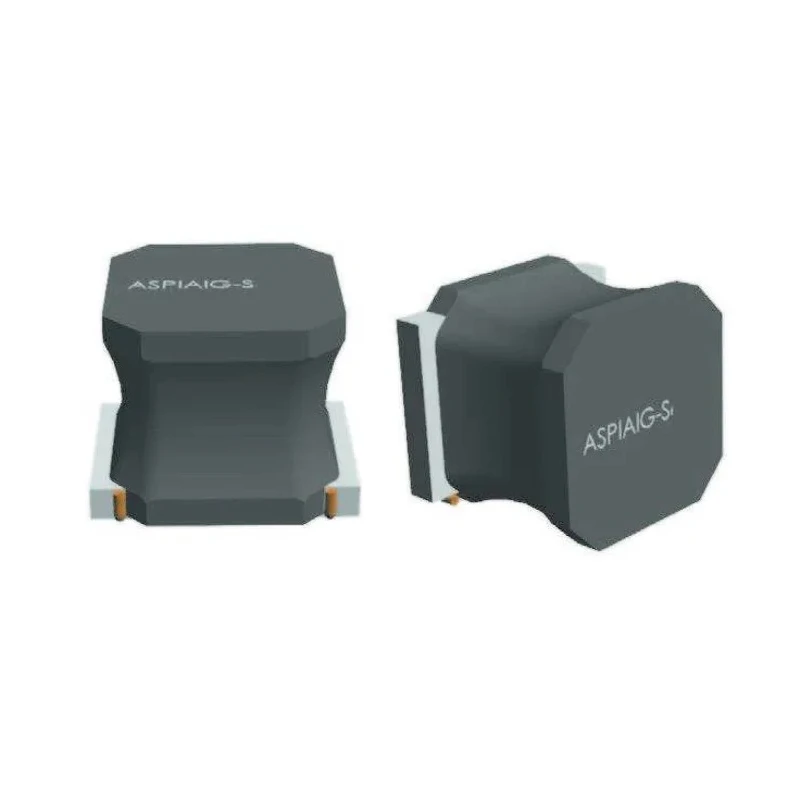

Abracon Compact Shielded Surface Mount Power Inductor 100 μH Ferrite Core 6mm x 5.5mm ASPIAIG-S6055-101M-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 5.5mm |
| Length | 6mm |
| Model | ASPIAIG-S6055-101M-T |
| Depth | 5.5mm |
| Series | ASPIAIG-SXXXX |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | ISO 9001-2015 |
| Package/Case | Surface Mount |
| Maximum DC Current | 1.25A |
| Pin Count | 2 |
| Inductance Tolerance | 20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Compact Shielded Surface Mount Power Inductor |
Key Features
- Provides a maximum DC current rating of 1.25 amperes.
- Compact dimensions of 6mm length and 5.5mm height and depth.
- Shielded construction reduces electromagnetic interference effectively.
- Operates reliably in temperature range from -40°C to 125°C.
- Inductance tolerance is ±20 percent ensuring performance consistency.
- Features a moulded, wire-wound ferrite core construction.
- Surface mount termination style with 2 pins for easy PCB integration.
- Manufactured to ISO 9001-2015 quality standards.
Product Description
Abracon ASPIAIG-S6055-101M-T is a compact shielded surface mount power inductor featuring a ferrite core designed for use in various electronic components where space saving and EMI reduction are critical.
This 100 microhenry (μH) inductor supports up to 1.25 amperes of DC current and has dimensions of 6mm in length, 5.5mm in height, and 5.5mm in depth. Its shielded construction effectively reduces electromagnetic interference, making it suitable for sensitive automotive body electronics, comfort systems, navigation, transportation, solar power, and lighting applications.
Built with high reliability wire-wound construction and moulded ferrite material, this inductor operates within a wide temperature range from -40°C to 125°C. It features a surface mount termination style with 2 pins allowing for efficient integration into printed circuit boards.
The product is manufactured adhering to ISO 9001-2015 standards and comes with an inductance tolerance of ±20% to guarantee consistent performance across various use cases. Maximum DC current 1.25 A. Length: 6 mm; Height: 5.5 mm; Depth: 5.5 mm.
Shielded surface mount design for EMI reduction. Ferrite core with wire wound construction. Operating temperature range: -40°C to 125°C. Moulded for mechanical stability. Compliance with ISO 9001-2015 quality standards. Suitable for automotive and industrial electronic applications.
This surface mount inductor is ideal for industrial, automotive, power electronics, and laboratory applications where compactness and EMI shielding are important. It provides a reliable solution for power conversion, filtering, and energy storage in complex electronic circuits.
Explore more Surface Mount Inductors and Abracon products on EnvMart to satisfy your electronic component design needs with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this power inductor is 100 microhenries (μH).
This model has a maximum DC current rating of 1.25 amperes.
The dimensions of this inductor are 6mm in length, 5.5mm in height, and 5.5mm in depth.
It operates reliably within a temperature range from -40°C to 125°C.
This power inductor features a compact shielded construction with a ferrite core and wire-wound design.
The surface mount termination style of this inductor has 2 pins for easy PCB integration.
The inductance tolerance for this model is ±20 percent.
This inductor is manufactured in accordance with ISO 9001-2015 quality standards.
It is suitable for automotive body electronics, comfort systems, navigation, transportation, solar power, and lighting applications.
The core material used in this inductor is ferrite.
The shielded construction effectively reduces electromagnetic interference, making it suitable for sensitive electronic applications.
This product is manufactured in India.
