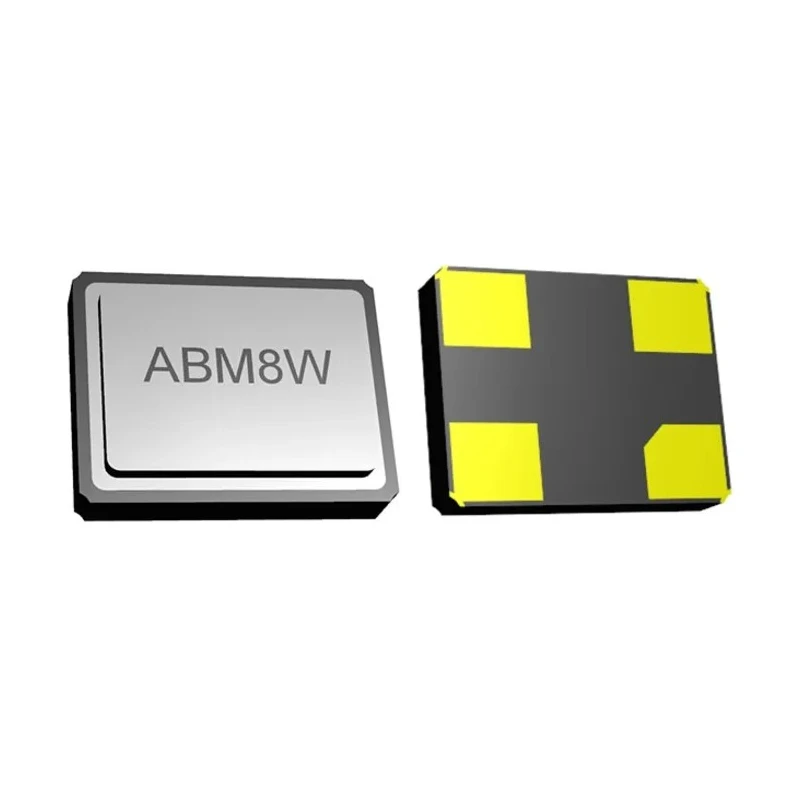

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.75 mm ±10 ppm ABM8W-12.0000MHZ-8-K1Z-T3

Abracon ABM8W-12.0000MHZ-8-K1Z-T3 12 MHz Crystal Unit is a surface mount quartz crystal optimized for IoT and low power applications such as wearables, Bluetooth/BLE modules, and wireless communication devices.

It features a low profile design with dimensions of 3.2 mm length, 2.5 mm width, and a maximum height of 0.75 mm.

The crystal is frequency-stable with a tolerance and stability of ±10 ppm. It operates within a temperature range from -40°C to 125°C, suitable for industrial and commercial environments.

The device has a 4-pin configuration and a standard load capacitance of 4 pF, providing precise oscillation frequency control. The series resistance of 100 Ω contributes to low power consumption and stable performance.

Its lead-free construction and RoHS compliance ensure environmentally friendly manufacturing.

Applications include Internet of Things (IoT) devices, wearable technology, Bluetooth and BLE communication systems, machine-to-machine connectivity, and ultra-low power microcontroller units.

This crystal unit operates at a standard frequency of 12 MHz. The surface mount design allows easy integration on PCBs. Features a load capacitance of 4 pF for precise frequency control. Compact dimensions of 3.2 mm length, 2.5 mm width, and 0.75 mm height.

Supports operating temperatures from -40°C to +125°C. Has a series resistance of 100 Ω ensuring stable oscillation. Seam-sealed quartz crystal construction for long-term reliability. Lead free and RoHS compliant.

This component is ideal for industrial electronics, laboratory instruments, telecommunications, automotive electronics, and other applications requiring reliable frequency control.
