Hammond 1590 Series Natural Lid Die Cast Aluminium Enclosure IP66 IK08 80mm x 221mm x 120.5mm 1590Z150

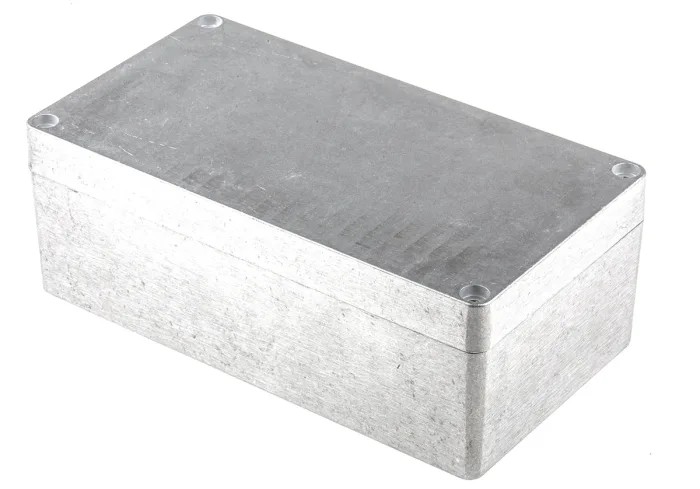

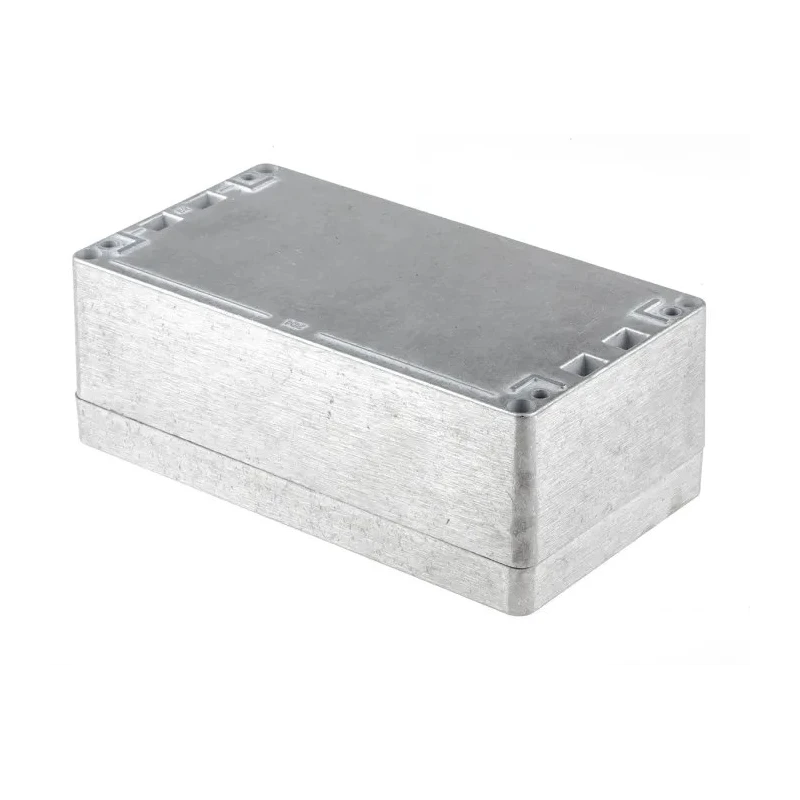

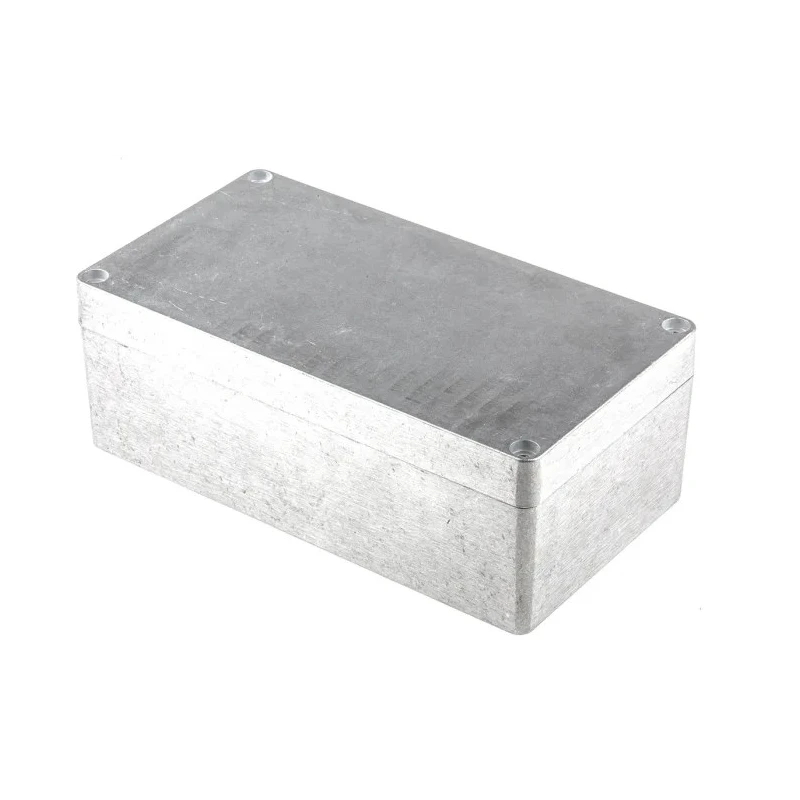

Hammond 1590Z150 is a high-quality Die Cast Aluminium Enclosure designed for general purpose electrical and electronic assemblies. It features a natural-coloured lid and body providing robust mechanical protection with an IK08 rating and environmental protection with an IP66 rating. The enclosure dimensions are 221 mm length, 120.5 mm width, and 80 mm height, suitable for housing multiple components securely.

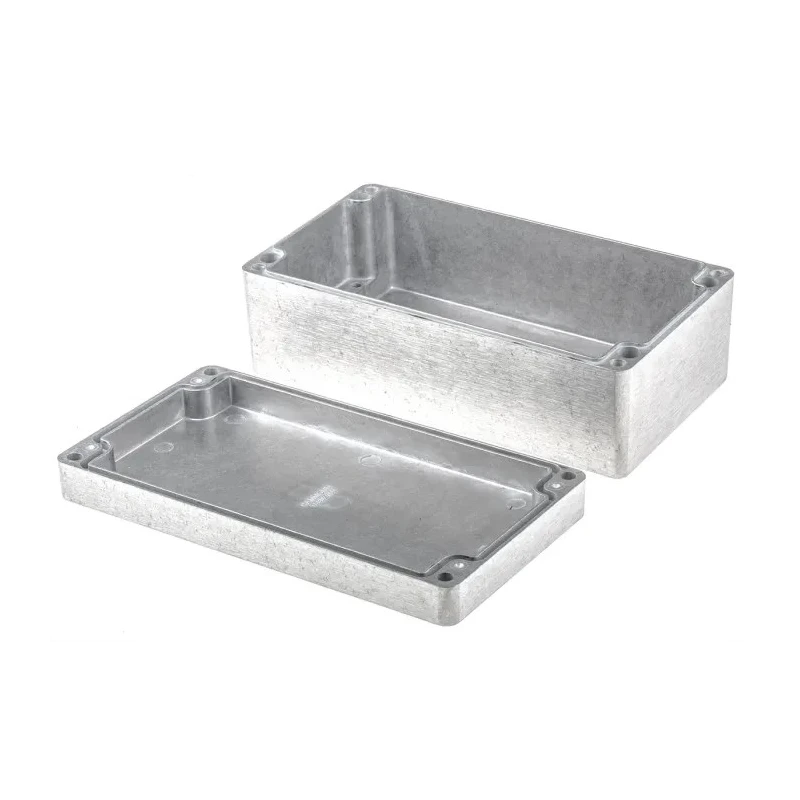

The enclosure has lap-joint construction with a 2° wall slope, making it ideal for PCB insertion and assembly. Constructed of rugged die cast aluminium with a vibra finish, it offers smooth edges for safety and solid durability for industrial use. The silicone gasket ensures effective sealing against dust and water ingress.

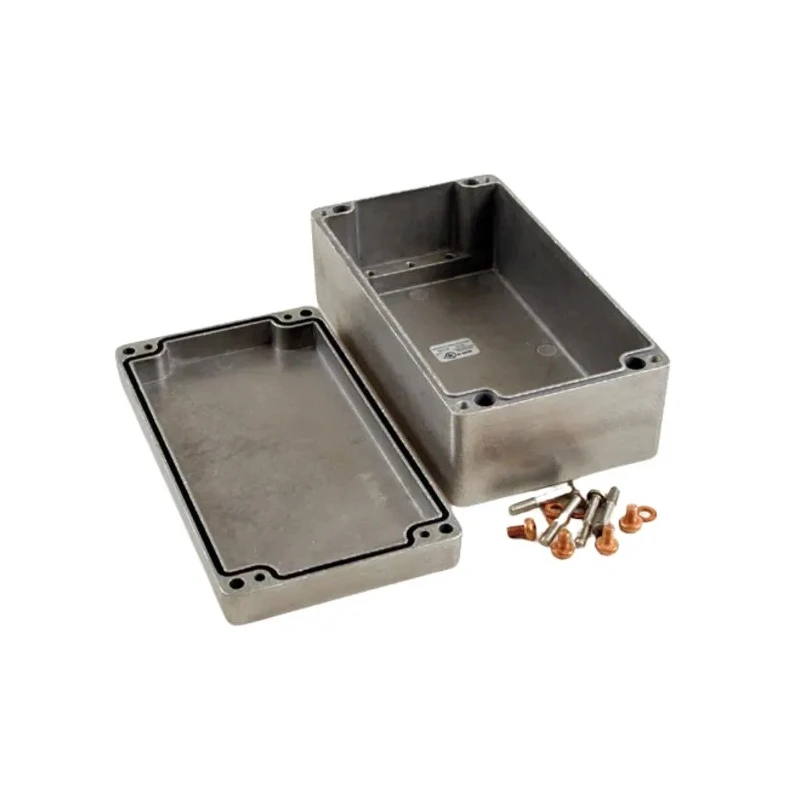

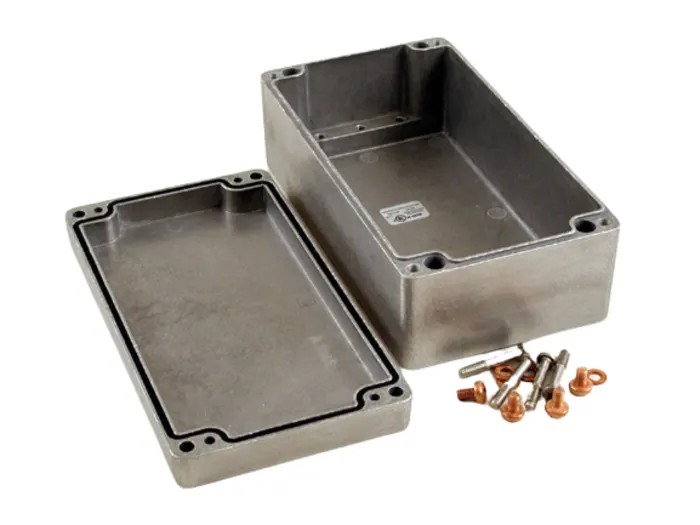

Equipped with four stainless steel machine screws for firm lid attachment, the enclosure withstands impacts and corrosion typical in demanding industrial settings. Through-holes on the back plate facilitate easy wall mounting, increasing installation flexibility.

This enclosure is shielded to reduce EMI and RFI interference, making it suitable for varied industrial applications such as packaging facilities, warehouses, seaports, and the railway industry. It complies with RoHS standards, ensuring environmentally responsible manufacturing.

Constructed from durable die cast aluminium for industrial robustness. IP66 rating ensures strong protection against dust and high-pressure water jets. IK08 rated impact resistance for mechanical protection. Features lap-joint construction with 2° wall slope for easy PCB mounting.

Natural coloured lid and body with silicone gasket for effective sealing. Includes four stainless steel machine screws to secure the lid. Vibra finish ensures smooth edges to prevent cuts and scrapes. Back through-holes allow effortless wall mounting installations.

Suitable for industrial environments like warehouses, packaging facilities, seaports, and railways. Explore the comprehensive range of Electrical Enclosures available at EnvMart to find ideal solutions tailored to your industrial and electronic protection needs.
