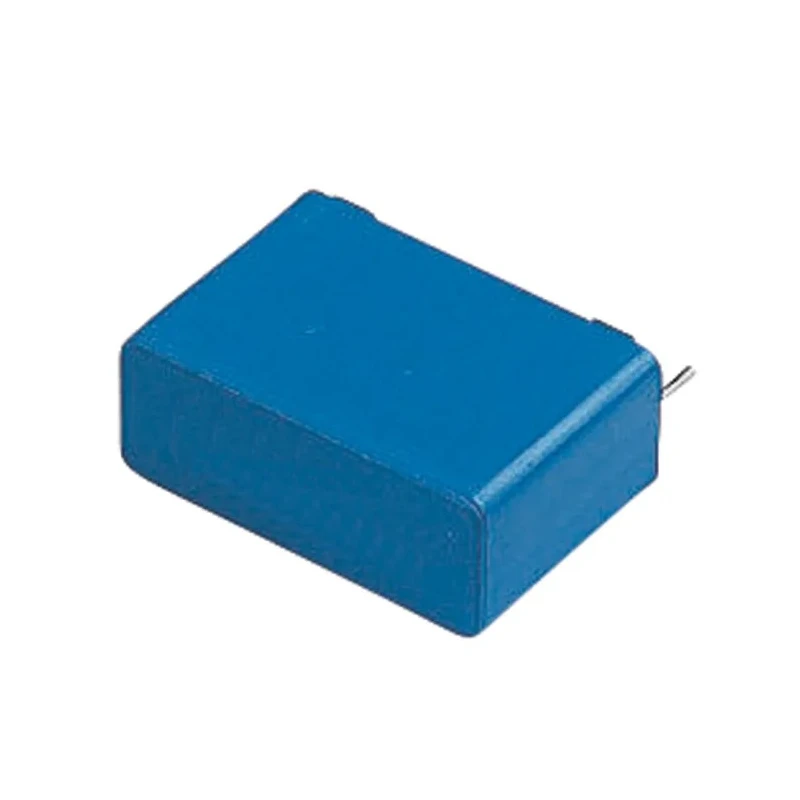

TDK B32523 Film Capacitor 470 nF 200V AC 400 V DC Through Hole 2-Pin Pitch 22.5mm B32523Q6474J000

Free Delivery in India | Lowest Global Shipping Charges

TDK B32523 Film Capacitor 470 nF 200V AC 400 V DC Through Hole 2-Pin Pitch 22.5mm B32523Q6474J000



Category Film Capacitors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	16mm
Length	26.5mm
Model	B32523Q6474J000
Width	7mm
Mount Type	Through Hole
Series	B32523
Maximum Operating Temperature	125°C
Capacitance	470nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	200V ac
Rated DC Voltage	400V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

The capacitor features a capacitance of 470 nanofarads for precise energy storage.
It supports a rated AC voltage of 200 volts and DC voltage up to 400 volts.
Designed with a through-hole mount type and 2 pins for secure PCB integration.
The lead pitch measures 22.5 millimeters to fit standard layouts.
Complies with automotive standard AEC-Q200 Rev D for enhanced quality and durability.
Operates safely up to a maximum temperature of 125 degrees Celsius.
Constructed with plastic casing and epoxy resin sealing for protection.
Measures 26.5 mm in length, 7 mm in width, and 16 mm in height for compact design.

Product Description

TDK B32523Q6474J000 Film Capacitor is a high-reliability electronic component designed for general blocking, coupling, decoupling, bypassing, and radio frequency interference (RFI) suppression applications. Featuring a capacitance of 470 nanofarads, it operates with a rated AC voltage of 200 V and rated DC voltage up to 400 V, suitable for automotive and industrial electronics requiring stable performance.

This particular film capacitor utilizes a through-hole mounting style with a lead pitch of 22.5 mm and includes 2 pins providing mechanical stability and ease of PCB installation. The component is certified to meet AEC-Q200 Rev D automotive standard, ensuring high pulse strength and enhanced contact reliability, making it ideal for automotive and demanding industrial applications.

The capacitor body measures 26.5 mm (length) by 7 mm (width) and 16 mm (height), with 0.8 mm lead diameters. It is encapsulated in a plastic case with an epoxy resin UL 94 V-0 flame-retardant sealing, offering robust insulation and environmental protection. The maximum operating temperature rating is 125°C which supports reliability in harsh operating conditions.

This capacitor is RoHS and UL approved, confirming compliance with international safety and environmental standards. Applications include use in automotive electronics, industrial controls, power supplies, and other electronic equipment where durability and electrical stability are critical.

The capacitor features a capacitance of 470 nanofarads for precise energy storage. It supports a rated AC voltage of 200 volts and DC voltage up to 400 volts. Designed with a through-hole mount type and 2 pins for secure PCB integration.

The lead pitch measures 22.5 millimeters to fit standard layouts. Complies with automotive standard AEC-Q200 Rev D for enhanced quality and durability. Operates safely up to a maximum temperature of 125 degrees Celsius. Constructed with plastic casing and epoxy resin sealing for protection.

Measures 26.5 mm in length, 7 mm in width, and 16 mm in height for compact design. Lead diameter is 0.8 mm ensuring stable soldering and connections.

This high-quality TDK film capacitor is suitable for use in industrial, automotive, manufacturing, and commercial electronic applications. Explore the selection of Film Capacitors on EnvMart for your component needs.
