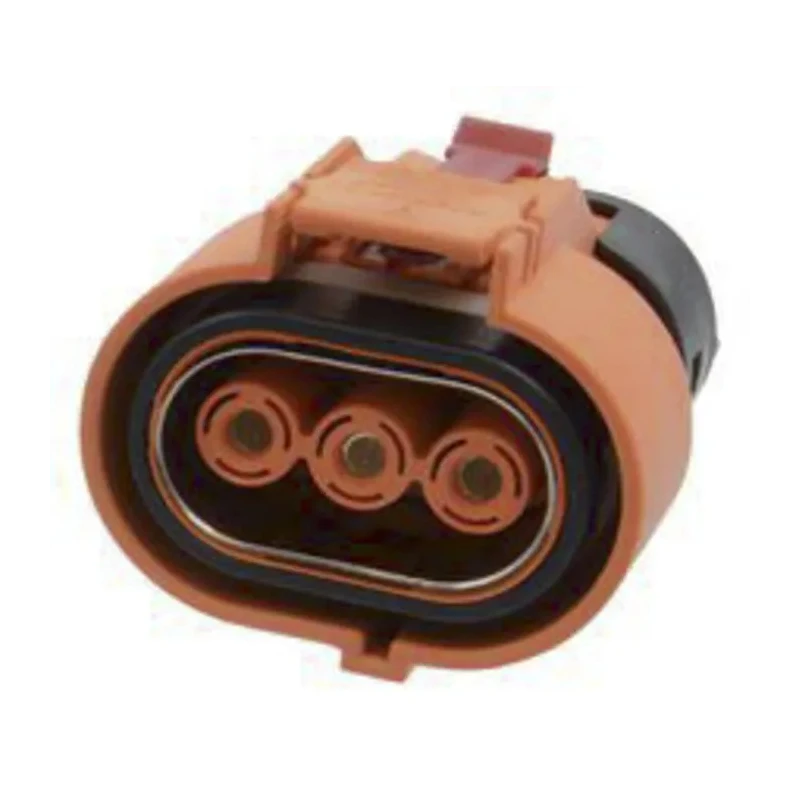

Amphenol Industrial EV Connector Epower Lite RADSOK Plug with HVIL Male 70A 800V IP67 ELP2Z04 / C10-738026-2ZS4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 36.8mm |
| Model | ELP2Z04 / C10-738026-2ZS4 |
| Depth | 57.8mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Plug with HVIL |
| Width | 41.8mm |
| Mount Type | Cable |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 10mm² |
| Operating Voltage | 800V |
| For Use With | 2 Position ePower-Lite Receptacle with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Z |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- The connector uses RADSOK technology for low resistance and high amperage performance.
- It supports a wire size of 10mm² and has a durable plastic housing in orange color.
- The connector is designed for straight orientation with crimp termination type.
- Rated for a minimum operating temperature of -40°C and a maximum of 125°C.
- Complies with IEC 60529 and UL 94 V-0 standards ensuring touch proof and flammability resistance.
- Compact and lightweight design suitable for electric vehicle and hybrid applications.
- Features Z coding and includes a CPA to prevent mis-mating.
- It has one row with two contacts and a pin diameter of 3.6mm.
Product Description
Amphenol Industrial ELP2Z04 / C10-738026-2ZS4 EV Connector Epower Lite RADSOK Plug with HVIL Male is a high-performance automotive electrical connector designed for electric and hybrid vehicle applications. Featuring a robust plastic housing and innovative RADSOK technology, it provides reliable current conduction at 70A with an operating voltage up to 800V. This connector is engineered for durability, withstanding temperatures from -40°C up to 125°C, ensuring suitability for harsh environments.
The compact size coupled with the IP67 waterproof rating guarantees protection against dust and water ingress, making it ideal for demanding industrial, automotive, and manufacturing uses. The connector features a Z coding and a CPA locking mechanism to prevent incorrect mating, enhancing safety and reliability.
Designed with one row and two contacts, it supports a wire size of 10mm² and uses crimp termination for secure connections. Compliance with IEC 60529 ensures touch proof safety, and UL 94 V-0 certification confirms flammability resistance. Its bright orange color housing and straight orientation facilitate easy identification and installation.
This connector is compatible with the 2 position ePower-Lite receptacle with HVIL, providing enhanced security and monitoring for electric vehicles. Its lightweight and compact form factor contribute to design flexibility in EV applications.
The product is manufactured in China and adheres to sustainability goals with its Better World Claim as a renewable energy solution, reflecting an environmentally responsible choice.
The connector incorporates RADSOK technology for superior electrical performance and reduced voltage drop. It is designed for over 100 mating cycles ensuring long operational life. Waterproof IP67 and touch proof IEC 60529 ratings provide reliable protection.
Flammability rating UL 94 V-0 enhances safety standards. The product is ideal for use in automotive, electric vehicle manufacturing, industrial assembly, and hybrid vehicle systems. Explore a range of high-quality connectors in the Electronics & Electricals category at EnvMart for your professional and industrial needs.
Explore more products in our EV Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this connector is 800V.
This model is rated for a current of 70A.
The dimensions of the connector are 36.8mm in height, 57.8mm in depth, and 41.8mm in width.
It supports a wire size of 10mm².
The connector uses a crimp termination type for secure connections.
The connector has an IP67 rating, providing protection against dust and water ingress.
It can operate in temperatures ranging from -40°C to 125°C.
It complies with IEC 60529 and UL 94 V-0 standards for touch proof safety and flammability resistance.
This model is classified as a RADSOK Plug with HVIL.
It features two contacts in a single row configuration.
The housing of the connector is orange in color, facilitating easy identification.
It is compatible with the 2 position ePower-Lite receptacle with HVIL.
