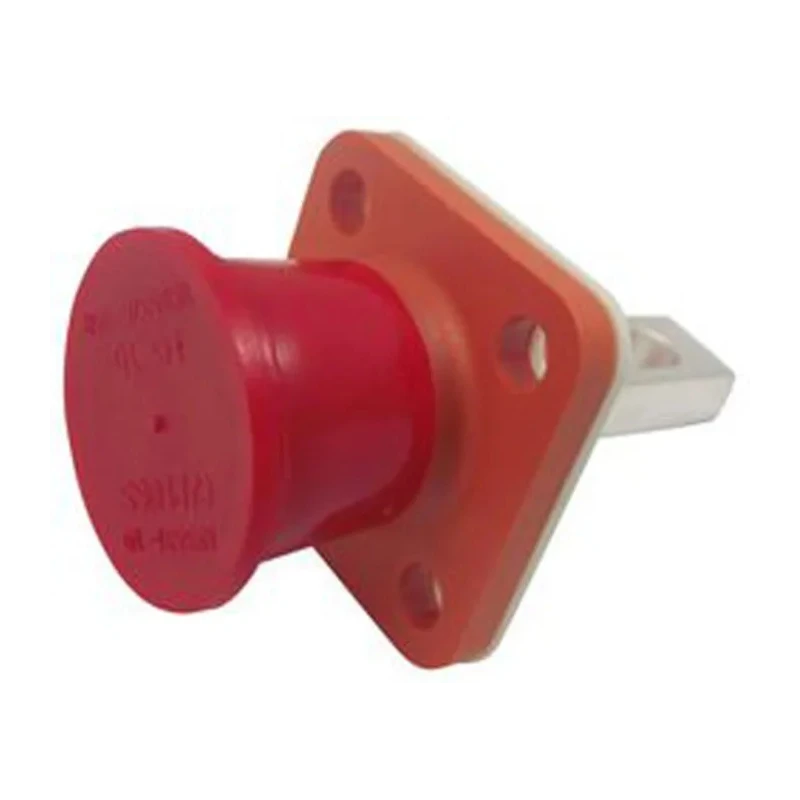

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 120A 1000V Panel Mount SLPRABPSO / C10-730187-010
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 120A |
| Height | 27mm |
| Model | SLPRABPSO / C10-730187-010 |
| Depth | 47.6mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 27mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Busbar |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 5.7mm |
| Number of Rows | 1 |
| Wire size | 16, 25mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Features a compact, quick mating compression lug with a panel mount flange for secure installation.
- Offers robust and environmentally sealed design with IP67 rating for waterproof performance.
- Implements R4 RADSOK technology ensuring high tensile strength and excellent conductivity.
- Constructed with copper alloy contacts and thermoplastic housing for durability.
- Designed to operate over a wide temperature range from -40°C to 125°C.
- Includes touch-proof functionality and spring locking for safe and secure connections.
- Ideal for electric vehicle, rail mass transit, medical, and battery management system applications.
- Complies with UL 94-V0 flame retardant standard for enhanced safety.
Product Description
Amphenol Industrial SLPRABPSO / C10-730187-010 SURLOK PLUS RADSOK EV Connector Female is a high-quality electrical connector rated for 120A current at 1000V. This panel mount connector is designed with advanced R4 RADSOK technology offering a highly conductive and mechanically robust connection suitable for demanding industrial environments.
The receptacle features a 5.7mm pin diameter and is made for termination with 25mm² wire sizes. Its orange thermoplastic housing provides exceptional durability and flame retardant properties conforming to UL 94-V0 standards. The connector ensures environmental protection with an IP67 rating, making it resistant to dust and water ingress.
Operating temperature ranges from -40°C to 125°C make it versatile across various climate conditions. The female connector has a busbar termination type with male contacts, designed in a straight orientation to facilitate easy and reliable mating.
Key benefits include touch proof safety, keyed design to prevent mismating, and spring locking to maintain secure connections under vibration and mechanical stresses. These features make it highly suitable for electric vehicle (EV) and hybrid electric vehicle (HEV) powertrains, rail mass transit systems, medical and process control instrumentation, and battery management systems.
Compact quick mating compression lug with panel mount flange. Highly conductive R4 RADSOK pin contact technology. Robust thermoplastic housing with UL 94-V0 flammability rating. Wide operating temperature range from -40°C to 125°C.
Environmental sealing to IP67 for dust and water protection. Touch proof and keyed design to prevent mismating. Spring locking mechanism for secure connections. Suitable for EV, rail mass transit, medical, and BMS applications.
Amphenol Industrial's SURLOK PLUS series connectors provide reliable and safe power connections in critical industrial and commercial applications, ensuring long service life and minimal maintenance. This product continues the legacy of precision engineering and high performance demanded in the EV connector market.
Explore the full Amphenol SURLOK PLUS connector range in EV Connectors category on EnvMart for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 120A.
It operates at a maximum voltage of 1000V.
The connector has an IP67 rating, ensuring it is protected against dust and water ingress.
The housing is made from thermoplastic, and the contacts are constructed from copper alloy.
It can operate within a temperature range of -40°C to 125°C.
It features a busbar termination type.
The pin diameter is 5.7mm.
This model is designed for panel mount installation.
It includes touch-proof functionality and a keyed design to prevent mismating, along with a spring locking mechanism for secure connections.
It is ideal for electric vehicle powertrains, rail mass transit systems, medical applications, and battery management systems.
The housing is orange in color.
It complies with the UL 94-V0 flame retardant standard.
