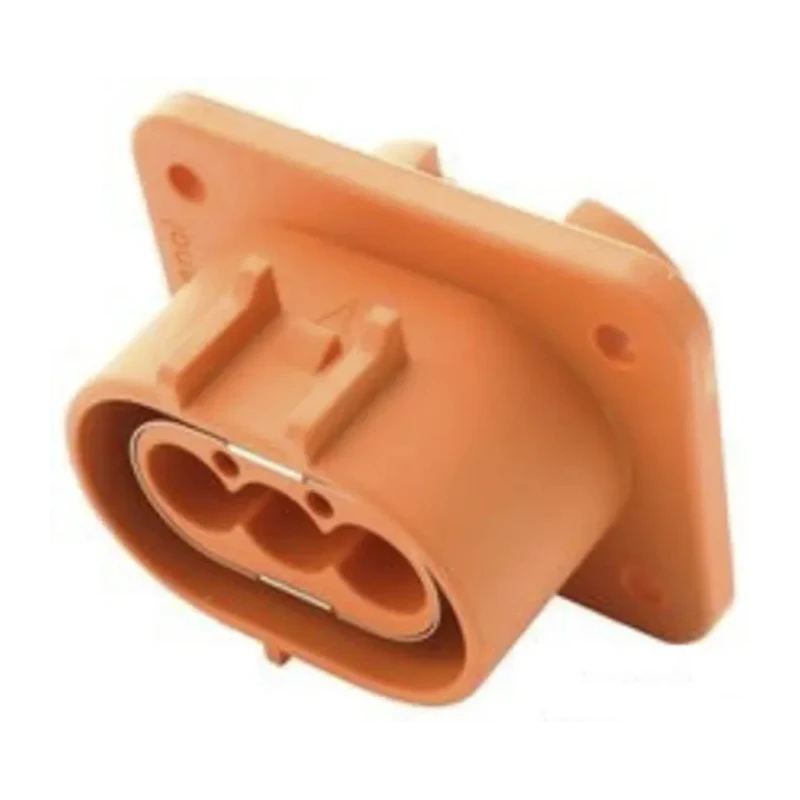

Amphenol Industrial Epower Lite RADSOK Receptacle with HVIL EV Connector Female 70A ELR3A04 / C10-737485-3AP4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 45mm |
| Model | ELR3A04 / C10-737485-3AP4 |
| Depth | 41mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Receptacle with HVIL |
| Width | 60mm |
| Mount Type | Panel Mount |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 10mm² |
| Operating Voltage | 800V |
| For Use With | 3 Position ePower-Lite Plug with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- Compact and lightweight hybrid connector suitable for EV and Hybrid vehicles.
- Supports operating current of 70A and voltage up to 800V for high efficiency.
- RADSOK technology ensures low resistance with higher amperage and lower temperature rise.
- Constructed with plastic housing, providing IP67 waterproof rating and UL 94 V-0 flammability compliance.
- Features crimp termination and a CPA to prevent mis-mating for secure connections.
- Designed for panel mount with a straight orientation and single row, three contacts configuration.
- Operates reliably between -40°C to 125°C, suitable for harsh environments.
- Completed with a vibrant orange color and type A key for easy identification.
Product Description
Amphenol Industrial ELR3A04 / C10-737485-3AP4 Epower Lite RADSOK Receptacle with HVIL EV Connector Female 70A is a compact and lightweight connector designed specifically for electric vehicle and hybrid applications. Featuring advanced RADSOK contact technology, this connector offers low contact resistance, high current carrying capability, and excellent reliability even in demanding environments.
The connector supports a maximum current of 70 amperes and an operating voltage of up to 800 volts, making it suitable for a wide range of automotive electrical systems. It has a robust plastic housing rated to IP67 for waterproof performance and meets UL 94 V-0 flammability standards, ensuring safety and durability. The connector also incorporates a Crimp termination type and a CPA locking mechanism to prevent mis-mating during installation and maintenance.
This panel mount connector has a straight orientation with a single row containing three contacts. The design utilizes a 3.6 mm pin diameter compatible with 10mm² wire size, supporting reliable and secure electrical connections. Operating temperatures range from -40°C to 125°C, allowing use in harsh and variable environmental conditions.
The orange-colored housing and type A key facilitate easy identification and correct mating with compatible ePower-Lite plugs featuring 3 position with HVIL. This product is classified as a Better World Product contributing to renewable energy solutions.
Compact and Lightweight Connector for EV applications. Supports 70A current and 800V operating voltage. RADSOK technology enables low resistance and high durability. IP67 waterproof rating and UL 94 V-0 flammability standard compliant.
CPA locking system prevents connector mis-mating. Panel mount with straight orientation and 3 contacts. Operates in temperatures from -40°C to 125°C. Plastic housing in orange color with Type A key. Compatible with 10mm² wire size and 3.6mm pin diameter.
Meets IEC 60529 standards for touch proof safety.
This EV connector is ideal for use in automotive, industrial, and renewable energy sectors requiring reliable, high-performance electrical connections. It supports applications in electric and hybrid vehicles, manufacturing, and other commercial environments where durability and safety are essential.
Discover more about Amphenol Industrial connectors and explore comprehensive electrical components in the EnvMart catalog.
Explore more products in our EV Connectors category.
