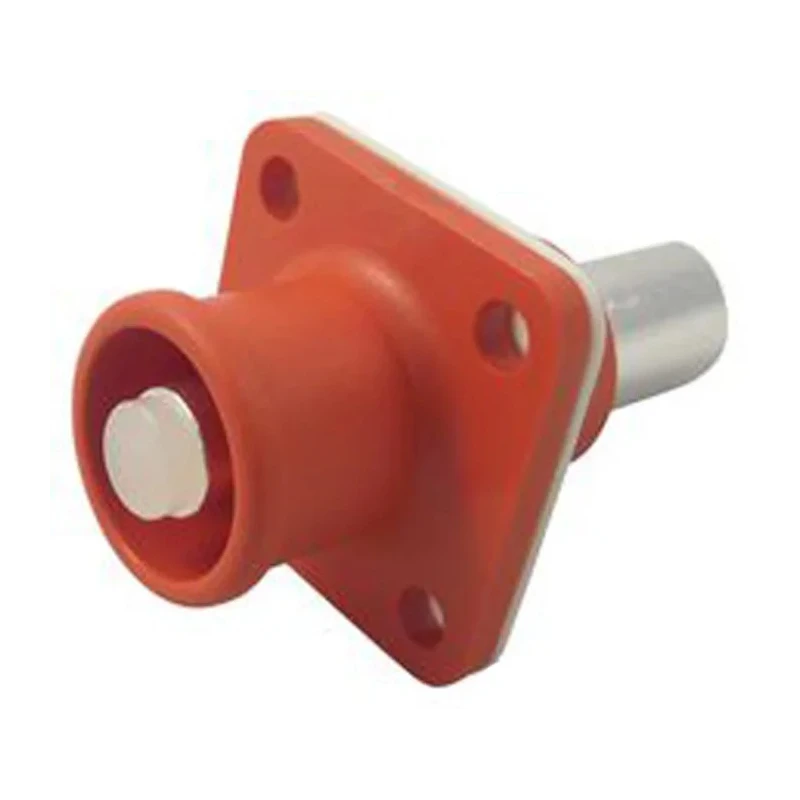

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 300A, Panel Mount, IP67, 1000V SLPIRC70CPSO0 / C10-730191-0700
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 300A |
| Height | 35mm |
| Model | SLPIRC70CPSO0 / C10-730191-0700 |
| Depth | 69.2mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 35mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 70mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Supports 300A continuous current capacity for heavy-duty usage.
- Keyed design prevents mismating and ensures secure connections.
- Rated for 1000V operating voltage for high-voltage applications.
- IP67 rated for protection against dust and water ingress.
- Flame retardant housing with UL 94-V0 rating ensures safety and durability.
- Constructed with copper alloy contacts and thermoplastic housing for reliability.
- Operates in temperatures from -40°C to 125°C for extreme environments.
- Designed to terminate 70mm² wires with crimp termination method.
Product Description
Amphenol Industrial SLPIRC70CPSO0 / C10-730191-0700 is a SURLOK PLUS RADSOK EV connector female rated for 300A continuous current and 1000V operating voltage. It features a panel mount flange providing a secure and reliable installation. The connector is designed to mate with SurLok 1-Position plugs and terminates 70mm² cables with a crimp termination type.
This connector employs R4 RADSOK technology to ensure high tensile strength and excellent conductivity through a large contact surface area. Its copper alloy contacts and thermoplastic housing deliver robust durability and electrical performance.
With a flammability rating of UL 94-V0 and an IP67 ingress protection rating, this EV connector is suitable for harsh environments, providing resistance to dust and water intrusion. The device operates reliably in a temperature range from -40°C to 125°C, making it ideal for demanding industrial and automotive applications.
The connector is keyed to prevent mismating and equipped with spring locking and a straight orientation to simplify assembly and maintenance. Its orange color offers high visibility and easy identification in installations.
Applications include electric vehicles (EV/HEV), rail mass transit systems, process control equipment, medical devices, and battery management solutions. The compact, quick mating compression lug design ensures a dependable connection within these critical systems.
Supports 300A continuous current capacity for heavy-duty usage. Keyed design prevents mismating and ensures secure connections. Rated for 1000V operating voltage for high-voltage applications. IP67 rated for protection against dust and water ingress.
Flame retardant housing with UL 94-V0 rating ensures safety and durability. Constructed with copper alloy contacts and thermoplastic housing for reliability. Operates in temperatures from -40°C to 125°C for extreme environments.
Designed to terminate 70mm² wires with crimp termination method. Features spring locking and straight orientation for ease of installation. Ideal for electric vehicles, rail mass transit, process control, medical, and battery management systems.
Explore more quality EV Connectors and electrical components suitable for industrial, automotive, and energy storage applications with EnvMart's extensive product catalog.
