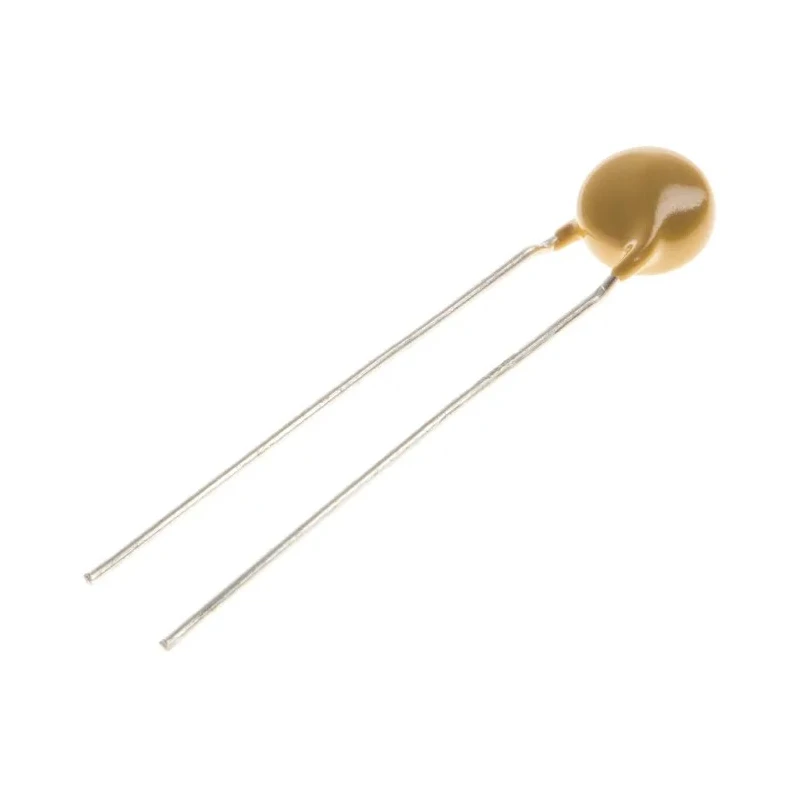

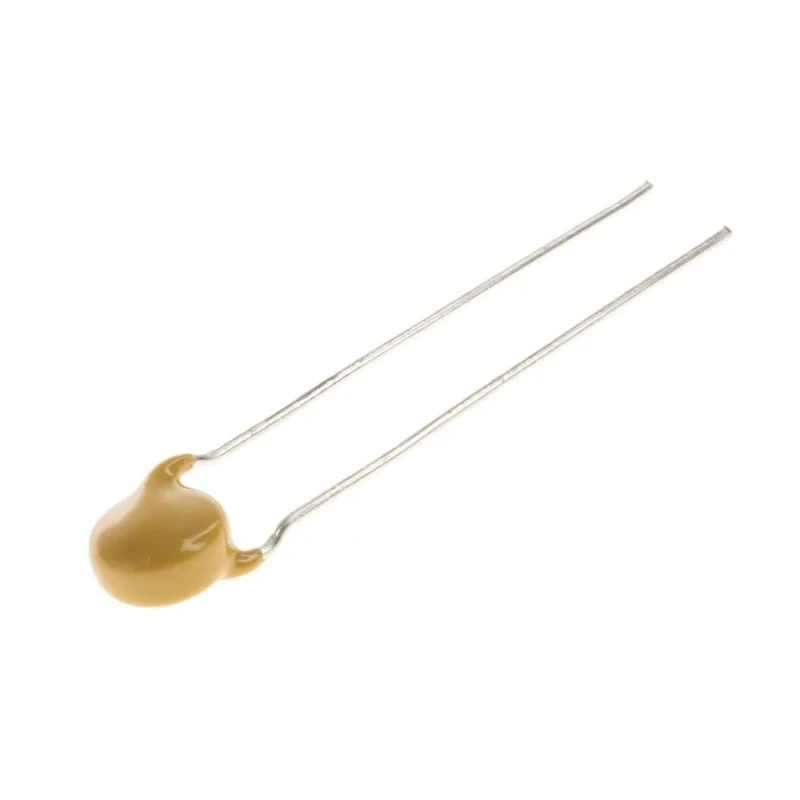

Vishay Metal Oxide Varistor 430 V Varistor Voltage 695 V Clamping Voltage 5 A Clamping Current 55 pF VDRS05C275BSE

Vishay VDRS05C275BSE Metal Oxide Varistor is a reliable surge protection device designed to safeguard electronic circuits against voltage spikes. Featuring a varistor voltage of 430 V and a clamping voltage of 695 V, this varistor effectively limits voltage surges to safe levels, protecting sensitive components.

With a capacitance of 55 pF, it efficiently suppresses transient voltages while maintaining circuit integrity. The device supports a maximum clamping current of 5 A and a surge current capacity of 400 A, offering robust circuit protection in various industrial and commercial applications.

Its compact physical dimensions include a 7 mm diameter and 33 mm length, with a uniform thickness and depth of 4.9 mm, enabling seamless integration into printed circuit boards with a lead pitch of 5 mm. The varistor operates reliably within a temperature range from -40°C to 85°C, rendering it suitable for harsh environments.

This component complies with industry standards such as DVE, CSA, RoHS, and UR, assuring high safety and environmental standards. It is ideal for use in surge protection circuits in industrial power supplies, consumer electronics, telecommunications, and other electronic equipment requiring transient voltage suppression.

Capacitance of 55 pF for effective transient suppression. Maximum clamping current of 5 A ensures robust protection. Compact size with 7 mm diameter and 33 mm length enables easy PCB mounting. Wide operating temperature range from -40°C to 85°C for versatile applications.

Standards compliance including DVE, CSA, RoHS, and UR ensures quality and safety. Energy rating of 12 Joules for effective surge energy absorption. Lead pitch of 5 mm facilitates standard PCB hole spacing. Maximum AC voltage rating of 275 V and DC voltage of 350 V.

Thickness and depth of 4.9 mm support stable assembly and durability.

This Vishay Metal Oxide Varistor is suitable for industrial, laboratory, commercial, and manufacturing surge protection needs. Its reliable transient voltage suppression and compact design make it indispensable for maintaining operational integrity and protecting circuit components against damage from electrical surges.
