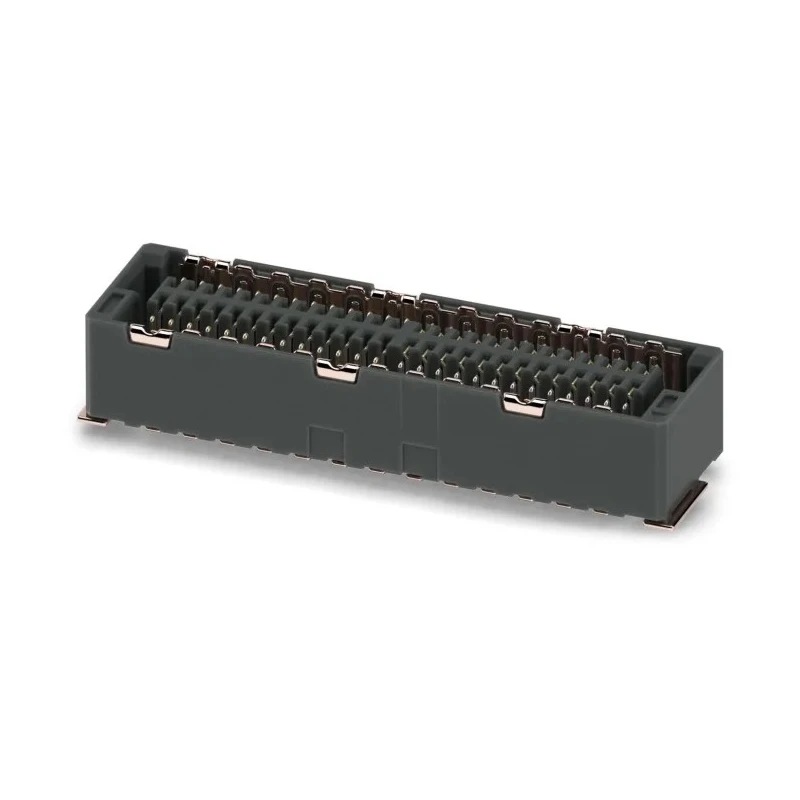

Phoenix Contact FP 0 8/ 52-FV-SH 4 85 Series Vertical Edge Connector Female, Surface Mount, 52-Contacts, 0.8 mm 1043713
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Orientation | Vertical |
| Current | 1.7A |
| Model | 1043713 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Robustness | ScaleX technology for high tolerance compensation and protection of contacts |
| Standards/Approvals | RoHS, IEC, UL, JEDEC, EN |
| Contact Plating | Gold |
| Number of Contacts | 52 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Vertical orientation for edge connector applications.
- Comprises 52 gold-plated contacts for high signal integrity.
- Nominal current rating of 1.7 A at 20°C.
- Pitch of 0.8 mm across two rows for compact PCB layouts.
- Surface mount type ensures secure solder connections.
- Contact material is copper alloy with gold plating for corrosion resistance.
- Operating temperature range from -55°C to 125°C.
- Housing constructed of liquid crystal polymer providing durability.
Product Description
The Phoenix Contact 1043713 vertical edge connector female series FP 0 8/ 52-FV-SH 4 85 offers 52 gold-plated copper alloy contacts arranged in 2 rows with a 0.8 mm pitch, mounted via surface mount technology (SMD). It is designed for high reliability electronic connections demanding robust current rating of 1.7 A at 20°C and withstands voltages up to 500 V.
This connector operates efficiently within a wide temperature range from -55°C to 125°C, making it suitable for harsh industrial, commercial, and electronic applications.
The housing material is made of liquid crystal polymer, providing excellent mechanical strength and long-term durability. ScaleX technology incorporated in this connector ensures high tolerance compensation and enhanced protection of contacts, preserving transfer quality over extended operational periods.
The compact 0.8 mm pitch with two rows allows flexible device design, supporting various numbers of positions, designs, and stack heights. It is suitable for industrial electronics manufacturing, PCB assembly, and other electronic component interfacing tasks.
This connector complies with RoHS, IEC, UL, JEDEC, and EN standards, ensuring environmental compliance and safety. Vertical orientation for edge connector applications. Comprises 52 gold-plated contacts for high signal integrity.
Nominal current rating of 1.7 A at 20°C. Pitch of 0.8 mm across two rows for compact PCB layouts. Surface mount type ensures secure solder connections. Contact material is copper alloy with gold plating for corrosion resistance.
Operating temperature range from -55°C to 125°C. Rated voltage up to 500 V ensuring robust performance. Housing constructed of liquid crystal polymer providing durability. Robust ScaleX technology enables high tolerance compensation and contact protection.
The product is ideal for electrical, electronic component manufacturing, and industrial PCB applications. Explore more quality connectors in the Edge Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating of this connector is 1.7 A at 20°C.
This model can operate at a maximum temperature of 125°C.
It has a total of 52 contacts.
The pitch of the contacts is 0.8 mm across two rows.
This connector uses surface mount technology for installation.
The contacts are made of copper alloy with gold plating, and the housing is constructed from liquid crystal polymer.
The rated voltage of this connector is up to 500 V.
It incorporates ScaleX technology for high tolerance compensation and enhanced protection of contacts.
This connector complies with RoHS, IEC, UL, JEDEC, and EN standards.
The orientation of this edge connector is vertical.
This connector is suitable for industrial electronics manufacturing, PCB assembly, and electronic component interfacing tasks.
The country of origin for this connector is India.
