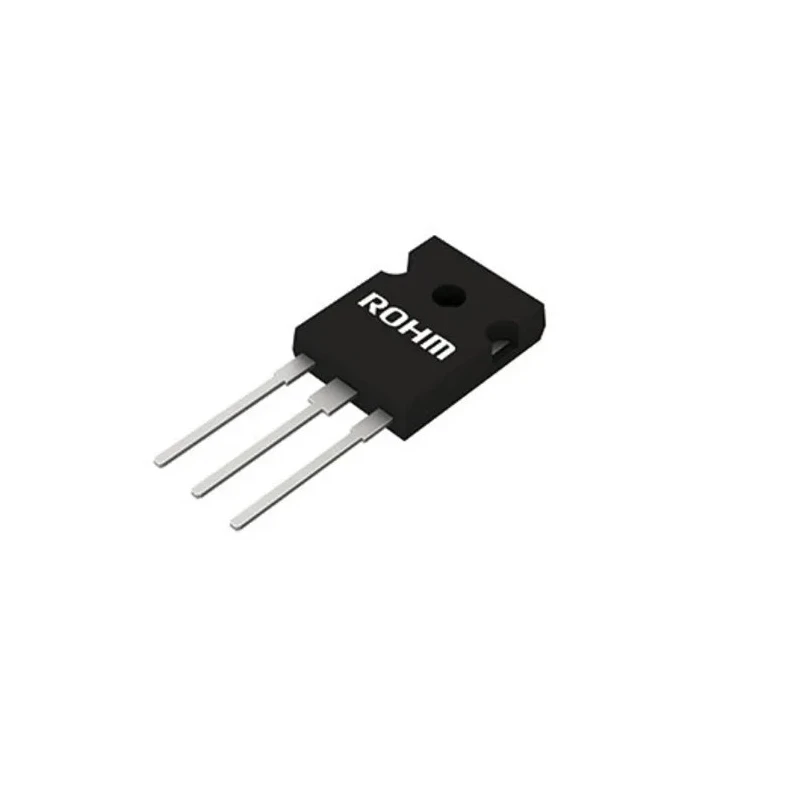

ROHM 1200 V 20 A Rectifier & Schottky Diode Schottky 3-Pin TO-247N SCS220KE2GC11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | SCS220KE2GC11 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247N |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 1.6V |
Key Features
- Designed for through-hole mounting with TO-247N package type.
- Maximum continuous forward current of 20 amperes.
- High peak reverse repetitive voltage rated at 1200 volts.
- Single diode configuration with Schottky rectifier type.
- Operates within a wide temperature range from -55°C to 175°C.
- Supports high surge current of up to 320 amperes.
- Low peak reverse current of 200 microamperes enhances efficiency.
- Maximum forward voltage drop of 1.6 volts for reduced power losses.
Product Description
The ROHM SCS220KE2GC11 is a high-quality Rectifier & Schottky Diode engineered for use in power electronic circuits requiring robust and efficient switching behavior. Encapsulated in the through-hole TO-247N package, this 3-pin Schottky diode supports a maximum continuous forward current of 20 A and a peak reverse voltage rating of 1200 V, making it suitable for demanding industrial environments.
This device offers a single diode configuration with a low forward voltage drop of 1.6 V, which minimizes power dissipation and thermal stress in switching power supplies, solar inverters, motor drives, air conditioners, and electric vehicle chargers.
Operational reliability is ensured across a broad temperature range from -55°C to 175°C, accommodating both cold startup and high-temperature conditions in industrial applications. The diode also supports peak non-repetitive forward surge currents up to 320 A, providing robustness against transient currents.
Thanks to its short recovery time and reduced temperature dependence, the SCS220KE2GC11 enables high-speed switching capabilities essential for modern power systems. Designed for through-hole mounting with TO-247N package type.
Maximum continuous forward current of 20 amperes. High peak reverse repetitive voltage rated at 1200 volts. Single diode configuration with Schottky rectifier type. Operates within a wide temperature range from -55°C to 175°C.
Supports high surge current of up to 320 amperes. Low peak reverse current of 200 microamperes enhances efficiency. Maximum forward voltage drop of 1.6 volts for reduced power losses. Complies with RoHS environmental standards.
Typical industrial use cases for this diode include integration into switch mode power supplies, uninterruptible power supplies, solar panel inverters, motor control drives, air conditioner units, and electric vehicle (EV) charging equipment. Its robust construction and wide operating parameters make it well suited for both commercial and industrial environments.
Choose the ROHM SCS220KE2GC11 for reliable, efficient rectification in your power electronics projects. Explore more semiconductor and Schottky Diode options within our extensive range on EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 20 amperes.
The peak reverse repetitive voltage rating is 1200 volts.
This model supports through-hole mounting.
The operating temperature range is from -55°C to 175°C.
The maximum forward voltage drop is 1.6 volts.
It can handle peak non-repetitive forward surge currents up to 320 amperes.
The peak reverse current is rated at 200 microamperes.
The package type for this diode is TO-247N.
This model uses a single diode configuration with a Schottky rectifier type.
Yes, it complies with RoHS environmental standards.
This diode is suitable for applications such as switch mode power supplies, solar inverters, and electric vehicle chargers.
The pin count for this diode is 3.
