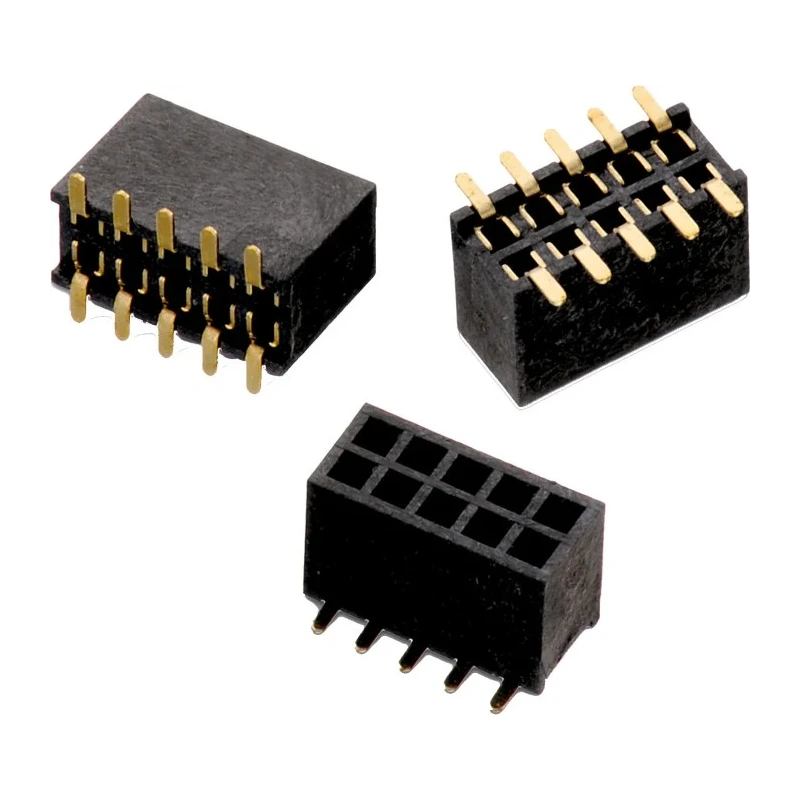

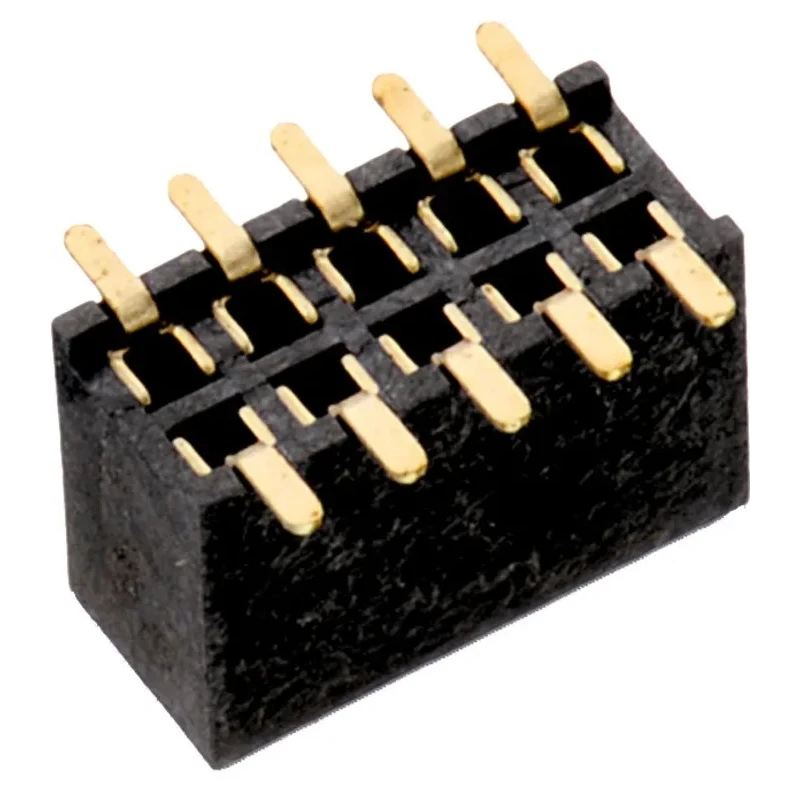

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 20-Contact 2 Row 1.27 mm Pitch Solder 62302021021
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | PA9T |
Key Features
- The socket features 20 female contacts arranged in 2 rows.
- The pitch between pins is 1.27 millimeters for precise connections.
- It operates reliably from -40°C up to 105°C.
- The contact material is copper alloy with gold plating for enhanced conductivity.
- The housing is made from durable polyamide ensuring stable mounting.
- Designed to withstand 500 V AC voltage providing robust insulation.
- The connector system supports board-to-board interfaces.
- Termination is by solder, suitable for surface mount technology.
Product Description
Wurth Elektronik 62302021021 WR-PHD Series Straight Surface PCB Socket is a precision engineered 20-contact, 2-row PCB socket with a 1.27 mm pitch and solder termination type designed for board-to-board connection applications.
This socket supports a current rating of 1A and a voltage rating of 100V, making it suitable for a variety of electronic device assemblies. Its polyamide (PA9T) insulator material combined with copper alloy female contacts plated in gold ensures excellent electrical performance alongside mechanical durability.
The component operates efficiently across a broad temperature range from -40°C to +105°C, providing reliable service under harsh environments. It withstands a voltage of up to 500 VAC, guaranteeing secure insulation and minimal signal interference.
The WR-PHD series socket is surface mount mounted with a straight orientation, and its standard row pitch matches the 1.27 mm pin pitch of the sockets. The compact design with a height of 4.50 mm facilitates use in tight PCB layouts, often found in industrial electronics, telecommunications equipment, and embedded systems.
The socket features 20 female contacts arranged in 2 rows. The pitch between pins is 1.27 millimeters for precise connections. Operating temperature range from -40°C to 105°C ensures durability. Copper alloy contacts with gold plating provide excellent conductivity.
Polyamide housing offers mechanical strength and high insulation. Rated for 1A current and 100V operating voltage. Withstanding voltage up to 500 V AC for safety compliance. Surface mount solder termination ensures stable PCB assembly.
Connector system supports reliable board-to-board interfacing. Manufactured in China with consistent quality standards.
This PCB socket is ideal for use in electronic manufacturing, industrial automation, communication equipment assembly, and laboratory instrumentation requiring reliable and precise board-to-board interconnections.
Explore more PCB Socket solutions and electronic components through EnvMart for comprehensive industrial and commercial use.
