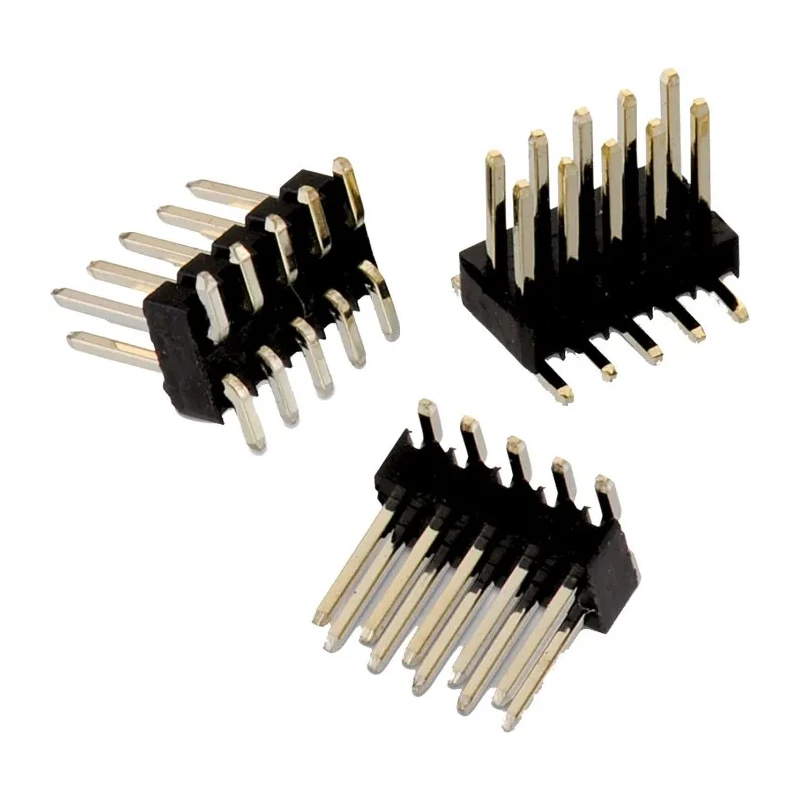

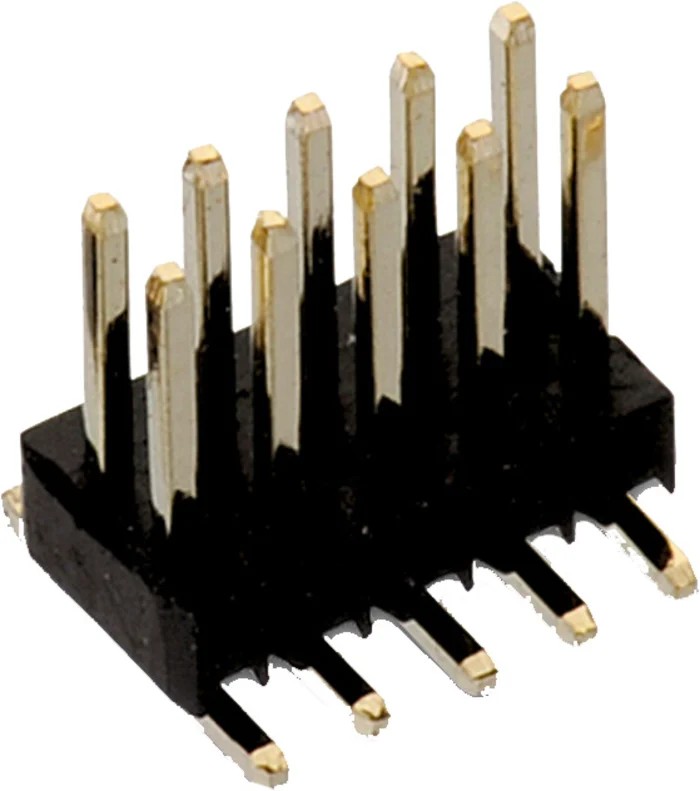

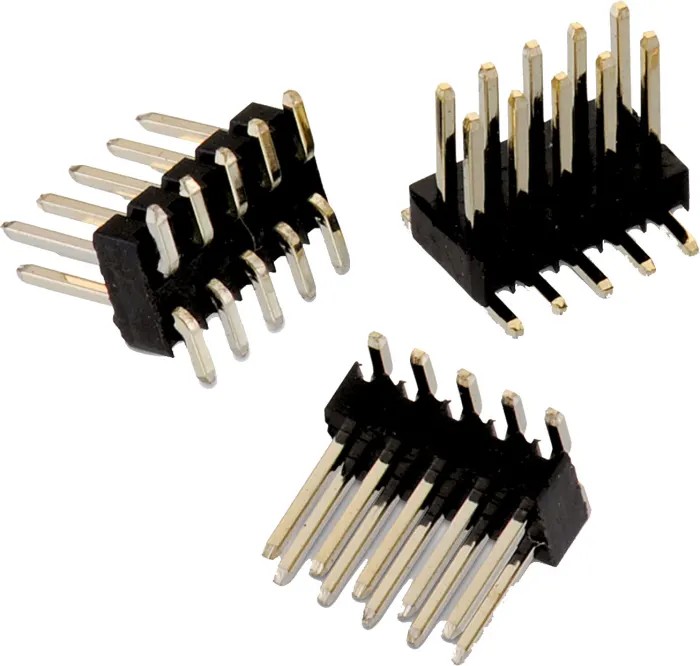

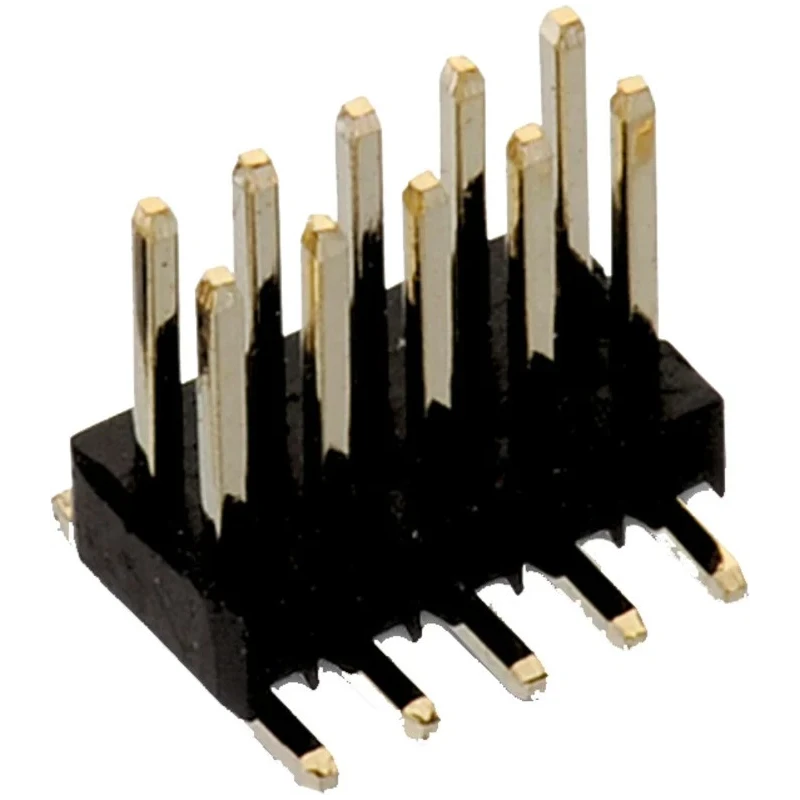

Wurth Elektronik WR-PHD Series Straight Surface PCB Header 40 Contacts 1.27 mm Pitch 2 Row Unshrouded 62104021021
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | PA9T |
Key Features
- Features 40 male contacts arranged in 2 straight rows.
- Pitch spacing of 1.27 mm ensures compact design.
- Constructed with a polyamide housing for durability.
- Gold-plated copper alloy contacts for reliable conductivity.
- Suitable for operating temperatures from -40°C to 105°C.
- Unshrouded design for easy solder termination.
- Surface mount type for PCB installation.
- Supports a nominal current rating of 1A.
Product Description
Wurth Elektronik 62104021021 is a WR-PHD Series Straight Surface PCB Header featuring 40 contacts with 1.27 mm pitch and 2 rows designed for board-to-board connection applications. This unshrouded male connector offers high reliability through its gold-plated copper alloy contacts and robust polyamide housing that withstands operating temperatures ranging from -40°C to 105°C.
The connector supports a nominal current rating of 1A withstanding voltages up to 100V and AC dielectric strength of 500V, providing secure and stable electrical connections on PCBs. Its surface mount solder termination type ensures efficient mounting onto PCB surfaces, suitable for industrial electronics, telecommunications, and embedded system assemblies.
The insulator is made from PA9T material providing thermal resilience and mechanical stability. The straight orientation and two-row configuration make it ideal for compact board designs and complex layouts requiring board-to-board signal transmission.
40 male contacts arranged in a dual-row straight configuration. 1.27 mm pitch facilitating precise and dense PCB layouts. Polyamide housing provides electrical insulation and heat resistance. Gold plating on copper alloy contacts improves conductivity and corrosion resistance.
Operating temperature range from -40°C to +105°C suits diverse environmental conditions. Surface mount technology enables automated PCB assembly. Withstands 500 V AC voltage, ensuring safety under transient conditions. Ideal for use in industrial, telecommunications, and electronic equipment manufacturing.
This product is manufactured in China and is provided new, ensuring quality and conformance to Wurth Elektronik standards. Wurth Elektronik WR-PHD Series PCB Headers offer a reliable solution for high-density board-to-board connectivity required in modern electronic designs.
Explore additional Wurth Elektronik electronics components and connectors on EnvMart for comprehensive industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header have a pitch of 1.27 mm, facilitating compact and precise PCB layouts.
This model features 40 male contacts arranged in 2 straight rows.
The maximum operating temperature for this connector is 105°C, making it suitable for various environmental conditions.
This PCB header uses surface mount technology for installation onto PCB surfaces.
It supports a nominal current rating of 1A, ensuring reliable electrical connections.
The contacts are made from gold-plated copper alloy, while the housing is constructed from polyamide, providing electrical insulation and heat resistance.
This model has a withstanding voltage of 500 V (AC), ensuring safety under transient conditions.
The connector has a straight orientation, which is ideal for board-to-board connections in compact designs.
It utilizes solder termination, which is suitable for automated PCB assembly processes.
The minimum operating temperature for this connector is -40°C, allowing it to function in a wide range of environments.
This PCB header is suitable for applications in industrial electronics, telecommunications, and embedded system assemblies.
