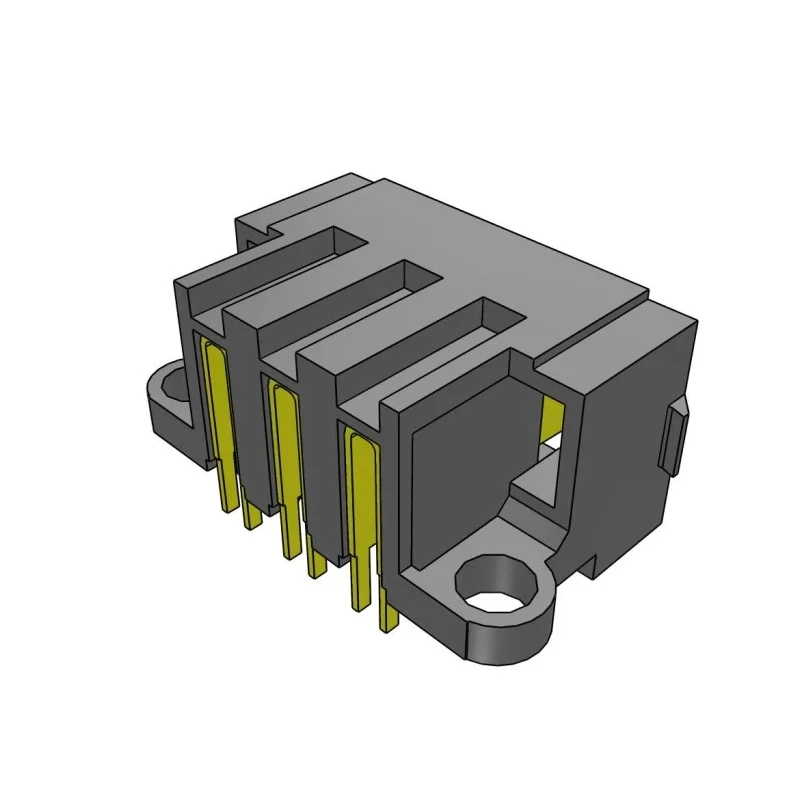

Samtec MPT Series Right Angle Through Hole PCB Header 3 Contacts 5 mm Pitch 1 Row Shrouded MPT-03-01-01-L-RA-SD
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 575V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 28.8A |
| Model | MPT-03-01-01-L-RA-SD |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | MPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 5mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with Liquid Crystal Polymer housing for enhanced durability.
- Features copper alloy contacts with gold plating for improved conductivity and corrosion resistance.
- Supports a current rating of 28.8 A per contact for high power applications.
- Designed with a 5 mm row pitch and solder termination type for secure mounting.
- Operates reliably within -55°C to 125°C temperature range.
- Right angle orientation ensures compact PCB layouts.
- Designed for through hole mounting to provide sturdy mechanical and electrical connections.
- Available as a shrouded male connector, enhancing connection safety and preventing damage.
Product Description
Samtec MPT-03-01-01-L-RA-SD is a high-quality shrouded right angle through hole PCB header featuring three contacts with a 5 mm pitch and a single row configuration. This connector is designed for board-to-board connectivity in various electronic applications.
The housing is made from durable Liquid Crystal Polymer, providing mechanical strength and thermal stability. The copper alloy contact material is plated with gold to ensure excellent electrical conductivity and corrosion resistance, suitable for demanding industrial environments.
The connector supports a continuous current of 28.8 A per contact and can operate over a wide temperature range from -55°C to 125°C, making it ideal for harsh conditions in industrial, manufacturing, and electronics assembly settings.
The right angle orientation minimizes PCB footprint while maintaining excellent electrical performance. The through hole mount type guarantees robust mechanical retention during soldering, ensuring dependable performance over the product lifespan.
This shrouded male header enhances connection integrity by protecting contacts from mechanical damage and accidental shorting. It is RoHS compliant and lead-free solderable, supporting environmentally responsible manufacturing processes.
Constructed with Liquid Crystal Polymer housing for enhanced durability. Features copper alloy contacts with gold plating for improved conductivity and corrosion resistance. Supports a current rating of 28.8 A per contact for high power applications.
Designed with a 5 mm row pitch and solder termination type for secure mounting. Operates reliably within -55°C to 125°C temperature range. Right angle orientation ensures compact PCB layouts. Designed for through hole mounting to provide sturdy mechanical and electrical connections.
Available as a shrouded male connector, enhancing connection safety and preventing damage.
This product is ideal for industrial electronics, manufacturing equipment, commercial power connectors, and laboratory instrumentation requiring robust and high power PCB connections.
Explore more PCB Headers and connectors at EnvMart for your diverse engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 28.8 A per contact, making it suitable for high power applications.
It operates reliably within a temperature range of -55°C to 125°C, suitable for harsh conditions.
The housing is made from Liquid Crystal Polymer, and the contacts are copper alloy with gold plating for improved conductivity and corrosion resistance.
The Samtec MPT-03-01-01-L-RA-SD features a 5 mm pitch between contacts.
This unit has three contacts arranged in a single row configuration.
It is designed for through hole mounting, providing sturdy mechanical and electrical connections.
The header is designed with a right angle orientation, which helps minimize PCB footprint.
Yes, it is RoHS compliant and lead-free solderable, supporting environmentally responsible manufacturing processes.
It uses a solder termination type for secure mounting on the PCB.
This connector is ideal for industrial electronics, manufacturing equipment, commercial power connectors, and laboratory instrumentation requiring robust PCB connections.
The contacts are male, designed for board-to-board connectivity.
It has a voltage rating of 575V, making it suitable for various electronic applications.
