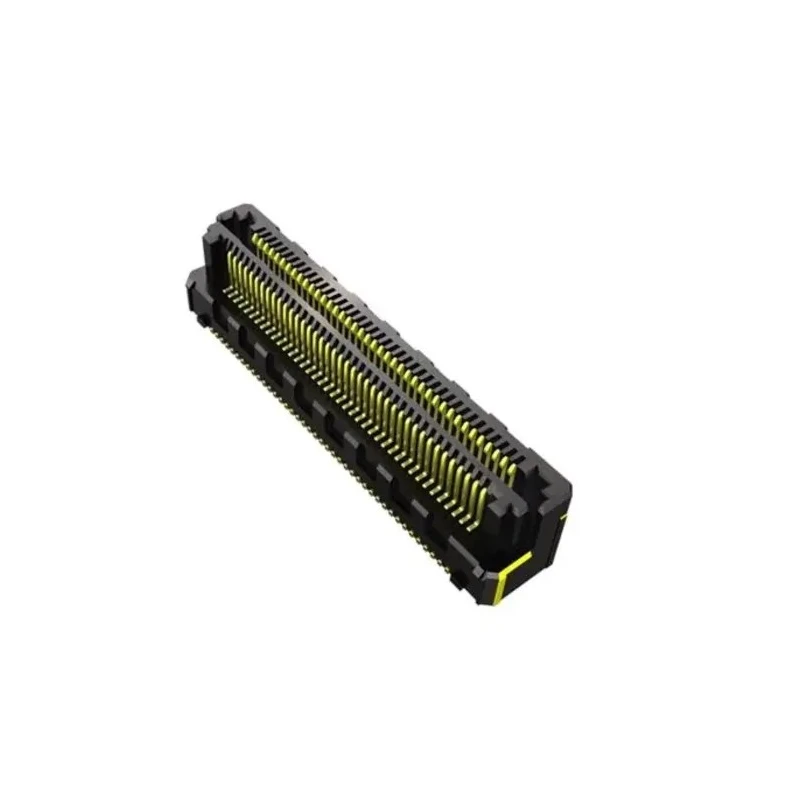

Samtec LSHM Series Vertical Surface PCB Header 60 Contact 0.5mm Pitch 2 Row Shrouded LSHM-130-06.0-F-DV-A-N-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160, 226V ac |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2A |
| Model | LSHM-130-06.0-F-DV-A-N-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | LSHM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- This PCB header features a shrouded design for enhanced connection security.
- It includes 2 rows with 30 pins per row for high-density applications.
- The contacts are made from phosphor bronze with gold plating for superior conductivity.
- Housing material is high-quality liquid crystal polymer, ensuring durability.
- It supports operating temperatures ranging from -55°C to 125°C.
- The termination type is solder, suitable for stable assembly.
- This connector handles a current of 2A and voltages of 160 to 226V AC.
- The pitch between contacts is 0.5 mm, ideal for compact electronic designs.
Product Description
Samtec LSHM-130-06.0-F-DV-A-N-K-TR is a vertical surface mount PCB header from the LSHM series, featuring 60 contacts spaced at 0.5 mm pitch across 2 rows. This shrouded connector is engineered to provide secure board-to-board connections for high-speed applications.
The connector housing is made of liquid crystal polymer, offering excellent mechanical strength and thermal resistance suitable for demanding environments. Contact materials are phosphor bronze with a gold plating, ensuring reliable electrical conductivity and resistance to corrosion.
With a current rating of 2A and an AC voltage capacity between 160 and 226 volts, this connector supports moderate power applications while maintaining a compact form factor. Its termination type is solder, facilitating robust mounting on printed circuit boards.
Designed to operate reliably in extreme temperatures from -55°C up to 125°C, this PCB header meets the needs of various industrial, electronic, and manufacturing environments. The connector’s vertical orientation and shrouded design reduce the risk of misalignment and enhance connection stability.
Ideal for electronic components, power connectors, and PCB assembly processes, the Samtec LSHM series header is commonly used in industrial electronic projects, telecommunications, and computing hardware.
This PCB header features a shrouded design for enhanced connection security. It includes 2 rows with 30 pins per row for high-density applications. The contacts are made from phosphor bronze with gold plating for superior conductivity.
Housing material is high-quality liquid crystal polymer, ensuring durability. It supports operating temperatures ranging from -55°C to 125°C. The termination type is solder, suitable for stable assembly. This connector handles a current of 2A and voltages of 160 to 226V AC.
The pitch between contacts is 0.5 mm, ideal for compact electronic designs. Explore the comprehensive range of PCB Headers and connectors available at EnvMart for optimized electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch between the contacts is 0.5 mm, making it suitable for compact electronic designs.
This model features a total of 60 contacts, arranged in 2 rows with 30 pins per row.
The maximum operating temperature is 125°C, allowing it to function in demanding environments.
This connector uses a solder termination type, suitable for stable assembly on printed circuit boards.
The contacts are made from phosphor bronze with gold plating, while the housing is constructed from liquid crystal polymer.
It has a current rating of 2A, suitable for moderate power applications.
This model can handle voltages between 160V and 226V AC.
The Samtec LSHM-130-06.0-F-DV-A-N-K-TR is a shrouded connector, which enhances connection security.
The orientation of this model is vertical, facilitating board-to-board connections.
The minimum operating temperature is -55°C, allowing it to operate in extreme conditions.
It is commonly used in industrial electronic projects, telecommunications, and computing hardware.
The country of origin for this PCB header is India.
