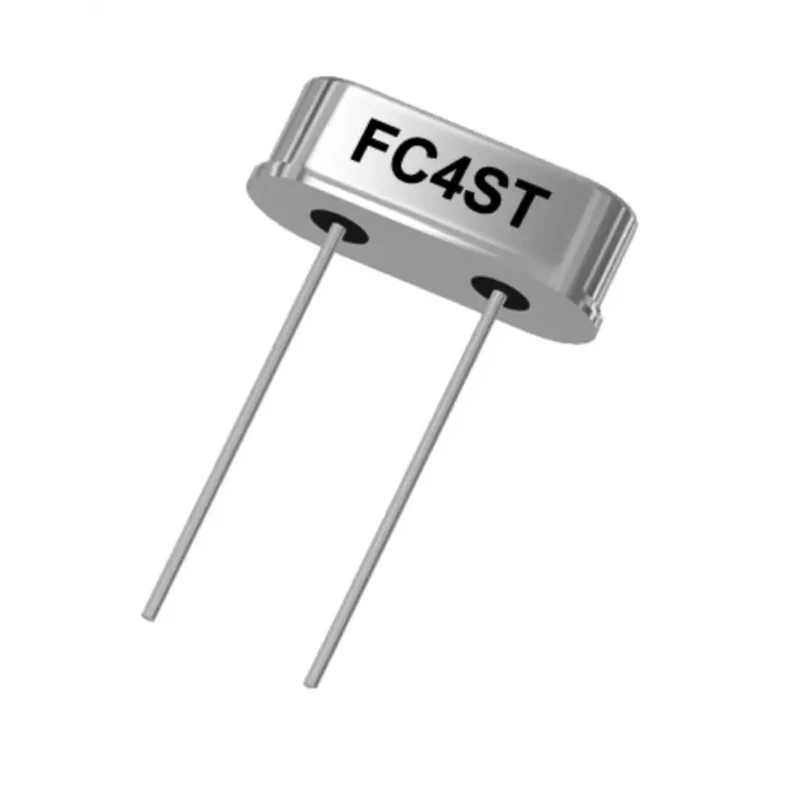

Abracon 4 MHz Through Hole Crystal HC-49 2-Pin ±30 ppm Frequency Tolerance FC4STCBMF4.0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3.6mm |
| Length | 11.35mm |
| Model | FC4STCBMF4.0 |
| Packaging | Tape & Reel |
| Width | 4.64mm |
| Mount Type | Through Hole |
| Series | FC4ST |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 4MHz |
| Load Capacitance | 20pF |
| Fox Electronics 4MHz Crystal ±30ppm HC-49-SLF 2-Pin 11.35 x 4.65 x 3.6mmBrand | Fox Electronics |
Key Features
- This crystal is designed for through hole mounting with HC-49 package type.
- It features a frequency stability of ±50 ppm over an operating temperature range from -20°C to 70°C.
- The crystal has a pin count of 2 and precise dimensions of 11.35 mm length, 4.64 mm width, and 3.6 mm height.
- It complies with RoHS standards and includes resistance weld seal termination with Sn/Ag3.0/Cu0.5 finish.
- This product is supplied on tape & reel packaging for easy assembly.
Product Description
The Abracon FC4STCBMF4.0 is a 4 MHz through hole crystal unit designed for precise frequency control in electronic systems. It utilizes a HC-49 package with 2 pins, suitable for standard through hole PCB mounting configurations.
The crystal offers a standard frequency of 4 MHz with a tight frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, ensuring reliable performance in various industrial and electronic applications. It operates effectively within a temperature range from -20°C to 70°C, making it suitable for a broad range of environments.
Constructed with a resistance weld seal and termination finish comprising Sn, Ag3.0, and Cu0.5, the crystal ensures durability and consistent electrical characteristics. It has a load capacitance of 20 pF and a shunt capacitance of approximately 7 pF, which contributes to its stable oscillation frequency.
The physical dimensions are 11.35 mm length, 4.64 mm width, and 3.6 mm height, fitting industry-standard PCB layouts. The 2-pin configuration simplifies connection, allowing for easy integration into passive and active electronic circuits.
This crystal unit complies with RoHS standards, ensuring it meets environmental safety requirements. It is packaged on tape & reel, facilitating automated PCB assembly processes typical in industrial manufacturing, telecommunications, and electronic instrumentation.
This crystal is designed for through hole mounting with HC-49 package type. It features a frequency stability of ±50 ppm over an operating temperature range from -20°C to 70°C. The crystal has a pin count of 2 and precise dimensions of 11.35 mm length, 4.64 mm width, and 3.6 mm height.
It complies with RoHS standards and includes resistance weld seal termination with Sn/Ag3.0/Cu0.5 finish. This product is supplied on tape & reel packaging for easy assembly.
This Abracon crystal unit is ideal for industrial, commercial, and electronic testing uses where accurate timing and frequency stability are critical, such as in telecommunications devices, embedded controllers, and consumer electronics.
Explore more high-quality electronic components and Crystal Units at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 4 MHz.
It operates effectively within a temperature range from -20°C to 70°C.
This model has a frequency tolerance of ±30 ppm.
The dimensions of this crystal are 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height.
This crystal has a pin count of 2.
It is designed for through hole mounting with an HC-49 package type.
The load capacitance of this crystal unit is 20 pF.
This product is supplied on tape & reel packaging for easy assembly.
It features a resistance weld seal termination with a finish comprising Sn, Ag3.0, and Cu0.5.
Yes, this crystal unit complies with RoHS standards, ensuring it meets environmental safety requirements.
This crystal belongs to the FC4ST series.
This crystal unit is suitable for various industrial and electronic applications, including telecommunications devices and embedded controllers.
