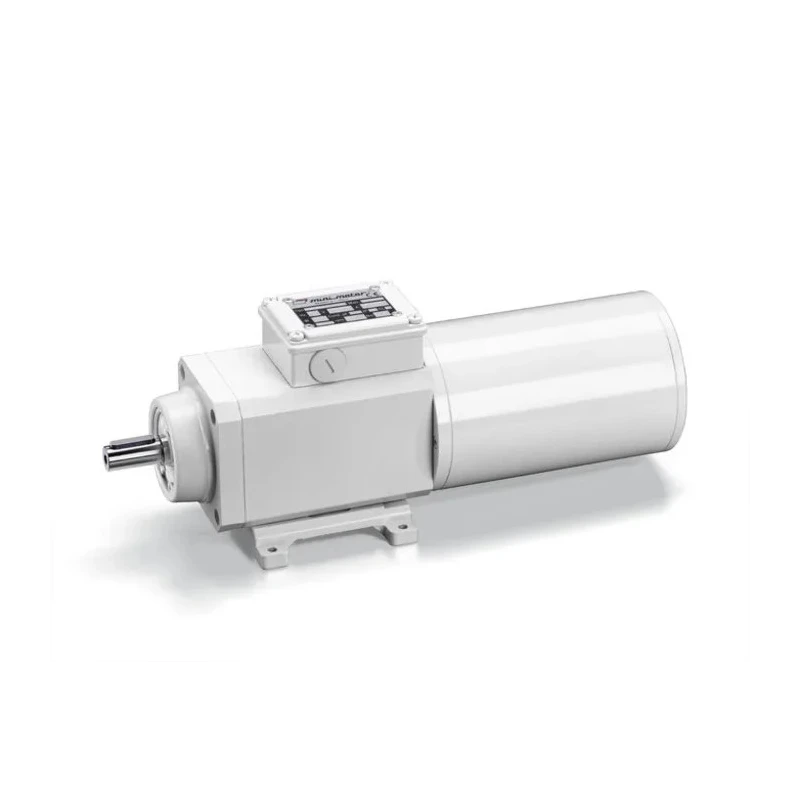

Mini Motor Helical AC Geared Motor 130 W 3 Phase 2-Pole 230V/400V Flange Foot Mounting PAF4T2

Free Delivery in India | Lowest Global Shipping Charges

Mini Motor Helical AC Geared Motor 130 W 3 Phase 2-Pole 230V/400V Flange Foot Mounting PAF4T2

Name: Mini Motor Helical AC Geared Motor 130 W 3 Phase 2-Pole 230V/400V Flange Foot Mounting PAF4T2
Brand: Mini Motor
SKU: 155560
Price: 1697.31 USD
Availability: InStock



Category Gear Motors Brand Mini Motor Condition New

Specifications

Country of Origin	Italy
Brand	Mini Motor
Material	Aluminium, Steel
Length	314.5mm
Model	PAF4T2
Depth	126.4mm
Width	100mm
Mount Type	Flange, Foot
Current Rating	380mA
Series	PAF4T2
Power Rating	130W
Sub Type	Geared
Output Speed	45rpm
Shaft Diameter	14mm
Shaft Length	30mm
Number of Phases	3
Supply Voltage	230, 400V
Bearing Type	Roller
Number of Poles	2
Standards/Approvals	RoHS, IEC/EN 60929
Maximum Output Torque	20Nm
Gearhead Type	Helical

Key Features

This motor operates at a supply voltage of 230V and 400V.
It features a helical gearhead delivering an output speed of 45 rpm.
Construction utilizes aluminium and steel materials for durability.
The shaft diameter is 14 mm with a length of 30 mm ensuring precision fits.
Designed for industrial use with IP67 protection and RoHS compliance.
Maximum output torque reaches up to 20 Nm for demanding applications.
The motor includes roller bearings for smooth operation and longevity.
Its dimensions are 314.5 mm length, 100 mm width, and 126.4 mm depth.

Product Description

Mini Motor PAF4T2 is a high-performance helical AC geared motor with a power rating of 130 W, designed as a 3-phase, 2-pole asynchronous motor operating at 230 V and 400 V supply voltages. Its flange and foot mounting options allow flexible installation in various industrial settings including manufacturing, automation systems, HVAC drives, and water treatment equipment.

This motor delivers an output speed of 45 rpm through a robust helical gearhead coaxially mounted in a die-cast aluminium gearcase. The gears are hardened and tempered, rotating on roller bearings to ensure long service life and high torque transmission efficiency. The motor's thermal protection and IP67 rating confirm its reliability and suitability for harsh environments complying with IEC/EN 60929 standards.

Constructed from aluminium and steel, the shaft measures 14 mm in diameter and 30 mm in length, supporting a maximum output torque of 20 Nm. Its external dimensions of 314.5 mm length, 100 mm width, and 126.4 mm depth make it compact yet powerful for a wide range of applications. The white epoxy paint protective coat enhances corrosion resistance for extended operational life.

Operates on 3-phase 230 V/400 V supply with 2-pole asynchronous motor design. Helical gearhead provides efficient speed reduction to 45 rpm output. Roller bearing shaft and sealed gear unit ensure durability and maintenance ease.

IP67 protection rating guarantees high resistance to dust and water ingress. Complies with RoHS and IEC/EN 60929 standards for safety and environmental performance. Ideal for industrial automation, conveyor drives, and packaging machinery.

Mini Motor PAF4T2 is sourced from Italy, assuring quality manufacturing and engineering standards. This geared motor is a dependable choice for integrating precise motion control in demanding industrial environments.
