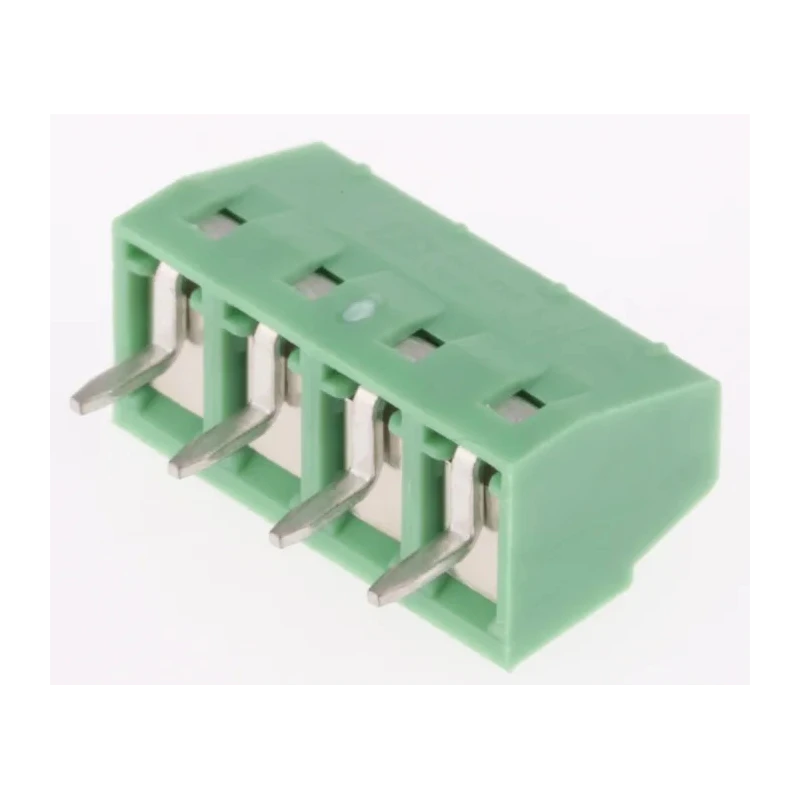

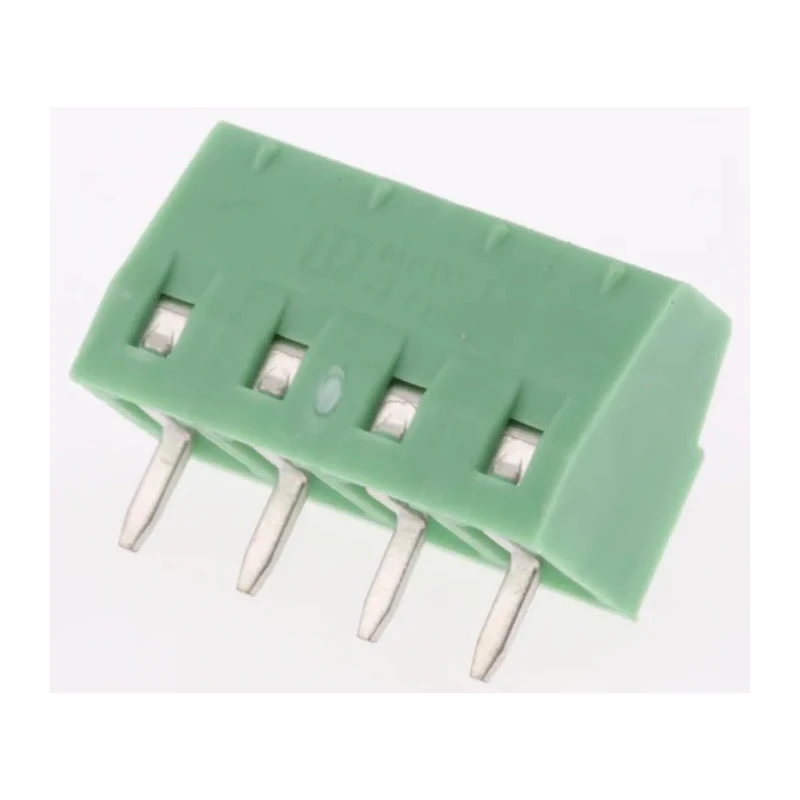

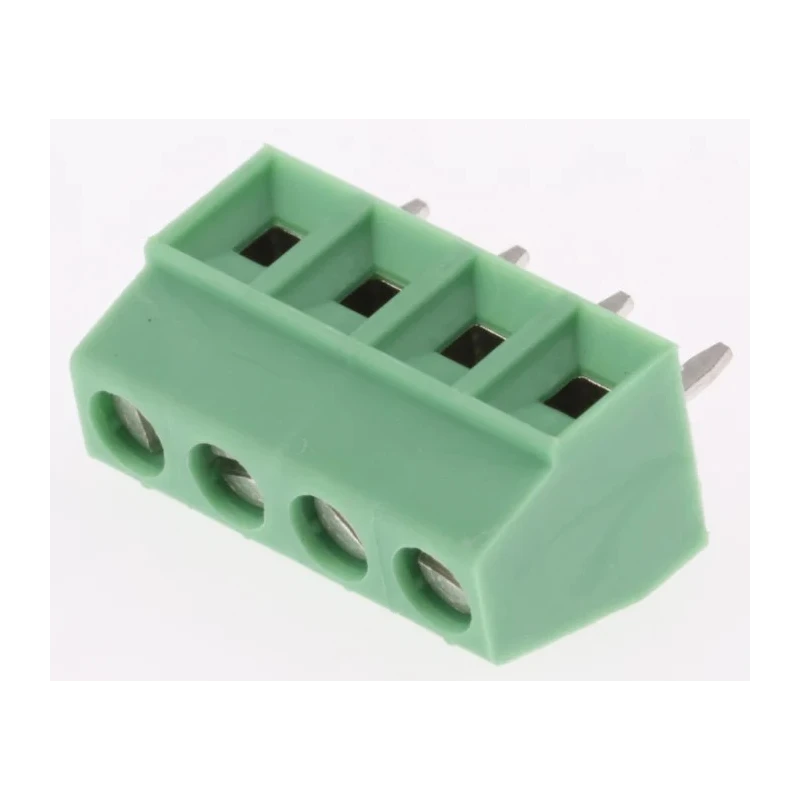

Phoenix Contact MKDS 1/4-3.81 Series PCB Terminal Block, 4-Contact, 3.81 mm Pitch, Through Hole, Vertical Screw 1727036
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 200V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Vertical |
| Current | 13.5A |
| Length | 7.3mm |
| Model | 1727036 |
| Depth | 8.5mm |
| Width | 15.23mm |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Series | MKDS 1/4-3.81 |
| Termination Type | Screw |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 4 |
Key Features
- Current rating up to 13.5 A for robust power transmission.
- Operating voltage rated at 200 V ensuring safety in applications.
- Four contact points with 3.81 mm pitch for compact yet effective connectivity.
- Constructed with green polyamide housing for durability and flame-retardance.
- Through-hole mount type suitable for PCB assembly and integration.
- Vertical orientation with screw termination for secure wire fixing.
- Meets UL 1059 standards for terminal blocks supporting wire terminations.
- Halogen-free and recyclable plastic housing ensuring environmental compliance.
Product Description
Phoenix Contact 1727036 MKDS 1/4-3.81 Series PCB Terminal Block features 4 contacts with a 3.81 mm pitch designed for through-hole mounting on printed circuit boards. This vertical screw terminal block operates at 200 V and supports currents up to 13.5 A, making it ideal for power and signal transmission in industrial electronic equipment.
The terminal block uses a screw termination type ensuring secure and reliable connections. Its housing is made from durable, green polyamide plastic that is halogen-free, recyclable, and flame retardant with UL 94 V-0 certification, enabling it to resist fire hazards effectively.
This component incorporates an advanced moving cage principle that accommodates wires up to 1.5 mm² and provides strain relief through separate solder pins and terminal sleeves to prevent wire snapping. The large surface area for attachment combined with the integrated screw-locking system prevents accidental disengagement of wires, eliminating the need for retightening.
The MKDS 1/4-3.81 series is part of Phoenix Contact's highly tested COMBICON range, renowned for quality and reliability in industrial applications such as manufacturing, industrial automation, and control systems.
Current rating up to 13.5 A ensuring robust power handling. Voltage rating of 200 V suitable for a variety of electrical circuits. Four contact points with 3.81 mm pitch optimize PCB space usage. Green polyamide housing provides flame retardance and recyclability.
Through-hole mounting for secure PCB integration. Vertical orientation with screw terminals for firm cable connections. Designed with a reliable strain relief system that separates solder pins from terminal sleeves. Meets UL 1059 standards for terminal blocks catering to wire insulation and safety.
Halogen-free and environmentally friendly. Ideal for industrial, manufacturing, and electronic device applications. Explore the extensive range of Phoenix Contact products at EnvMart for reliable and high-quality industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of up to 13.5 A, making it suitable for robust power transmission.
The operating voltage is rated at 200 V, ensuring safety in various applications.
This model features four contact points, designed with a 3.81 mm pitch for compact connectivity.
It utilizes a through-hole mount type, making it suitable for PCB assembly and integration.
The housing is constructed from green polyamide, which is flame-retardant and halogen-free.
This terminal block is designed for vertical orientation with screw termination for secure wire fixing.

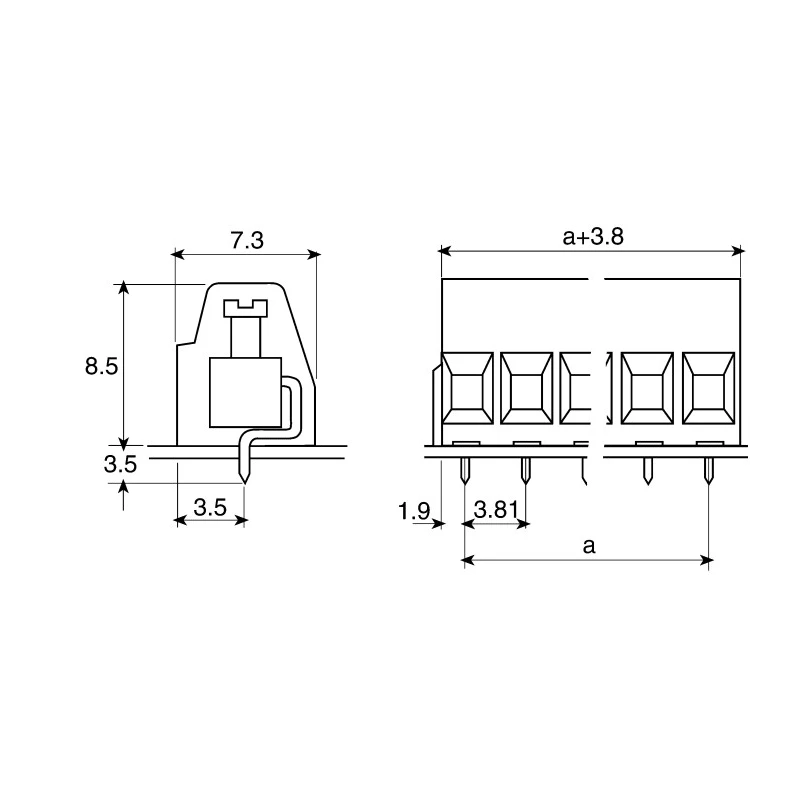

It has a length of 7.3 mm, a width of 15.23 mm, and a depth of 8.5 mm.
It meets UL 1059 standards for terminal blocks, ensuring safety for wire terminations.
It uses a screw termination type, which ensures secure and reliable connections.
It incorporates a strain relief system that separates solder pins from terminal sleeves to prevent wire snapping.
The country of origin for this terminal block is Germany.
It is ideal for use in industrial applications, manufacturing, and electronic devices.
