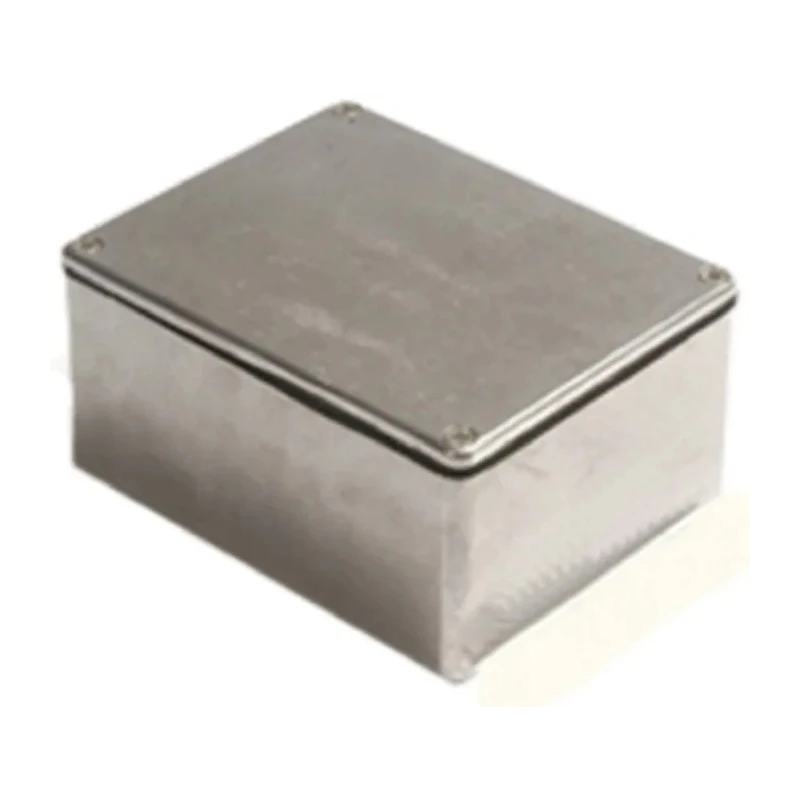

RS PRO Flanged 480 Series Die Cast Aluminium Enclosure Rated 77 mm x 139.7 mm x 101.6 mm IP68
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Model | IP68 |
| IP Rating | IP68 |
| Series | 480 |
| External Width | 101.6mm |
| External Height | 77mm |
| Standards/Approvals | RoHS, BS EN 60529:1992 |
| External Length | 139.7mm |
| Gasket Material | Hard Neoprene Rubber |
| Standards/Approvals RoHS, BS EN 60529 | 1992 |
Key Features
- Constructed from durable die cast aluminium for robust protection.
- Rated IP68, providing complete protection against dust ingress and water immersion up to 5 meters for 1 hour.
- Features a hard neoprene rubber gasket with self-adhesive backing ensuring a secure seal.
- Lid is secured with M3.5 x 12 stainless steel screws for enhanced durability.
- Designed with lid seal location lugs to improve fitment and sealing efficiency.
- Minimum enclosure wall and lid thickness of 1.5 mm ensures structural strength.
- Suitable for demanding industrial, marine, food preparation, transportation, and leisure applications.
Product Description
Deltron 480-0100 Flanged 480 Series die cast aluminium enclosure is engineered for superior environmental protection, rated IP68 according to IEC standard 60529. With external dimensions measuring 77 mm height, 139.7 mm length, and 101.6 mm width, this enclosure is ideal for installations requiring robust protection against dust and prolonged water immersion up to 5 meters for 1 hour.
The enclosure is manufactured from high-quality die cast aluminium, providing excellent mechanical strength and resistance to harsh industrial and marine environments. It features a hard neoprene rubber gasket with self-adhesive backing, which together with lid seal location lugs, ensures an effective seal to maintain its IP68 rating. The lid is secured using M3.5 x 12 stainless steel screws enhancing durability and longevity.
With a minimum enclosure wall and lid thickness of 1.5 mm, the box offers substantial protection for sensitive electronics and components. This series complies with BS EN 60529:1992 and is RoHS certified, guaranteeing compliance with international safety and environmental standards.
This flanged die cast aluminium enclosure is widely used across industrial, marine, food preparation, transportation, and leisure sectors where ruggedness and reliability are critical. The standard version does not provide electromagnetic shielding, but a shielded (EMC) variant is available separately featuring a carbon loaded silicone seal.
Technical features include PCB mounting guides on select models and a minimum seal thickness of 3.0 mm with a frame width of 4.0 mm. Its flanged design allows secure mounting in diverse applications requiring secure enclosure solutions.
Durable die cast aluminium body construction. IP68 rated for dust-tight and water immersion protection. Hard neoprene rubber gasket with self-adhesive backing for reliable sealing. Lid fixed with stainless steel M3.5 x 12 screws for enhanced security.
Complies with international standards BS EN 60529:1992 and RoHS. Suitable for use in marine, industrial, transportation, and food industry environments. Explore more in our Electrical Enclosures category on EnvMart for compatible products and alternatives.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of the enclosure are 77 mm in height, 139.7 mm in length, and 101.6 mm in width.
This enclosure is rated IP68, providing complete protection against dust ingress and water immersion up to 5 meters for 1 hour.
It is constructed from die cast aluminium, which offers excellent mechanical strength and resistance to harsh environments.
The lid is secured with M3.5 x 12 stainless steel screws, enhancing its durability and security.
It features a hard neoprene rubber gasket with self-adhesive backing to ensure a reliable seal.
This model complies with RoHS and BS EN 60529:1992 standards, ensuring it meets international safety and environmental requirements.
The minimum wall and lid thickness of the enclosure is 1.5 mm, providing substantial protection for its contents.
It is suitable for demanding industrial, marine, food preparation, transportation, and leisure applications.
Yes, it has a flanged design that allows for secure mounting in various applications requiring enclosure solutions.
The standard version does not provide electromagnetic shielding, but a shielded (EMC) variant is available separately.
The enclosure is manufactured in India.
Technical features include PCB mounting guides on select models, facilitating easier installation of components.
