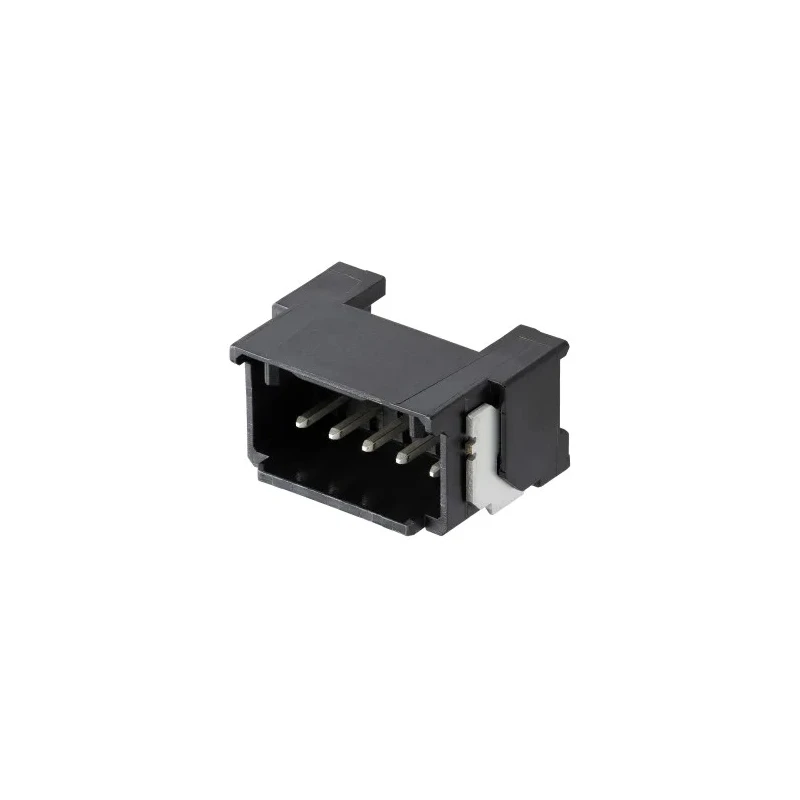

Molex Micro-One Series Right Angle Surface PCB Header 5 Contact 2 mm Pitch 1 Row Shrouded 2170640041
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 4A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | Micro-One |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | CHINA RoHS, EU RoHS |
| Contact Plating | Tin Bismuth |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Rated for 4 Amp current capacity ensuring reliable electrical performance.
- Constructed with a polyamide housing for durability and heat resistance.
- Features a shrouded design to prevent contact damage and improve insulation.
- Surface mount termination with brass contacts plated in tin bismuth for corrosion resistance.
- Handles operating temperatures from -40°C to 105°C for versatile applications.
- Right angle orientation supports compact PCB layouts.
- Suitable for high vibration environments due to independent secondary locking mechanism.
- Complies with CHINA RoHS and EU RoHS environmental standards.
Product Description
Molex 2170640041 Micro-One Series Right Angle Surface PCB Header is engineered for industrial and electronic applications requiring reliable wire-to-board connections. This PCB header features 5 contacts spaced at a 2 mm pitch within a single row and incorporates a shrouded housing to protect contacts and improve safety.
The polyamide housing enhances durability and performance across a wide temperature range from -40°C to 105°C, making it suitable for demanding manufacturing, automotive, telecommunications, and industrial electronics environments.
Its brass contacts plated with tin bismuth enable efficient electrical conductivity and long-term corrosion resistance. The right-angle orientation optimizes PCB space and aligns with surface mount technology termination, ensuring compatibility with modern assembly processes.
The integrated independent secondary locking mechanism secures proper terminal insertion and prevents accidental backouts, enhancing connection integrity even in high vibration conditions.
This component complies fully with CHINA RoHS and EU RoHS directives, supporting environmentally-conscious product design. Rated for 4 Amp current capacity ensuring reliable electrical performance. Constructed with a polyamide housing for durability and heat resistance.
Features a shrouded design to prevent contact damage and improve insulation. Surface mount termination with brass contacts plated in tin bismuth for corrosion resistance. Handles operating temperatures from -40°C to 105°C for versatile applications.
Right angle orientation supports compact PCB layouts. Suitable for high vibration environments due to independent secondary locking mechanism. Complies with CHINA RoHS and EU RoHS environmental standards. Manufactured in Malaysia under strict quality controls.
Ideal for the electronics manufacturing industry, telecommunications equipment, automotive electronics, industrial controls, and other high precision applications where connection reliability and environmental compliance are critical.
Explore more high-quality PCB connectors and electronic components available on EnvMart for diverse industrial and technological needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current capacity of 4 Amps, ensuring reliable electrical performance in various applications.
The connector features a pitch of 2 mm, which is standard for compact PCB layouts.
It can handle operating temperatures ranging from -40°C to 105°C, making it suitable for diverse environmental conditions.
The housing is made of polyamide, while the contacts are brass plated with tin bismuth for corrosion resistance.
This model features 5 contacts arranged in a single row, designed for efficient wire-to-board connections.
It utilizes surface mount termination, which is compatible with modern assembly processes.
Yes, it is designed with an independent secondary locking mechanism that enhances connection integrity in high vibration conditions.
It complies with CHINA RoHS and EU RoHS environmental standards, supporting environmentally-conscious product design.
This model has a right angle orientation, which helps optimize PCB space.
This PCB header is manufactured in Malaysia under strict quality controls.
It employs a wire-to-board connector system, suitable for various electronic applications.
The shrouded design helps prevent contact damage and improves insulation, enhancing safety during operation.
