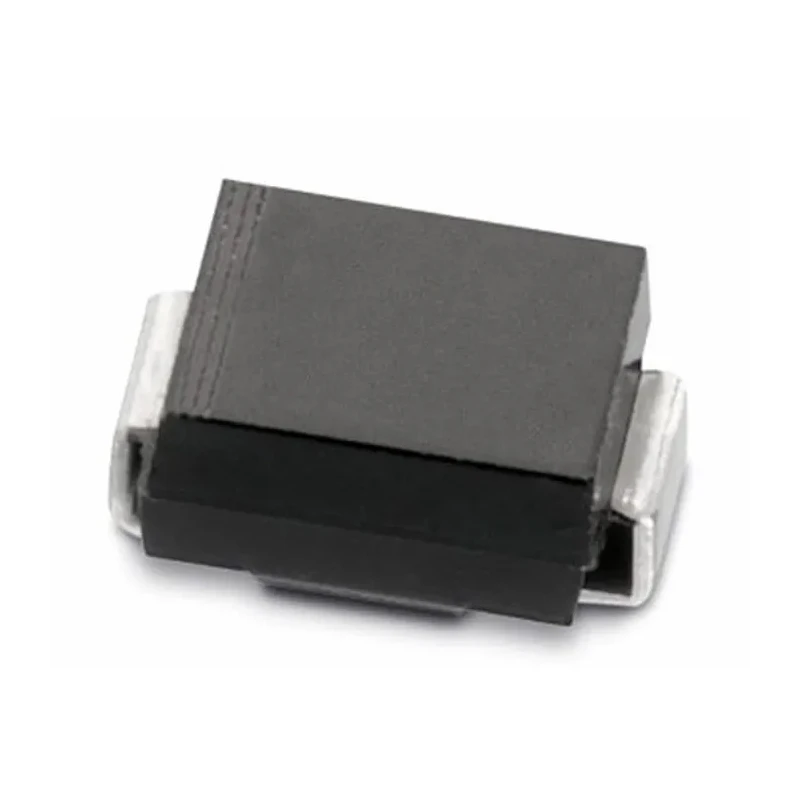

Wurth Elektronik 600 W Uni-Directional 1-Element TVS Diode, Surface Mount, 2-Pin DO-214 Package 824520141
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.3mm |
| Length | 4.32mm |
| Width | 3.62mm |
| Mount Type | Surface |
| Series | WE-TVSP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 23.2V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 16.4V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25.9A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode configuration is single element for efficient protection.
- It has a minimum breakdown voltage of 16.4 V and clamping voltage of 23.2 V.
- Features a fast response time and glass passivated junction for durability.
- Operates reliably from -65°C up to 150°C temperature range.
- Provides a maximum peak pulse current of 25.9 A and low maximum reverse leakage current of 1 μA.
- Surface mount using the DO-214 package facilitates automated assembly.
Product Description
Wurth Elektronik 824520141 Uni-Directional TVS Diode is a single-element transient voltage suppressor designed for robust protection against voltage spikes up to 600 W peak pulse power. The device utilizes a compact 2-pin DO-214 surface mount package, making it suitable for automated PCB assembly in electronics manufacturing.
This diode features a minimum breakdown voltage of 16.4 V and clamps voltage at 23.2 V, ensuring sensitive components are safeguarded against transient surges. With a fast response time and a glass passivated junction, it delivers reliable and durable transient suppression performance.
Operating temperature ranges from -65°C to 150°C, allowing usage in demanding industrial and commercial electronic circuits. The diode supports a maximum peak pulse current of 25.9 A and maintains a low maximum reverse leakage current of 1 μA, preserving circuit integrity and minimizing power loss.
Its dimensions of 4.32 mm length, 3.62 mm width, and 2.3 mm height keep the component low-profile and space-efficient for compact electronic devices.
The product is manufactured in China by Wurth Elektronik, a globally recognized brand for quality power and electronic components. This TVS Diode is ideal for industrial, automotive (non-automotive grade), consumer electronics, and telecommunications applications requiring transient voltage protection.
The diode configuration is single element for efficient protection. It has a minimum breakdown voltage of 16.4 V and clamping voltage of 23.2 V. Features a fast response time and glass passivated junction for durability.
Operates reliably from -65°C up to 150°C temperature range. Provides a maximum peak pulse current of 25.9 A and low maximum reverse leakage current of 1 μA. Compact dimensions: length 4.32 mm, width 3.62 mm, height 2.3 mm.
Surface mount using the DO-214 package facilitates automated assembly. Explore the Wurth Elektronik product range for more semiconductor solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of this TVS diode is 600 W.
The minimum breakdown voltage for this model is 16.4 V.
The clamping voltage of this diode is 23.2 V.
It can handle a maximum peak pulse current of 25.9 A.
The dimensions of this surface mount diode are 4.32 mm in length, 3.62 mm in width, and 2.3 mm in height.
This model operates reliably within a temperature range of -65°C to 150°C.
It uses a DO-214 package type for surface mounting.
This diode has a single element configuration.
The maximum reverse leakage current for this model is 1 μA.
The series designation for this diode is WE-TVSP.
This diode provides robust protection against voltage spikes, making it suitable for various applications in industrial, automotive, and telecommunications sectors.
Yes, the surface mount design using the DO-214 package facilitates automated assembly in electronics manufacturing.
