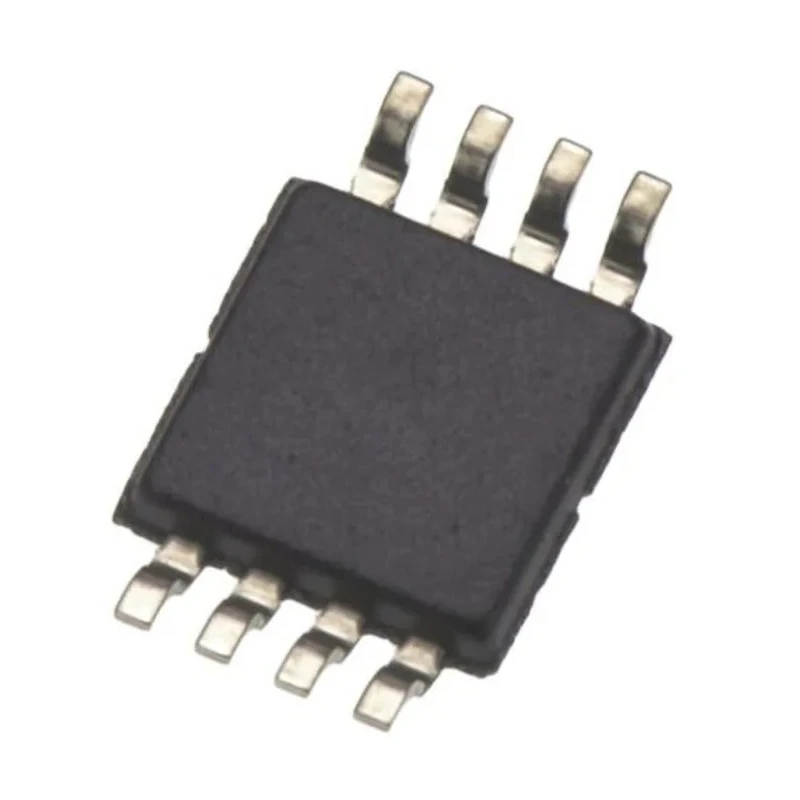

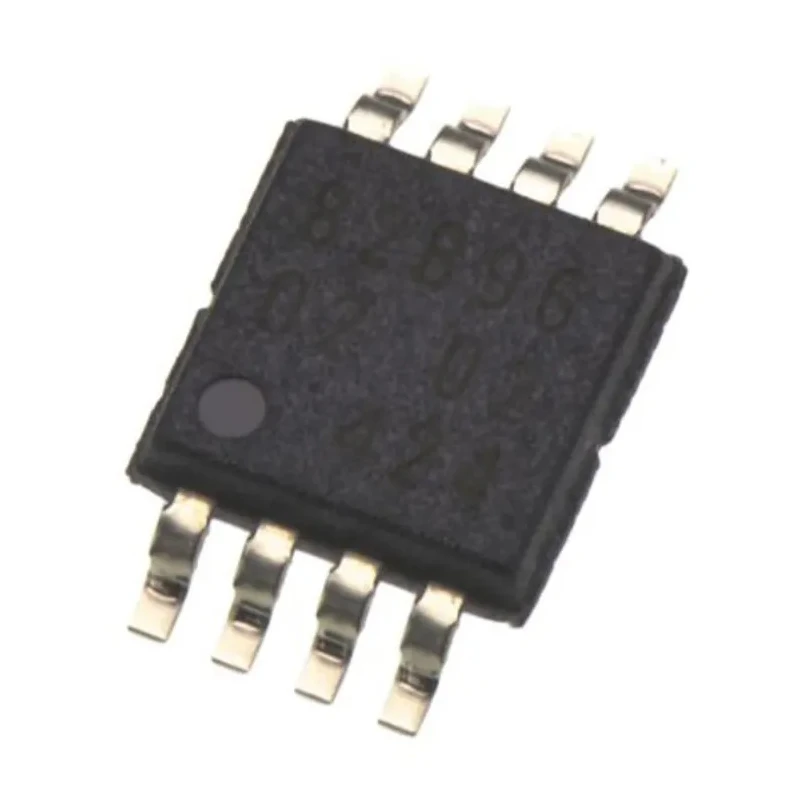

Renesas Electronics MOSFET Gate Driver Dual Output 3.5 A 8-Pin TSSOP ISL55110IVZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.2mm |
| Length | 6.4mm |
| Model | ISL55110IVZ |
| Width | 3mm |
| Mount Type | Surface |
| Series | ISL55110 |
| Output Current | 3.5A |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 6.2ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 12V |
| Number of Drivers | 2 |
| Fall Time | 6.9ns |
| Driver Type | MOSFET |
Key Features
- This dual high-speed MOSFET driver supports 3.5 A peak drive current for fast switching.
- The 8-pin TSSOP surface mount package enables compact PCB designs.
- Operating voltage ranges from 5.5 V maximum to 12 V minimum supply voltage.
- The driver features fast rise time of 6.2 ns and fall time of 6.9 ns for pulse buffering.
- It operates reliably over a wide temperature range from -40°C to 85°C.
- This MOSFET gate driver supports 3.3 V and 5 V logic compatibility.
- Designed for accurate pulse generation with a minimum pulse width of 6 ns.
- Surface mount device suitable for industrial and automotive electronics applications.
Product Description
Renesas Electronics ISL55110IVZ is a dual high-speed MOSFET gate driver designed for industrial and electronic applications requiring precise and efficient power switching control. It delivers 3.5 A peak output current and features an 8-pin TSSOP surface mount package, enabling compact and robust PCB layouts.
Operating with a supply voltage range from 5.5 V maximum to 12 V minimum, this driver ensures reliable switching with fast rise and fall times of 6.2 nanoseconds and 6.9 nanoseconds respectively. The device is compatible with 3.3 V and 5 V logic levels making integration flexible across various systems.
Built to operate in wide temperature conditions from -40°C to 85°C, the ISL55110IVZ is suitable for demanding industrial environments. The driver’s minimum pulse width of 6 nanoseconds allows accurate pulse generation and buffering for MOSFET and IGBT devices.
This dual high-speed MOSFET driver supports 3.5 A peak drive current for fast switching. The 8-pin TSSOP surface mount package enables compact PCB designs. Operating voltage ranges from 5.5 V maximum to 12 V minimum supply voltage.
The driver features fast rise time of 6.2 ns and fall time of 6.9 ns for pulse buffering. It operates reliably over a wide temperature range from -40°C to 85°C. This MOSFET Gate Driver supports 3.3 V and 5 V logic compatibility.
Designed for accurate pulse generation with a minimum pulse width of 6 ns. Surface mount device suitable for industrial and automotive electronics applications. The device is not automotive certified but meets industrial standards for power management ICs.
The compact dimensions of 6.4 mm length, 3 mm width, and 1.2 mm height optimize board space.
This gate driver is ideal for power management applications in industrial electronics, motor control, power supplies, and automation systems. Its high-speed switching and robust design enable improved efficiency and system reliability.
Explore the Electronics Components category at EnvMart for more advanced semiconductor and power management IC solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ISL55110IVZ has a peak output current of 3.5 A.
It operates with a supply voltage range from 5.5 V maximum to 12 V minimum.
The rise time is 6.2 ns and the fall time is 6.9 ns.
This model operates reliably over a temperature range from -40°C to 85°C.
The ISL55110IVZ comes in an 8-pin TSSOP package, with dimensions of 6.4 mm length, 3 mm width, and 1.2 mm height.
Yes, it supports both 3.3 V and 5 V logic compatibility.
The minimum pulse width for accurate pulse generation is 6 ns.
This model features two outputs.
It is suitable for industrial electronics, motor control, power supplies, and automation systems.
The ISL55110IVZ is a surface mount device.
This driver belongs to the ISL55110 series.
The country of origin for this product is India.
