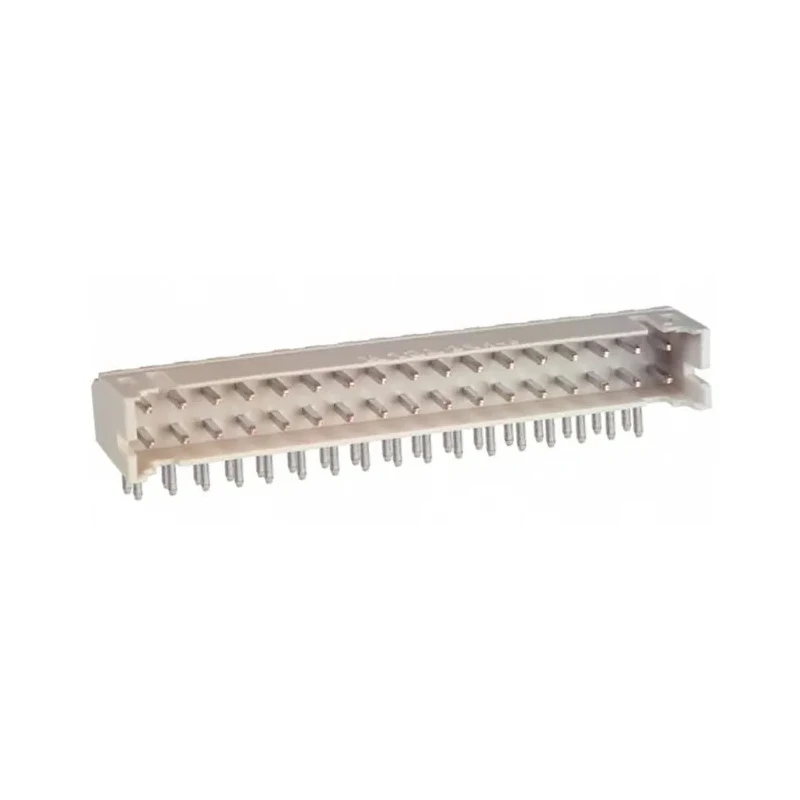

JST PHD Series Right Angle Through Hole Shrouded PCB Header, 34 Contacts, 2mm Pitch, 2 Row S34B-PHDSS (LF)(SN)

JST S34B-PHDSS (LF)(SN) is a high-quality, right angle through-hole PCB header from the PHD series, featuring 34 contacts arranged in 2 rows with a 2 mm pitch. This shrouded PCB header is designed for wire-to-board connection with a solder termination ensuring reliable electrical contact.

The connector's compact, low-profile design enables use in high-density electronic assemblies, maintaining a mating height of just 8.8 mm. The copper alloy contacts plated with tin provide excellent conductivity and corrosion resistance, enhancing the connector’s durability and performance.

Rated for a continuous current of 3A and voltage of 250V, this PCB header operates reliably within a temperature range of -25°C to 85°C, making it suitable for various industrial and commercial applications including electronic manufacturing, control systems, and automation equipment.

The shrouded contact system prevents misalignment during mating and protects against flux and dust intrusion, ensuring long-term connection integrity.

The through-hole mounting provides robust mechanical stability on the PCB, suitable for demanding environments. This product meets the need for high-density connections while offering enhanced safety and performance features.

The PCB header supports a current rating of 3A for reliable signal transmission. Contact material is copper alloy plated with tin to ensure durability and conductivity. Designed with a 2.0 mm pitch and double-row configuration for high density connection.

Right angle orientation and through-hole mount type aid in secure PCB installation. Operating temperature range spans from -25°C to 85°C for versatile applications. The shrouded design prevents incorrect mating and contamination intrusion.

Supports a voltage rating of up to 250V for safety and performance.

This JST PHD series PCB header is ideal for use in electronics manufacturing, laboratory equipment, industrial controls, telecommunications, and automotive electronics. It provides a dependable wire-to-board solution conforming to industry standards and high-quality manufacturing norms for demanding electrical connections.
