Samtec MEC1 Series 1mm Pitch 140-Contact 2-Row Straight Edge Connector Female Surface Mount Solder

Free Delivery in India | Lowest Global Shipping Charges

Samtec MEC1 Series 1mm Pitch 140-Contact 2-Row Straight Edge Connector Female Surface Mount Solder

Name: Samtec MEC1 Series 1mm Pitch 140-Contact 2-Row Straight Edge Connector Female Surface Mount Solder
Brand: Samtec
SKU: 110304
Price: 12.13 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	300V ac
Brand	Samtec
Orientation	Straight
Current	2.2A
Model	MEC1
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	MEC1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1mm
Contact Plating	Gold over Nickel, Tin over Nickel
Number of Contacts	140
Contact Gender	Female
Connector Gender	Female
Card Type	Edge
Card Thickness	1.6mm

Key Features

The connector features a straight orientation for effective PCB edge connection.
It supports a current of 2.2A and operates up to 300V AC voltage.
The 2-row design accommodates a card thickness of 1.6 mm.
Contact plating includes gold over nickel and tin over nickel for durability.
Constructed with beryllium copper alloy contacts and liquid crystal polymer housing for high reliability.
Termination type is solder, suitable for SMT assembly.
The connector operates reliably between -55°C and 125°C temperature range.
It is fully polarized, ensuring correct mating with compatible edge cards.

Product Description

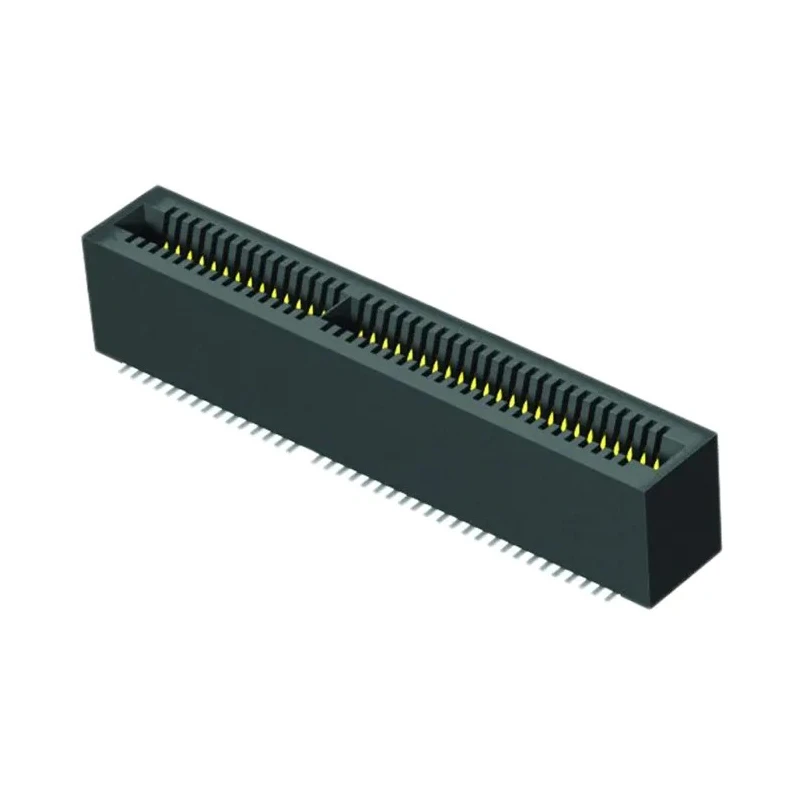

Samtec MEC1 MEC1-170-02-L-D is a high-performance edge connector designed for electronic and electrical applications, featuring 140 gold-plated contacts with a 1.0 mm pitch and 2 rows. It provides surface mount solder termination optimized for PCB edge card connection with high current and voltage ratings suitable for industrial and laboratory use.

Constructed with beryllium copper alloy contacts and a liquid crystal polymer housing, this connector offers excellent mechanical strength, corrosion resistance, and electrical performance. The double-row configuration supports a card thickness of 1.6 mm and ensures stable, reliable connections.

Operating efficiently within a broad temperature range from -55°C to 125°C, this connector is suitable for environments requiring robust thermal stability. The mating edge connectors are polarized to prevent incorrect insertion, improving the safety and reliability of electronic assemblies.

The 2.2A current rating and 300V AC voltage capacity make it ideal for power and signal transmission in industrial electronics, computing devices, communication systems, and other manufacturing applications.

The connector features a straight orientation to align perfectly with PCB edges. It has gold over nickel and tin over nickel plating on contacts for superior conductivity and wear resistance. Its solder termination type facilitates easy surface mount assembly.

Supports 140 contacts arranged in 2 rows for high-density connections. Uses liquid crystal polymer housing for durability and electrical insulation. Polarized design ensures error-free card insertion. Wide operating temperature range from -55°C to 125°C.

Suitable for various industrial, manufacturing, and laboratory electronic applications. Set includes one Samtec MEC1 Series straight edge female connector with specifications suitable for demanding environments requiring reliable PCB edge connections.

Discover the full range of Edge Connectors and other electronic components at EnvMart to fulfill your project and industrial needs with quality and precision.
