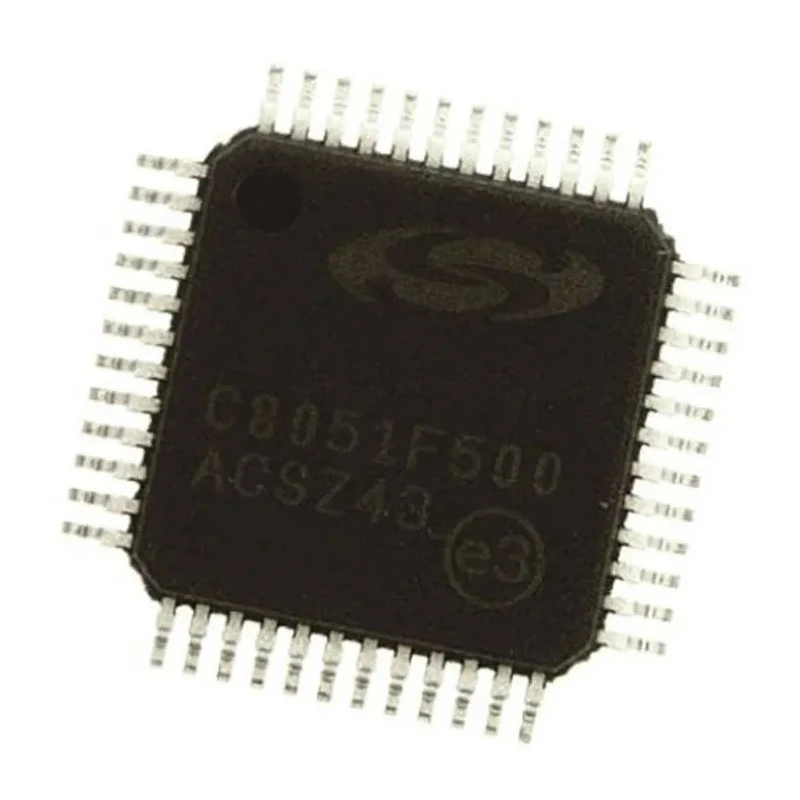

Silicon Labs 8 bit 8051 C8051F Microcontroller 24 MHz 64kB FLASH 48-Pin QFP C8051F500-IQ

Silicon Labs C8051F500-IQ is an advanced 8 bit 8051 microcontroller designed for industrial and automotive applications requiring high reliability and performance. It integrates a powerful 8051 core with a maximum clock frequency of 24 MHz and 64kB of FLASH program memory, allowing complex embedded control with efficient speed.

The device includes 4.35kB of RAM and offers 40 programmable input/output pins, which enables diverse interfacing capabilities. Featuring 32 channels of 12-bit analog-to-digital converters (ADCs) and 2 analogue comparators, the microcontroller excels in precise analog signal processing necessary for sophisticated sensors and control systems.

Packaged in a compact 48-pin QFP form factor (7mm x 7mm x 1.05mm), it supports surface mount technology suitable for high-density PCB layouts. Operating over a wide voltage range from 1.8V minimum to 5.25V maximum, it provides flexibility in power supply designs.

Designed to operate reliably in harsh environments, this microcontroller withstands industrial temperature ranges from -40°C to 125°C and complies with the automotive-grade AEC-Q100 standard, making it ideal for automotive and industrial system integration.

The C8051F500-IQ also features a Harvard architecture instruction set and four timer modules, facilitating accurate timing and control tasks in embedded applications. Additionally, the product is RoHS certified, ensuring compliance with environmental directives.

This microcontroller uses an 8051 device core with 8-bit data bus width. Equipped with 4.35kB RAM and 40 programmable I/Os for flexible applications. Supports a maximum clock frequency of 24 MHz and operates within a voltage range of 1.8V to 5.25V.

Features 32 channels of 12-bit ADCs and includes 2 analogue comparators for precise input processing. Has 4 timers and follows Harvard instruction set architecture for optimal performance. Compact 48-pin QFP package measuring 7mm x 7mm x 1.05mm supports surface mount technology.

Suitable for industrial temperature ranges from -40°C to 125°C, adhering to AEC-Q100 automotive standards. RoHS compliant, ensuring environmental safety and quality standards.

This Silicon Labs microcontroller finds extensive use in embedded systems for industrial controls, automotive electronics, instrumentation, and other applications requiring robust processing, analog interfacing, and stringent reliability.
