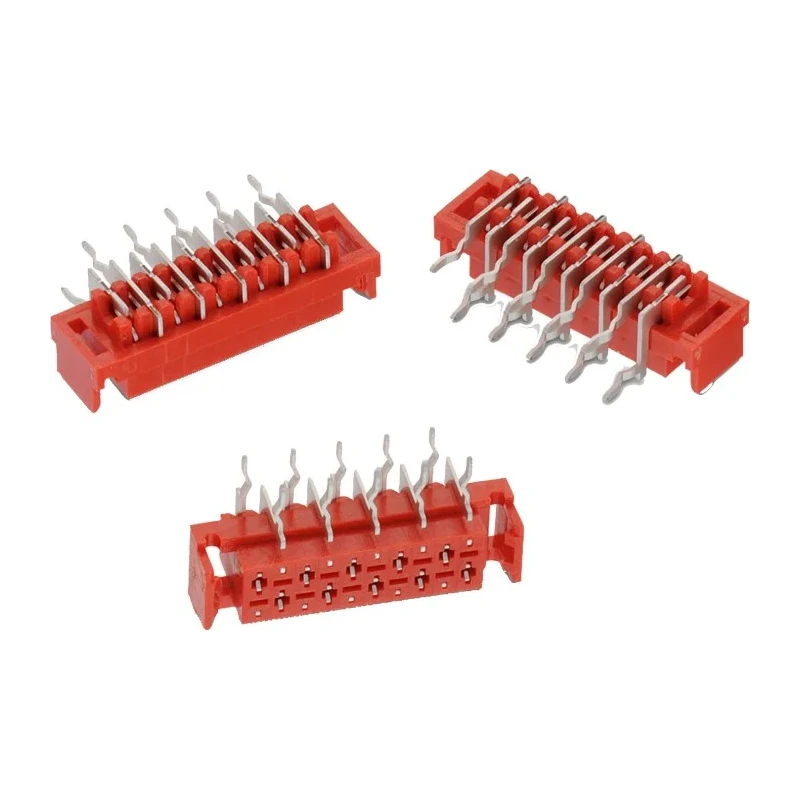

Wurth Elektronik WR-MM Series Right Angle Shrouded Through Hole PCB Header 6 Contacts 2.54 mm Pitch 690368190672
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS, UL E323964 |
| Contact Plating | Matt Tin over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Features 6 female contacts arranged in 2 rows for compact PCB mounting.
- Constructed with a polybutylene terephthalate housing ensuring durability and flame retardancy.
- Designed for right angle orientation fitting through-hole PCB applications.
- Contact materials made of phosphor bronze with matt tin over nickel plating for corrosion resistance.
- Operates reliably within temperatures from -40°C to 105°C.
- Rated for voltage up to 250 V and current up to 1.5 A to suit standard electronic circuits.
- Shrouded design provides mechanical protection and polarization for secure mating.
- Termination type is solder with a tail pin length of 2.9 mm for solid PCB connection.
Product Description
Wurth Elektronik model 690368190672 is a high-quality right angle through hole PCB header from the WR-MM series designed to provide reliable wire-to-board connectivity with 6 female contacts arranged in 2 rows with a 2.54 mm pitch.
The housing is made from robust polybutylene terephthalate material rated UL94 V-0 for flame retardancy ensuring both durability and safety in demanding electronic environments. The stamped phosphor bronze contacts feature matt tin over nickel plating that enhances corrosion resistance and maintains low contact resistance over time.
Designed for a maximum operating voltage of 250 V and current rating of 1.5 A, this connector supports a broad range of PCB assembly needs in industrial, commercial, and laboratory electronics.
The component is shrouded providing mechanical protection and polarization to the connector, preventing incorrect mating and enhancing longevity.
It is suitable for applications within operating temperatures ranging from -40°C to +105°C, alongside termination via solder with a tail pin length of 2.9 mm, assuring reliable PCB connections.
This PCB Header complies with RoHS directives and carries UL E323964 certification, ensuring adherence to international safety and environmental standards. Manufactured in China, it is ideal for electronics OEMs, assembly lines, prototyping labs, and other industrial facilities requiring dependable PCB connectors.
Features 6 female contacts arranged in 2 rows for compact PCB mounting. Constructed with polybutylene terephthalate housing ensuring durability and flame retardancy. Designed for right angle orientation fitting through-hole PCB applications.
Phosphor bronze contacts with matt tin over nickel plating resist corrosion. Operates in temperature range from -40°C to 105°C. Voltage rating of 250 V and current rating of 1.5 A. Shrouded design provides protection and polarization.
Solder termination with 2.9 mm tail pin length. RoHS compliant and UL E323964 certified. Manufactured in China. Explore Wurth Elektronik’s broad range of PCB connectors and related electronics components at EnvMart for reliable and certified industrial-grade electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 250 V.
This model has a current rating of 1.5 A.
The pitch size of the contacts is 2.54 mm.
The housing is made from polybutylene terephthalate, and the contacts are made of phosphor bronze with matt tin over nickel plating.
It operates reliably within a temperature range of -40°C to 105°C.
This PCB header features 6 female contacts arranged in 2 rows.
The termination type for this connector is solder, with a tail pin length of 2.9 mm.
Yes, this PCB header complies with RoHS directives.
This model is designed for right angle orientation.
This PCB header carries UL E323964 certification.
The shrouded design provides mechanical protection and polarization to prevent incorrect mating.
It is manufactured in China.
