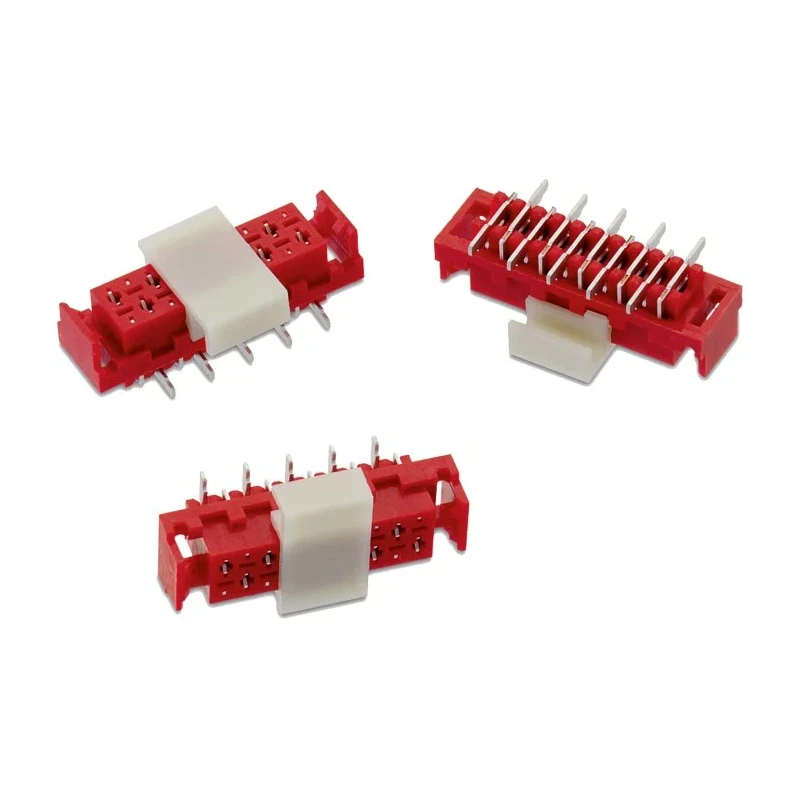

Wurth Elektronik WR-MM Series Straight Surface PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 690367291476

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-MM Series Straight Surface PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 690367291476

Name: Wurth Elektronik WR-MM Series Straight Surface PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 690367291476
Brand: Wurth Elektronik
SKU: 169444
Price: 1.87 USD
Availability: InStock



Category PCB Header Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Wurth Elektronik
Orientation	Straight
Current	1.5A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Phosphor Bronze
Series	WR-MM
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS, UL E323964
Contact Plating	Matt Tin over Nickel
Number of Contacts	14
Contact Gender	Female
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm

Key Features

Features a polyamide housing ensuring durability and insulation.
Equipped with phosphor bronze contacts plated with matt tin over nickel for corrosion resistance.
Designed for surface mount on PCBs with a wire-to-board connector system.
Rated for 1.5A current and operating voltage of up to 250V.
Two rows of contacts with 14 total connections provide reliable multi-line interfacing.
Tolerant for operating temperatures ranging from -40°C to 105°C.
Termination type is solder for secure PCB attachment.
Complies with RoHS and UL E323964 standards ensuring safety and environmental compliance.

Product Description

Wurth Elektronik 690367291476 WR-MM Series Straight Surface PCB Header is a high-quality connector designed for electronic assemblies requiring reliable wire-to-board connections. Featuring 14 female contacts arranged in two rows with 2.54 mm pitch, this surface mount header ensures precise positioning and electrical continuity in PCB designs.

The header housing is made of durable polyamide material, providing excellent mechanical strength and insulation characteristics. Contacts are manufactured from phosphor bronze, plated with matt tin over nickel to resist corrosion and assure long-term conductivity. Its termination is solder type, making it suitable for secure PCB attachment in manufacturing processes.

Rated for a current of 1.5A and voltage up to 250V, this connector supports typical industrial and commercial electronic applications. The device operates effectively across a wide temperature range from -40°C up to 105°C, allowing deployment in diverse environmental conditions.

The shrouded design protects contacts from accidental short circuits and mechanical damage while maintaining ease of access for mating parts. Tail pin length of 2.9 mm provides soldering reliability and mechanical stability.

This PCB Header complies with RoHS directives and UL E323964 safety standards, ensuring environmentally responsible manufacturing and adherence to quality benchmarks. Applications include industrial electronics, instrumentation, control systems, and consumer electronic devices where durable and compact wire-to-board interfaces are necessary.

Polyamide housing for durability and insulation. Phosphor bronze contacts plated with matt tin over nickel. Surface mount type for PCB installation. Rated 1.5A current and 250V voltage. Operating temperature range from -40°C to 105°C.

Solder termination for stable connection. Shrouded 2-row design with 14 contacts. Compliant with RoHS and UL E323964 standards. Manufactured in China as a new product.
