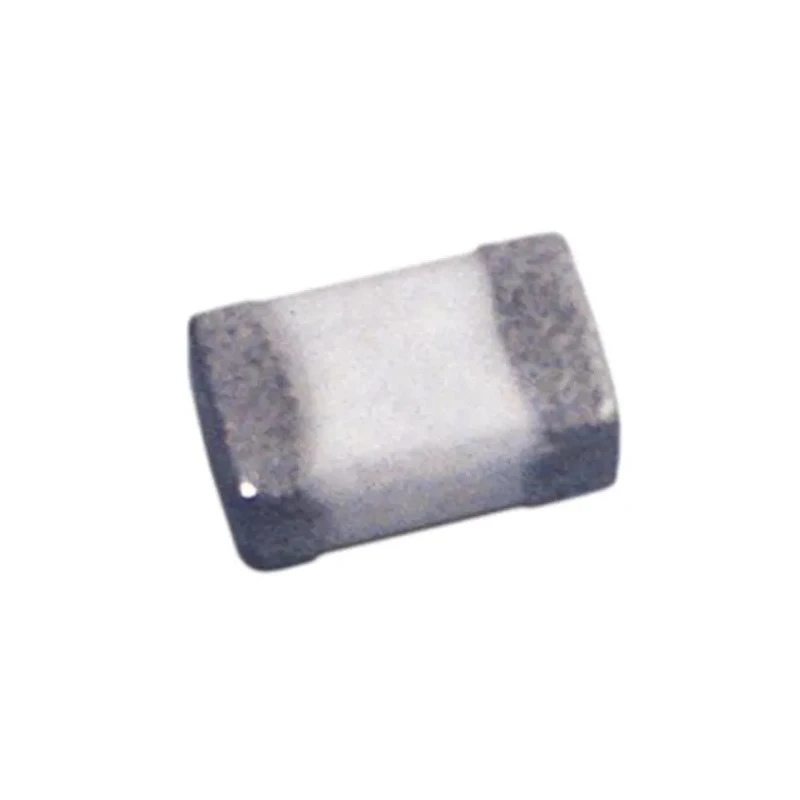

Wurth Elektronik WE-MK 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 1.2 nH ±0.05 % 744784012A

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-MK 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 1.2 nH ±0.05 % 744784012A

Name: Wurth Elektronik WE-MK 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 1.2 nH ±0.05 % 744784012A
Brand: Wurth Elektronik
SKU: 109960
Price: 0.06 USD
Availability: InStock



Category Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	0.5mm
Length	1mm
Model	744784012A
Depth	0.5mm
Packaging	Tape & Reel
Series	WE-MK
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ceramic
Inductance	1.2nH
Package/Case	0402
Maximum DC Current	400mA
Pin Count	2
Maximum DC Resistance	100mΩ
Inductance Tolerance	±0.05 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	10GHz
Minimum Quality Factor	8
Inductor Construction	Multilayer

Key Features

Features a multilayer construction ensuring stable inductance over temperature variations.
Compact 0402 package size with dimensions 1mm x 0.5mm x 0.5mm for surface mount applications.
Maximum DC current capacity of 400 mA suitable for high-frequency circuit applications.
High self-resonant frequency of 10 GHz allows efficient operation in RF designs.
Constructed with a ceramic core providing excellent shielding and reduced electromagnetic interference.
Inductance tolerance of ±0.05 % ensures high precision performance in demanding environments.
Minimum quality factor of 8 guaranteeing low losses during operation.
RoHS compliant and recommended for automated soldering processes including reflow and wave soldering.

Product Description

Wurth Elektronik 744784012A is a 0402 Shielded Multilayer Surface Mount Inductor featuring a ceramic core with an inductance value of 1.2 nH and a highly precise tolerance of ±0.05 %.

This high-frequency inductor employs multilayer construction technology that delivers consistent inductance stability over temperature fluctuations, supported by a minimum quality factor of 8.

Its compact 0402 package measures just 1mm in length with a 0.5mm height and depth, making it suitable for densely packed printed circuit boards in electronic devices.

The inductor supports a maximum DC current of 400 mA, with maximum DC resistance limited to 100mΩ and a high self-resonant frequency up to 10 GHz, enabling efficient performance in radio frequency and high-speed communication circuits.

Its ceramic core offers effective electromagnetic shielding, making this component ideal for noise-sensitive applications. Designed for surface mount technology with a termination style optimized for automated assembly processes like reflow and wave soldering.

Multilayer ceramic inductor with 1.2 nH inductance and ±0.05 % tolerance. Compact 0402 surface mount package with dimensions 1 x 0.5 x 0.5 mm. Maximum DC current of 400 mA, maximum DC resistance 100mΩ. High self-resonant frequency at 10 GHz suitable for RF applications.

Ceramic core providing shielding and stability over temperature range -55°C to 125°C. Minimum quality factor of 8 ensures low loss operation. RoHS compliant, molded construction with tape and reel packaging. Recommended for use in pagers, oscillators, laptops, Bluetooth, wireless LAN, and filter circuits.

Manufactured in China, this Wurth Elektronik WE-MK series inductor meets demanding industrial standards for passive components in electronic manufacturing, telecommunications, and wireless communication systems.

By integrating this component, engineers can achieve precise inductance characteristics in compact designs optimized for modern high-frequency electronic assemblies. Browse more from our Electronics Components category for specialized surface mount Inductors and related products.
