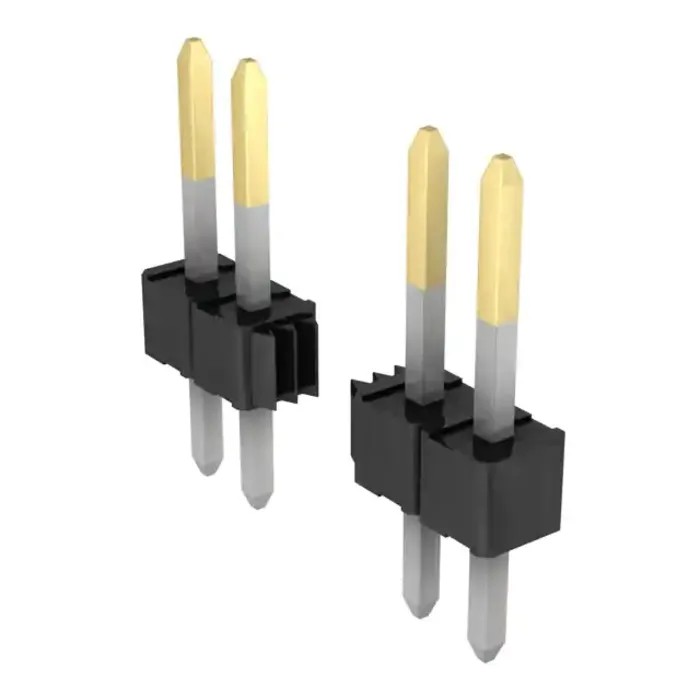

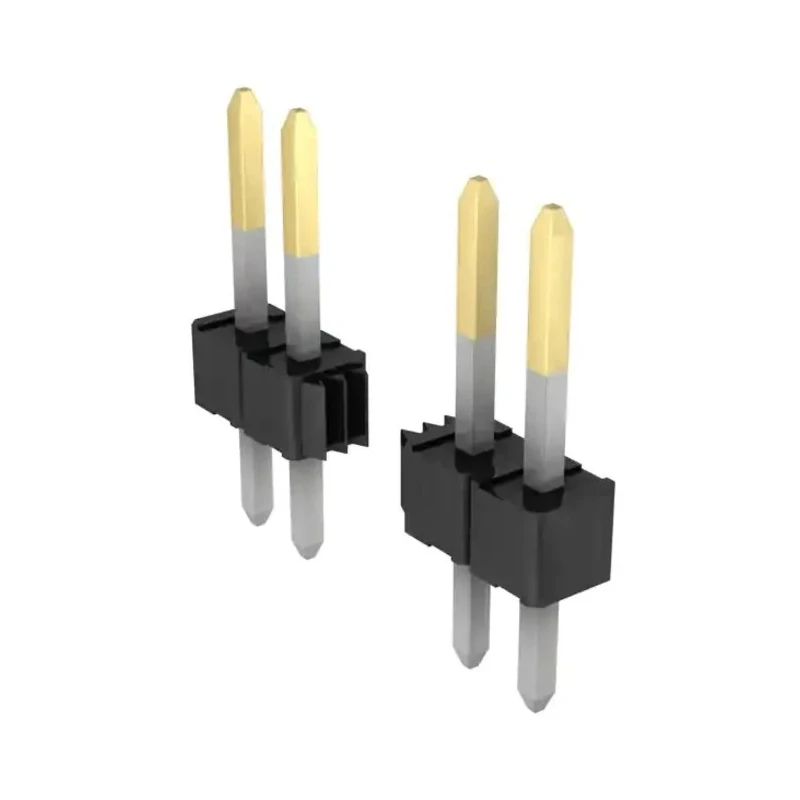

Molex KK 100 Series Vertical Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22284363

Molex 22284363 KK 100 Series Vertical Through Hole Pin Header is designed to provide high reliability and excellent electrical performance in electronic assembly applications. Supporting a current rating of 4A and rated for 500V, this pin header is ideal for robust PCB connectivity where vertical orientation is required. It features a 2.54 mm pitch and a single row with 36 male contact pins, offering a compact yet effective solution for wire-to-board connections.

The contact pins are made from brass and plated with gold to ensure corrosion resistance and low electrical resistance over prolonged use. The housing uses high temperature thermoplastic material, providing excellent heat tolerance during soldering and operation. The pin header is unshrouded, allowing straightforward mating with complementary connectors, and includes a tail pin length of 3.18 mm and mating pin length of 6.09 mm for secure engagement.

This component meets strict CSA LR19980 and UL E29179 approvals, confirming compliance with industry standards for safety and performance. It supports through-hole mounting, making it compatible with conventional PCB manufacturing processes. Manufactured in India, it reflects high quality and durability demanded in industrial, electronic manufacturing, and repair environments.

Supports 4A current for stable power delivery. Features 2.54 mm pitch with 1 row configuration. Constructed with brass contacts plated in gold for durability. Housing made of high temperature thermoplastic ensuring heat resistance.

Suitable for vertical mounting with through-hole installation. Unshrouded design facilitating easy mating with connectors. Complies with CSA LR19980 and UL E29179 standards for quality assurance. Male contact gender with tin termination for enhanced solderability.

Voltage rated to 500V for versatile electronic applications. Manufactured in India to high industry standards.

This Molex KK 100 Series Pin Header is ideal for electronic manufacturing, prototype development, telecommunications, and industrial automation applications where durable PCB connectors are essential. Explore more Molex products and similar PCB connectors in the Electronics Components category at EnvMart, your trusted industrial supply partner.
