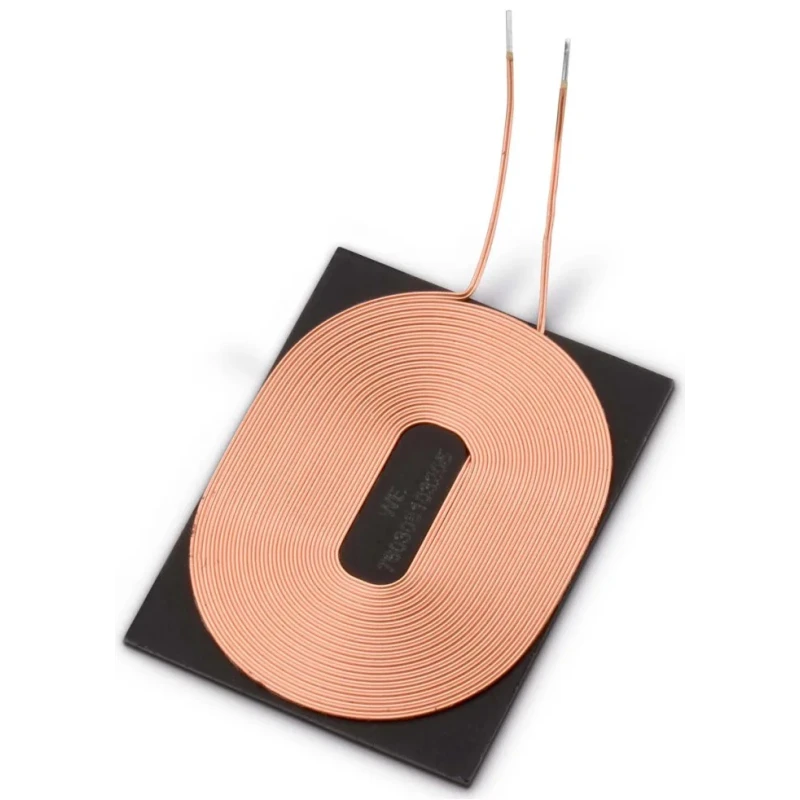

Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 2.5 A, 11 μH, 0.56 mm dia. 760308103205

Wurth Elektronik 760308103205 Wireless Charging Coil Receiver is engineered for Qi standard wireless power charging applications, supporting a maximum DC current of 2.5 A and inductance of 11 μH. The coil uses high-quality ferrite core material with a diameter of 0.56 mm, offering excellent magnetic coupling efficiency and performance in wireless power transfer systems.

The coil is designed with an axial mount type for straightforward PCB integration in compact portable devices such as fitness trackers, smartwatches, and other consumer electronics. The coil features a maximum DC resistance of 200 mΩ that minimizes energy loss during operation, and a minimum quality factor of 30, ensuring robust performance and reduced signal degradation.

Operating temperature ranges from -20°C to 105°C, allowing deployment in demanding environments including medical facilities, industrial clean rooms, and explosion-sensitive areas where wired connectors are unsuitable. The coil's high self-resonant frequency of 16 MHz supports stable operation at wireless charging frequencies.

Compliance with the EN 61760-1:2006 standard assures adherence to industry safety and performance norms. The physical dimensions of 26.5 mm height and 34 mm length make the coil ideal for embedding into space-constrained devices.

The coil substitutes conventional wired charging by enabling inductive power transfer, enhancing device durability by eliminating wear-prone connectors. The magnetic field generated is highly focused, limiting leakage and electromagnetic interference, with an integrated EMI shield on the coil's back.

Constructed with litz wire windings to optimize efficiency and deliver up to 75% transmission efficiency when paired with compatible transmitter coils. Ideal use cases include portable electronics, smart sensors, and consumer products requiring wireless power transfer without mechanical contacts.

Choose Wurth Elektronik WE-WPCC series for innovative, efficient, and reliable wireless charging coil receivers. Explore our catalog for more solutions in electronics components and Inductors to support your device design and manufacturing needs.
