Samtec QSE Series Right Angle Surface PCB Socket 40-Contact 2 Row 0.8 mm Pitch 23A 225V QSE-020-01-F-D-A-TR

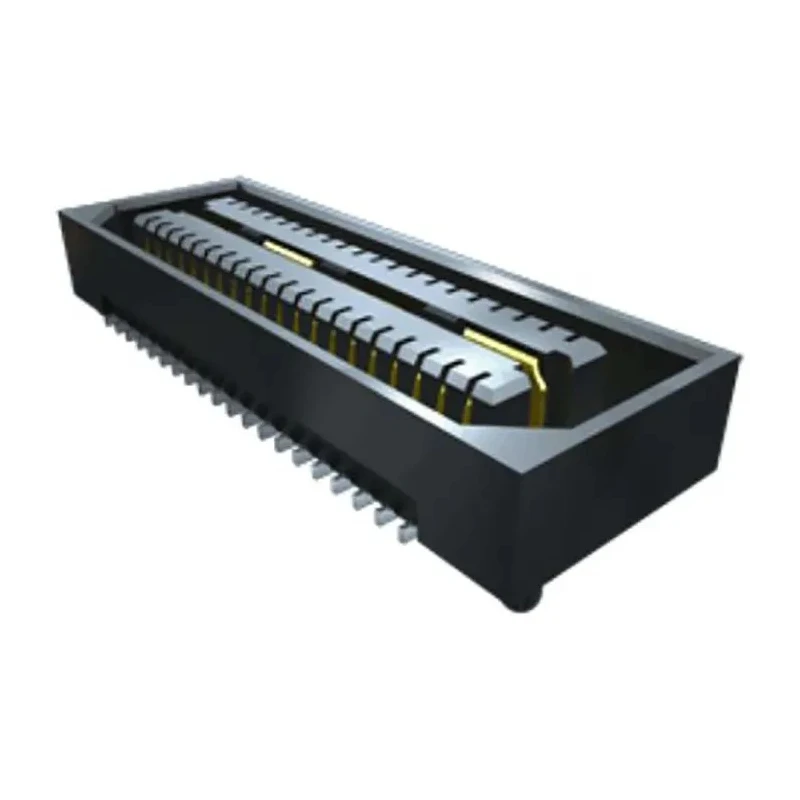

Samtec QSE-020-01-F-D-A-TR is a high-performance right angle surface mount PCB socket designed for board-to-board connectivity in electronic and industrial applications. Featuring 40 gold-plated contacts arranged in 2 rows with a precise 0.8 mm pitch, this socket supports a current rating of 23A and voltage of 225V, providing a robust and reliable electrical interface.

The socket housing is manufactured from liquid crystal polymer material, offering excellent durability and thermal stability across a wide operating temperature range from -55°C to 125°C. Its right angle orientation and 5 mm stacking height allow efficient PCB space utilization, making it ideal for compact and high-density electronic designs.

Samtec's QSE series is engineered to support up to 200 positions with stack heights ranging from 5 mm to 30 mm, providing versatile options for various board configurations. The Extended Life Product™ (E.L.P.™) ensures enhanced durability, crucial for industrial, manufacturing, and commercial electronics where long-term reliability is essential.

This socket is well-suited for applications in industrial automation, telecommunications, computing, aerospace, and other high-speed data transfer environments requiring secure and stable board-to-board connections.

Phosphor bronze contact material with gold plating ensures excellent conductivity and corrosion resistance. Surface mount termination type optimized for soldering to PCB pads for strong mechanical and electrical connection.

Complies with industry standards to ensure compatibility and reliability in demanding applications. Right angle orientation simplifies PCB design when vertical space is limited. Supports high-speed signal transmission with Samtec’s 28+ Gbps solution technology.

Ideal for use in electronic components manufacturing, testing, and prototyping labs. Facilitates board-to-board connectivity requiring high current and voltage ratings. Widely used in telecommunications, data centers, and industrial control systems requiring durable connectors.
