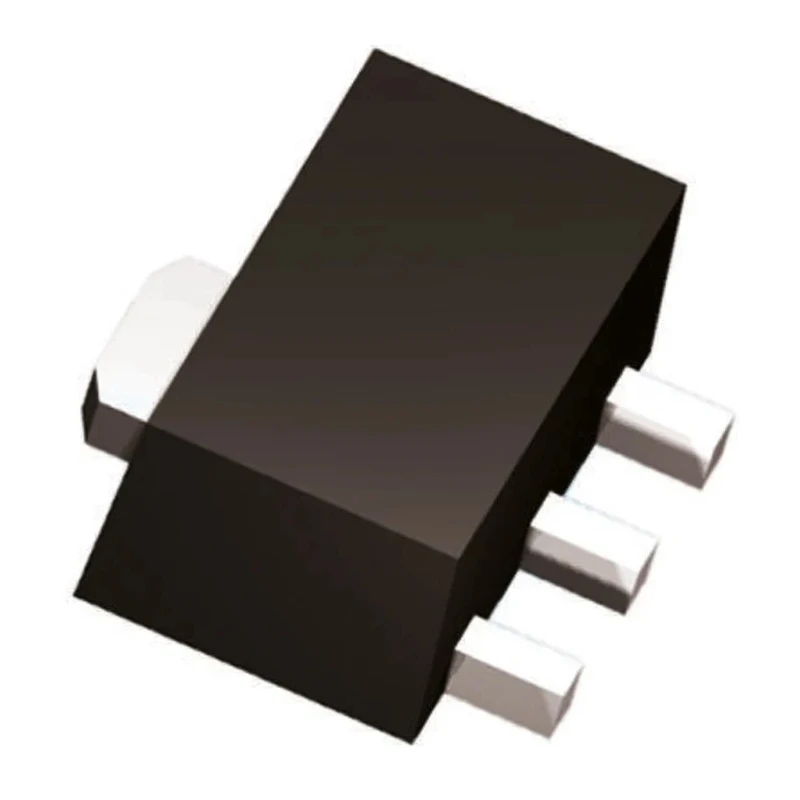

Microchip Voltage Regulator SOT-89 3-Pin 28V Input 150mA Quiescent Current 125μA MCP1804T-5002I/MB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip MCP1804T-5002I/MB, Voltage Regulator 28V SOT-89 3-Pin RS St |
| Brand | Microchip |
| Height | 1.6mm |
| Length | 4.6mm |
| Model | MCP1804T-5002I/MB |
| Width | 2.6mm |
| Mount Type | Surface |
| Series | MCP1804 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-89 |
| Polarity | Positive |
| Maximum Input Voltage | 28V |
| Quiescent Current | 125μA |
| Minimum Input Voltage | 2V |
| Pin Count | 3 |
| High PSRR | 50 dB Typical @ 1 kHz |
| Input Operating Voltage Range | 2.0 V to 28.0 V |
Key Features
- Operates from 2.0 V to 28 V input voltage range.
- Provides stable output with only 1 μF output capacitance required.
- Low quiescent current at 50 μA for efficient power use.
- Current foldback feature protects against overcurrent conditions.
- High power supply rejection ratio (PSRR) of 50 dB at 1 kHz.
- Typical dropout voltage of 260 mV at 20 mA load.
- Shutdown pin reduces supply current to 0.01 μA when enabled.
- Compact dimensions are 4.6 mm length, 2.6 mm width, and 1.6 mm height.
Product Description
Microchip MCP1804T-5002I/MB is a Low Dropout (LDO) voltage regulator designed for efficient power management in electronic circuits. It supports an input voltage range from 2.0 V up to 28 V and delivers a maximum output current of 150 mA. The device’s compact SOT-89 3-pin surface mount package with dimensions 4.6 mm (L) x 2.6 mm (W) x 1.6 mm (H) enables space-saving designs.
It features a very low quiescent current of 50 μA, making it suitable for battery-powered and low power applications. The regulator requires only 1 μF output capacitance to maintain stable operation, simplifying circuit design. Its current foldback protection enhances device reliability by limiting current under fault conditions.
The MCP1804T-5002I/MB includes a shutdown pin to reduce the supply current to a minimal 0.01 μA typical value for power-saving modes. It exhibits a high power supply rejection ratio (PSRR) of 50 dB at 1 kHz, ensuring stable output voltage against input supply noise.
With an input voltage maximum of 28 V and operating temperature up to 85 °C, this regulator is suitable for a variety of industrial, automotive (non-automotive standard), and consumer electronic applications requiring stable and efficient low dropout voltage regulation.
Operates over wide input voltage range of 2.0 V to 28 V. Provides up to 150 mA regulated output current. Low dropout voltage of 260 mV typical at 20 mA load current. Low quiescent current of 50 μA for power-efficient operation.
Current foldback protection improves device robustness. Shutdown feature reduces supply current to 0.01 μA (typical). High PSRR of 50 dB at 1 kHz frequency. Compact SOT-89 package for surface mount applications.
This Microchip voltage regulator is ideal for use in industrial power management IC applications, embedded systems, and consumer electronics. Its compact size and low power consumption optimize circuit space and battery life. For comprehensive product design, consult technical documents and application notes provided by Microchip to facilitate system integration.
Explore the full range of Voltage Regulators and Power Management ICs in the Electronics & Electricals category at EnvMart for advanced solutions suited to your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within an input voltage range of 2.0 V to 28.0 V.
The MCP1804T-5002I/MB can deliver a maximum output current of 150 mA.
It has a low quiescent current of 50 μA, which is beneficial for power-efficient applications.
The typical dropout voltage for this model is 260 mV at a 20 mA load current.
The SOT-89 package dimensions are 4.6 mm in length, 2.6 mm in width, and 1.6 mm in height.
Yes, it includes a current foldback protection feature that helps protect against overcurrent conditions.
The MCP1804T-5002I/MB exhibits a high PSRR of 50 dB at 1 kHz, ensuring stable output voltage against supply noise.
When enabled, the shutdown pin reduces the supply current to a minimal 0.01 μA, enhancing power-saving capabilities.
The maximum operating temperature for the MCP1804T-5002I/MB is 85 °C.
This model is designed for surface mounting, suitable for compact circuit designs.
The MCP1804T-5002I/MB has a positive polarity, which is standard for most voltage regulators.
This voltage regulator is suitable for industrial power management, embedded systems, and consumer electronics requiring stable low dropout voltage regulation.
