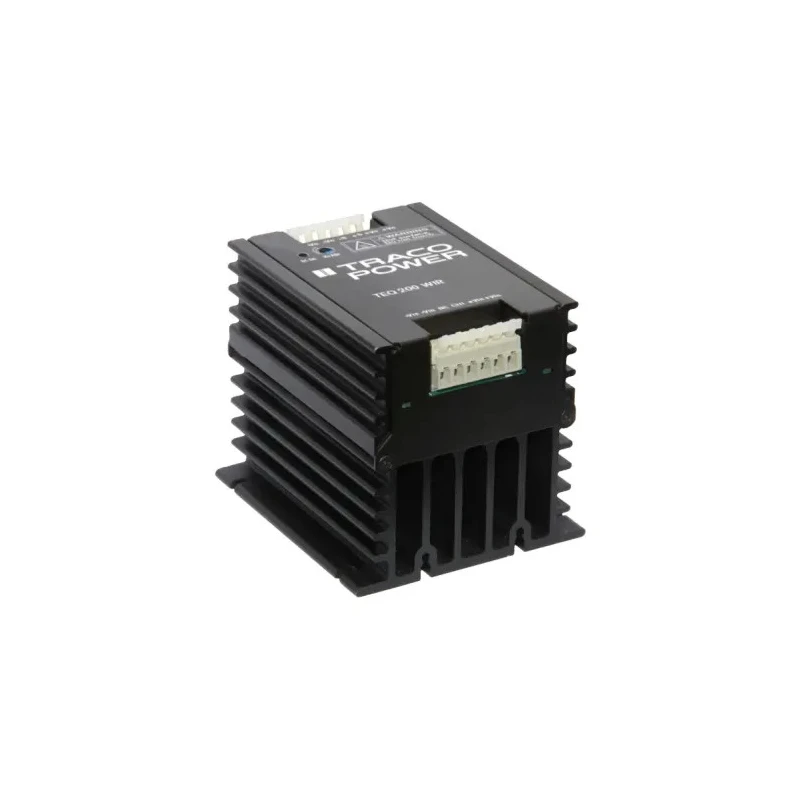

TRACOPOWER High Performance Isolated DC/DC Converter 22.4V Output, 160V Max Input, 8.5A Output Current, 200W TEQ 200-7216WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 88.9mm |
| Model | TEQ 200-7216WIR |
| Depth | 101.6mm |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 270000h |
| Number of outputs | 5 |
| Maximum Output Power | 200W |
| Maximum Input Voltage | 160V |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 22.4V |
| Output Current 1 | 8.5A |
| Isolation Voltage | 2.25kV |
| Input Ratio | 4:1 |
| Output Voltage 2 | 30.8V |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Offers isolated single output with maximum power of 200W.
- Supports five outputs with output voltage adjustment range from -20% to +10%.
- Features robust thermal performance from -40°C to 90°C with power derating above 70°C.
- Designed for highest reliability with MTBF rated 270,000 hours.
- Incorporates input protection filter with under voltage lockout and remote ON/OFF control.
- Constructed in a rugged sealed metal case for excellent thermal convection and durability.
- Approved for railway applications and industrial use without PCB mounting capability.
- High isolation voltage of 2250 VDC for demanding electrical environments.
Product Description
TRACOPOWER TEQ 200-7216WIR is a high performance single output regulated and isolated DC/DC converter with 22.4V output voltage and a maximum output power of 200W. It features an ultra-wide 4:1 input voltage range from 43V minimum up to 160V maximum, suitable for industrial, railway, battery-operated, and harsh environment applications where reliability and ruggedness are essential.
The converter is housed in a sealed metal enclosure that ensures excellent thermal convection, allowing operation from a minimum temperature of -40°C up to 70°C without power derating, and up to 90°C with power derating. Its MTBF rating of 270,000 hours demonstrates high reliability for continuous industrial use.
Additional key features include output voltage trimming, under voltage lockout protection, remote ON/OFF, input protection filters, and shock and vibration resistance, making it well suited for use in railway and industrial environments where PCB mounting is not feasible, and the device must be mounted on a chassis.
Offers isolated single output with maximum power of 200W. Operates efficiently up to 89% with a wide 4:1 input voltage ratio. Supports five outputs with output voltage adjustment range from -20% to +10%. Features robust thermal performance from -40°C to 90°C with power derating above 70°C.
Designed for highest reliability with MTBF rated 270,000 hours. Incorporates input protection filter with under voltage lockout and remote ON/OFF control. Constructed in a rugged sealed metal case for excellent thermal convection and durability.
Approved for railway applications and industrial use without PCB mounting capability. High isolation voltage of 2250 VDC for demanding electrical environments. Compact dimensions: 88.9mm length and 101.6mm depth for flexible chassis mounting.
This DC/DC converter is ideal for industrial controls, railway systems, battery operated devices, power supplies, and other demanding applications requiring reliable isolated power conversion in a compact and rugged package. Its wide input range and robust features allow stable operation under varying supply conditions and harsh ambient temperatures.
Explore the TRACOPOWER DC/DC Converter range on EnvMart for advanced power conversion solutions designed for reliability and industrial performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 200W.
It features an ultra-wide input voltage range from 43V to 160V.
The output voltage is 22.4V.
This unit supports five outputs with an output voltage adjustment range from -20% to +10%.
The efficiency rating is 89%.
It operates from a minimum temperature of -40°C up to a maximum of 90°C, with power derating above 70°C.
The isolation voltage is rated at 2250 VDC.
The mean time between failures (MTBF) is rated at 270,000 hours.
It incorporates input protection filters and under voltage lockout protection.
The dimensions are 88.9mm in length and 101.6mm in depth.
Yes, it is approved for railway applications and industrial use without PCB mounting capability.
It is constructed in a rugged sealed metal case for excellent thermal convection and durability.
